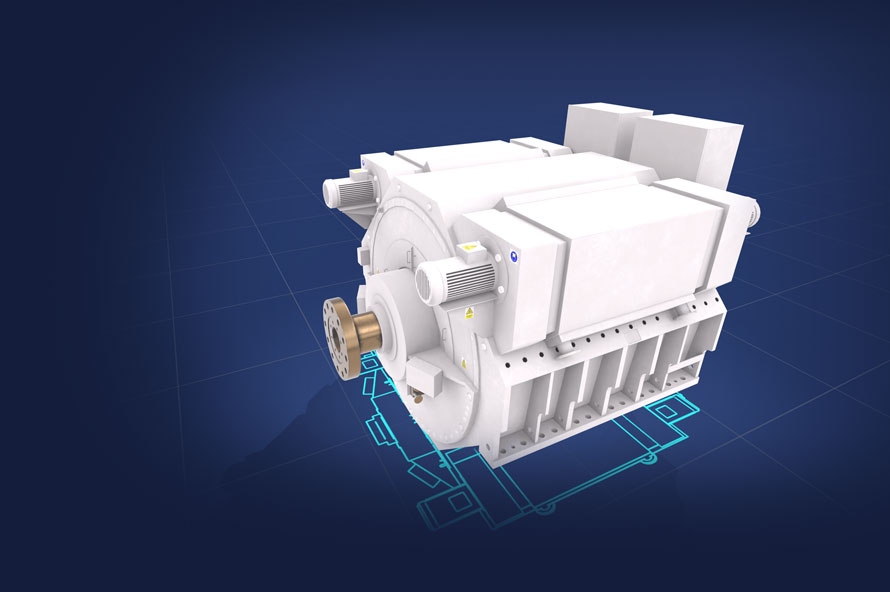

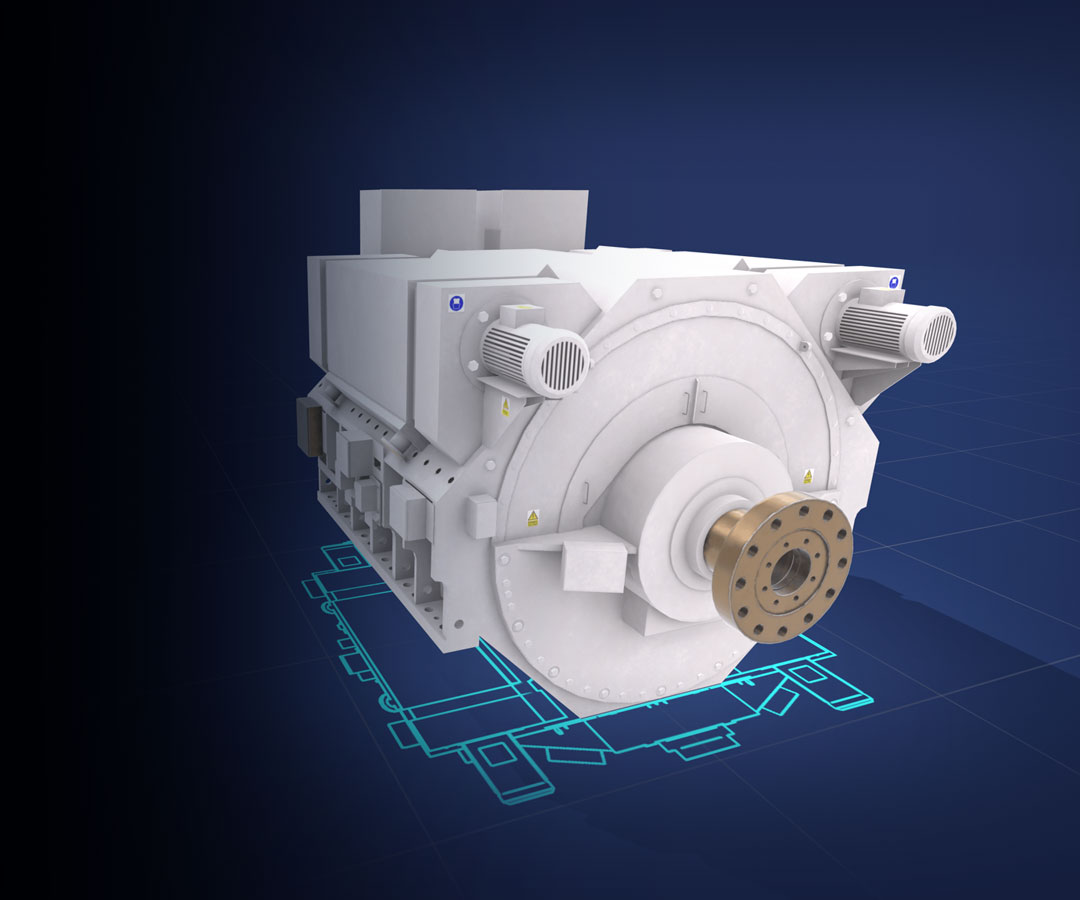

Advanced Induction Motor (AIM) for Naval Marine Electric Ships

Power Conversion’s Advanced Induction Motor (AIM) solution is a multi-phase, power-dense induction motor specifically configured for naval marine propulsion applications.

GE
PRODUCT FEATURES

• An electric motor to meet high voltage, reliability and ruggedness requirements of naval marine performance standards.

• 5-40MW power range, proven on up to 80MW propulsion system; speed range up to 200rpm.

• Features include built-in redundancy (combined with Power Conversion’s multi-channel VDM25000 inverter system), high packing density and shock mitigation capability.

Proven Technology:

  • Proven in harsh environments, and specific for naval applications.

  • Power Conversion’s structured naval product, with closed air to closed water cooling circuit.

  • Built on a century of know-how and experience.

  • Certified by marine classification societies and built to IEC standards.
General Electric
General Electric

Compact Configuration:

  • Compact configuration flange mounted, self-lubricating bearings.

  • Proven robust squirrel cage induction motor configuration with easily removable items for serviceability, improved maintainability and reliability.

  • High and low speed, high torque operation.
General Electric

Low Noise:

  • Integrated operation with VDM25000 converter for high power density, resilience and quiet mode capability
General Electric

High Redundancy:

  • Multi-phase winding arrangement for high redundancy and economical operation.

  • Major components and full machine shock rated, validated by analysis and testing of key components
