Two Clusters, Two Nodes Each

One of the environments supported and validated for server clustering is two clusters with two nodes each.

The following figures show examples of two application servers with two Workflow engines, in separate clusters, and two application servers with two User servers, in separate clusters, respectively.

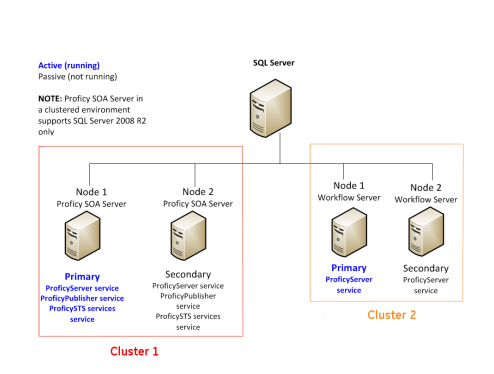

Figure 1. Two Application servers and two Workflow engines, in separate clusters

Each application server must run the Proficy Server, Proficy Publisher Service, and Proficy STS services. Each Workflow engine must run the Proficy Server service.

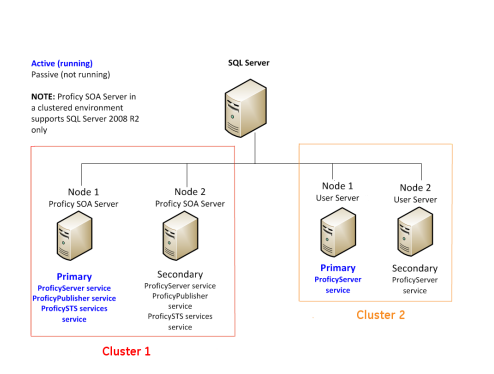

Figure 2. Two Application servers and two User servers, in separate clusters

Each application server must run the Proficy Server, Proficy Publisher Service, and Proficy STS services. Each User server must run the Proficy Server service.
