Three Clusters, Two Nodes Each

One of the environments supported and validated for server clustering is three clusters with two nodes each.

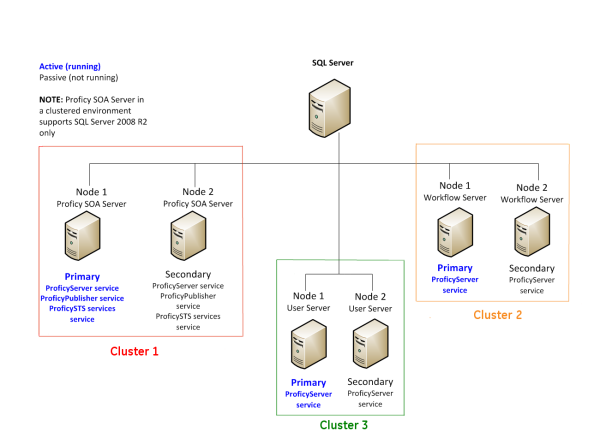

The following figure shows an example of two application servers, two Workflow engines, and two User servers, each in its own cluster. Each application server must run the Proficy Server, Proficy Publisher Service, and Proficy STS services. Each Workflow engine and each User server must run the Proficy Server service.

Figure 1. Two Application servers, two Workflow engines, and two User servers, in separate clusters
