One Cluster, Two Nodes

One of the environments supported and validated for server clustering is a single cluster with two nodes.

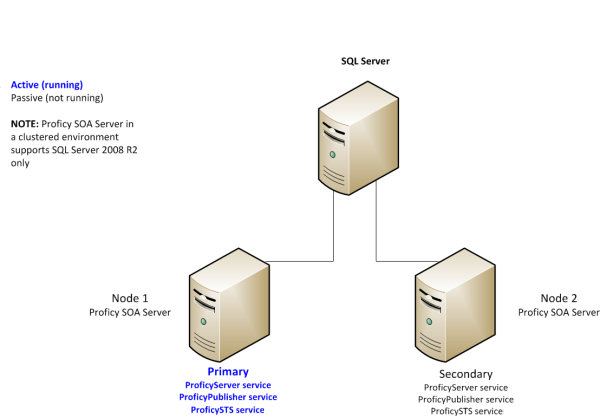

The following figure shows an example of two application servers in one cluster. Each application server must run the Proficy Server, Proficy Publisher Service, and Proficy STS services.

Figure 1. Two Application servers in a single cluster
