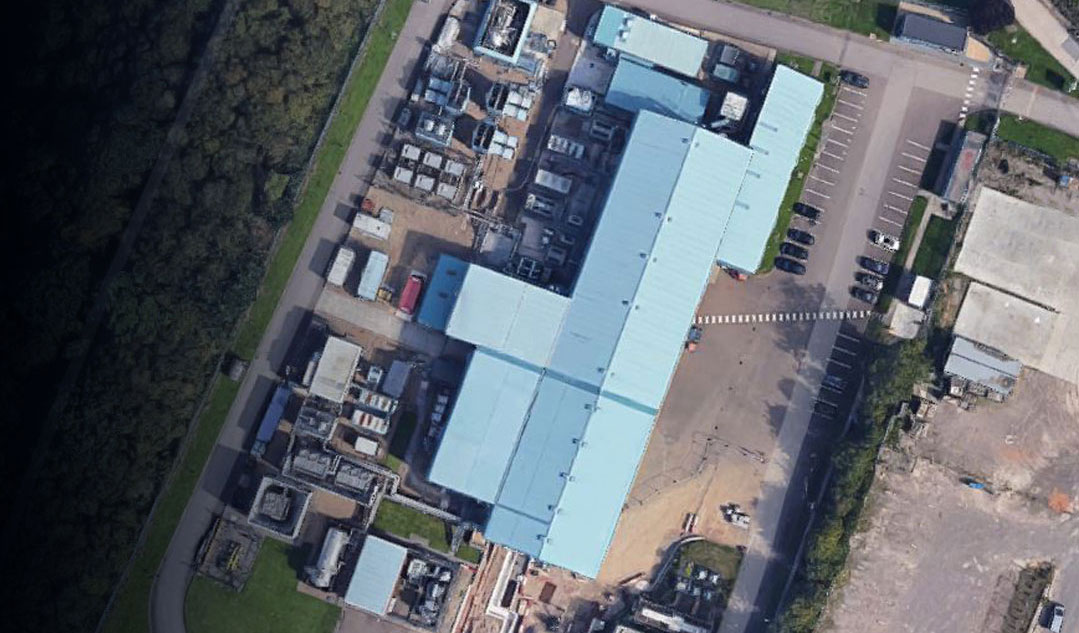

At the heart of Power Conversion’s Marine business lies a 4.5 acre, dedicated, full power, land-based test facility. The Marine Power Test Facility plays a crucial role in de-risking present and future power and propulsion technologies, systems and from product development and verification through to complete, full-scale integrated power and propulsion systems.

GE
General Electric

MPTF is the only commercial land-based facility in the world that is capable of full-scale testing of complete integrated naval power and propulsion systems from ship fit prime movers through to propulsion at up to 20MWscale.

General Electric

With full-scale system validation, the emphasis is on system integration issues and interfaces, not just individual equipment stand-alone performance. That includes testing and emulating third party equipment alongside equipment. The facility to do this at full scale and load emulation adds value and can reduce schedules and costs by putting equipment through its paces ahead of ship-fit and sea trials.

Extensive lifecycle capabilities

  1. New power and energy technology demonstration, including new ‘clean ship’ technologies.
  2. High power equipment proving and design validation
  3. Pre-production validation, endurance and type testing
  4. Full scale system validation, emphasis on system integration issues and not just individual equipment stand-alone performance.
  5. Training for crews on real equipment
  6. Technology insertion, upgrades and obsolescence services
  7. Post-production work
  8. Fault finding and diagnostics
  9. N&V testing
General Electric

Selected for major programs

General Electric

The power test facility was originally conceived out of the Electric Ship Technology Demonstrator (ESTD) in 2001 to provide de-risking for Integrated Full Electric Propulsion (IFEP) concepts for Naval platforms. Over the past 14 years the capability of the facility has grown to become a key asset in de-risking all aspects of Marine power and propulsion technologies and other industries for us and our customers. Power Conversion is a world leader in designing, providing, and running land based marine test facilities and four quadrant propulsion load emulators.

Some of the most onerous tests yet undertaken on a marine power system have been performed by Power Conversion on this site, including full HV and LV short circuits, bad synchronizations of 20MW prime movers and full power ahead to astern crash reversals on full scale ship fit equipment. With full power systems and emulators for HV IFEP systems, hybrid, PTO/PTI, energy storage, DC and other common architectures within the portfolio. Alongside other activities the facility presently provides a key role in supporting key Maritime platforms with dedicated test beds for the major naval ship programs including, QE Class Aircraft Carrier, Type 45, Type 26, Tide Class tankers and future submarines.

Test Facility Infrastructure includes:

Power and Generation

Diesel Generators, large grid supply, rotary, and static frequency converters. (Infrastructure for GT’s), Prime mover dynamic emulators.

Electrical Distribution

HV and LV from 33KV, 11kV, 4160 V, 800 –High voltage VDC 690V and 440 VAC 50 and 60Hz supplies along with capability to provide other supplies to meet specific application needs.

Propulsion and Motor Drive Train Systems

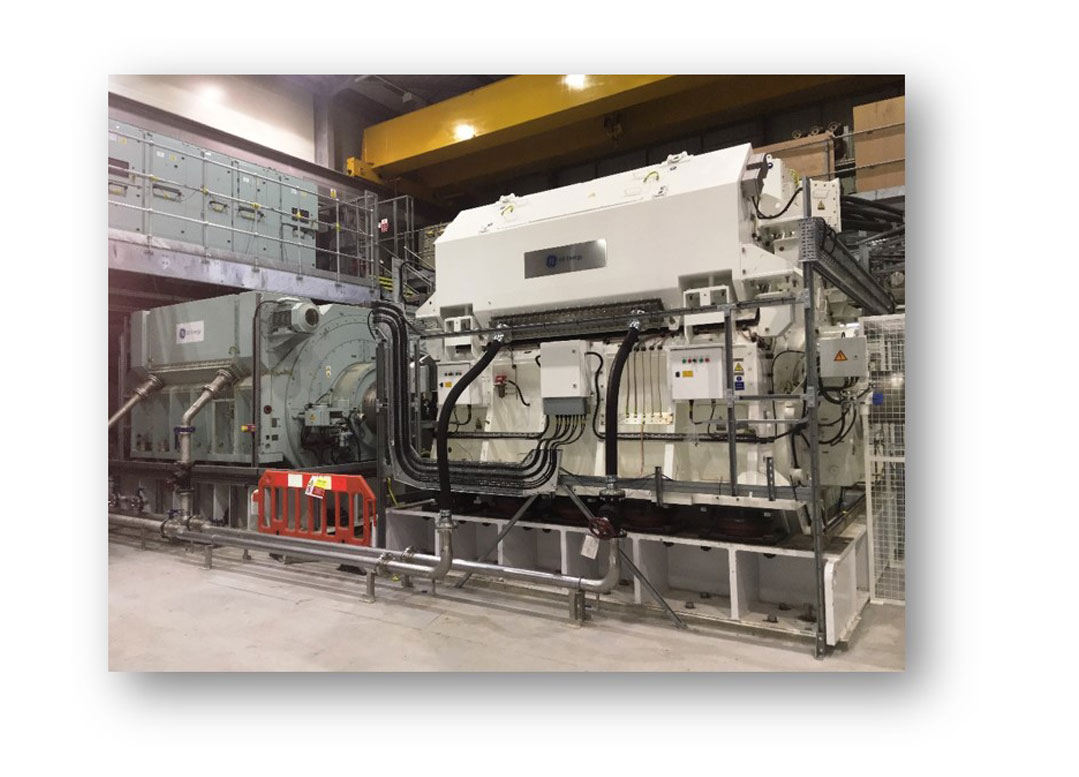

From a 20 MW Advanced Induction Motor through to the smallest motors.

Power Conversion

20MW VDM25000 15 phase Naval Converter, other Medium Voltage VSI’s through to a range of multi-MW LV AFE MV3000 Converters and other power electronic conversion systems.

Loads

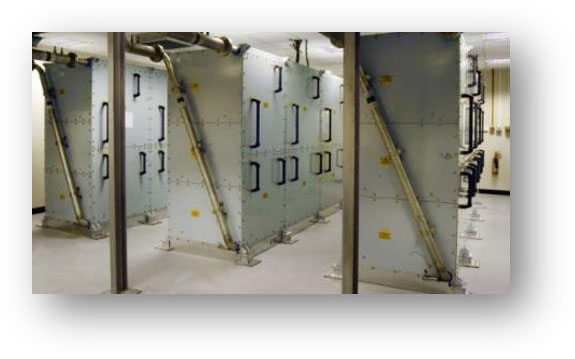

The facility hosts an impressive array of load capabilities including over 30MW worth of permanently installed load banks, both resistive , reactive, and dynamic. Alongside this, the facility hosts Four Quadrant Load (4QL) emulators to mimic required propulsion characteristics as if the system were at sea. With the capability to adapt and re-configure to suit various other testing needs.

Automation

Plant-wide automation system and control rooms, alongside dedicated fast data acquisition systems for a wide range of plant control, monitoring, and analysis needs. With the capability to incorporate third party automation systems specific to the system under test.

Other Features

Capability to dissipate up to 20MW in existing site cooling system, large diesel tankage, HP snf LP air, 80MW gas supply available, oil and grease storage and overhead crane facility. office space, meeting rooms and welfare facilities.

Stories

U.S. Navy Awards Contract to Power Conversion for Military Sealift Command Vessel Maintenance, Potentially Worth $125MM

Power Conversion to Provide Propulsion Systems for the new French Navy Logistic Support Ships

Davie Polar Icebreaker Program Confirms GE as Strategic Partner

Power Conversion to Supply Power and Propulsion Systems for US Maritime Administration National Security Multi-Mission Vessel

Power Conversion to Provide Electric Propulsion Systems to Royal Netherlands Navy new Combat Support Ship

Royal Canadian Navy’s First Arctic and Offshore Patrol Ship (AOPS), HMCS Harry DeWolf - Powered by Power Conversion

Power Conversion Powers US Navy’s 1st Full-Electric Power and Propulsion Ship

Power Conversion Supports Engineering Excellence in the UK

Power Conversion & Hanwha Aerospace Sign MOU to bring Full Electric Propulsion to Republic of Korea’s KDDX Destroyer Program

Successful Sea Trial of UK’s Aircraft Carrier, HMS Prince of Wales, Powered by Power Conversion’s Propulsion Technology

World Leader in Naval Electric Drive Power and Propulsion

Power Conversion’s Marine Solutions Showcases Power, Propulsion and Digital Analytics, Ideal for Future Surface Combatants

Power Conversion to Support Royal Navy Type 45 Fleet Update to Enhance Its Power Resilience

Power Conversion Signs Digital Contract with Military Sealift Command to Improve Mission Readiness

T45

View Case Study

GCS

View Case Study

Marine Systems portfolio

General Electric

Seagreen Energy Storage

Modern marine power systems require solutions to meet the industry’s drive towards decarbonization while still meeting challenging performance and class society criteria. These requirements challenge the marine industry to reduce emissions and improve fuel efficiency.

More Info
General Electric

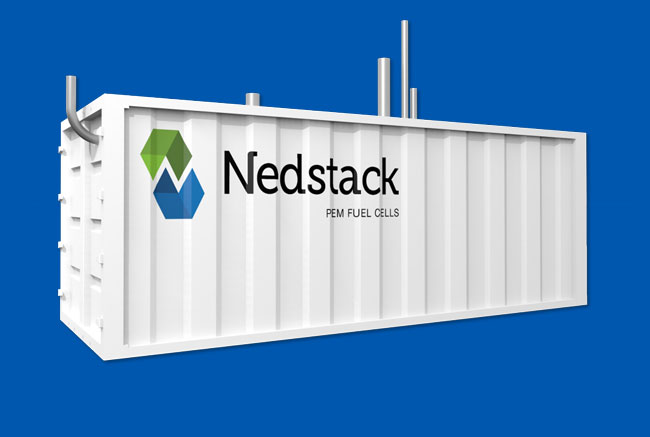

Seagreen Fuel Cell Systems
