Risk Based Inspection 581

Deploy RBI 581 for the First Time

Before You Begin

The following table outlines the steps that you must complete to deploy and configure this module for the first time. These instructions assume that you have completed the steps for deploying the basic system architecture.

These tasks may be completed by multiple people in your organization. GE Vernova recommends, however, that the tasks be completed in the order in which they are listed.

Results


Step	Task	Notes
1	Review the RBI data model to determine which relationship definitions you will need to modify to include your custom equipment and location families. Via Configuration Manager, modify the relationship definitions as needed.	This step is required only if you store equipment and location information in families other than the baseline Equipment and Functional Location families.
2	Assign Security Users to one or more of the Security Roles used in RBI.	This step is required.
3	Add the following types of RBI 581 users to at least one >TM Security Group: Users who are responsible for completing the steps necessary to use TM Analysis values to calculate RBI 581 corrosion rates. Users who should be able to navigate to TM via RBI 581.	This step is required only if you are using the integration between the RBI 581 and Thickness Monitoring modules
4	Select the Is a Unit? check box in Functional Location records that represent units in your facility.	This step is required, and marks Functional Location records as Process Units.
5	Using the Belongs to a Unit relationship, link Equipment records to Functional Location records representing units to which that equipment belongs (the Is a Unit? check box is selected).	This step is optional.

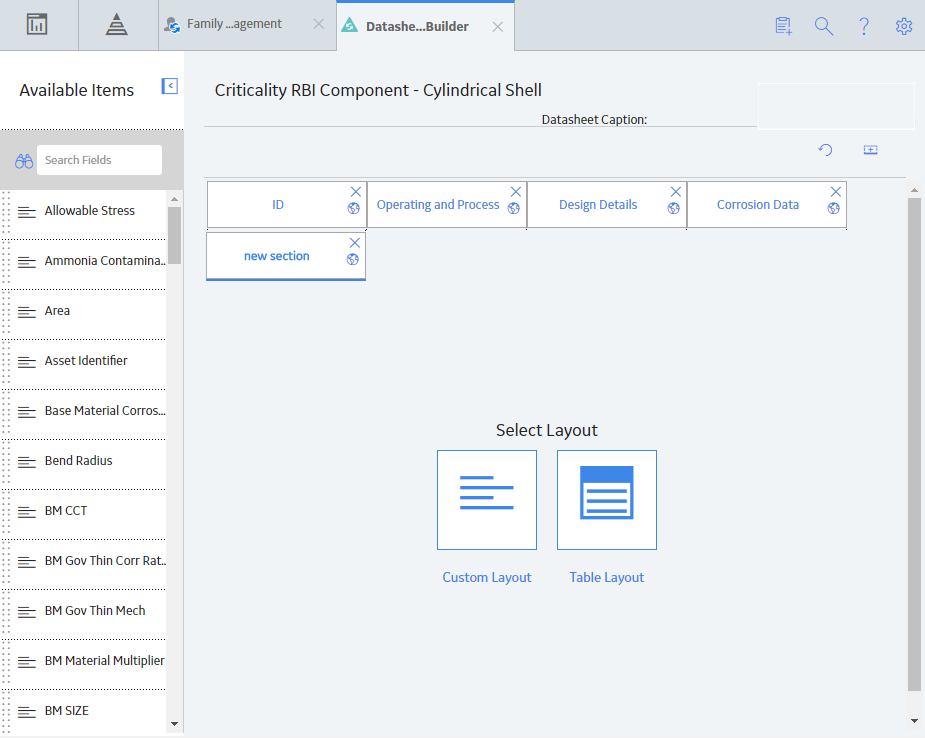

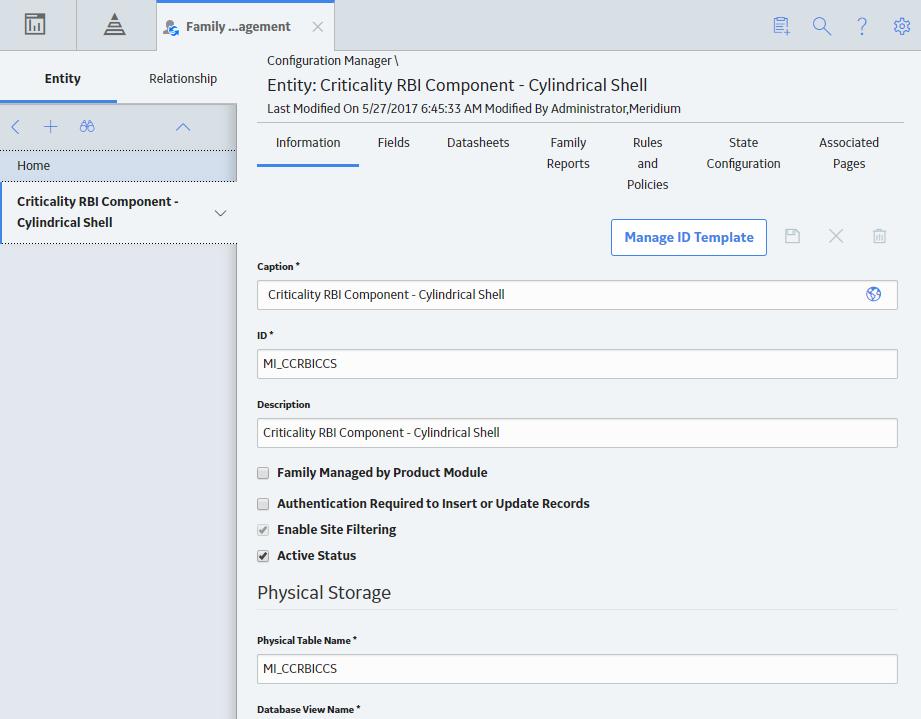

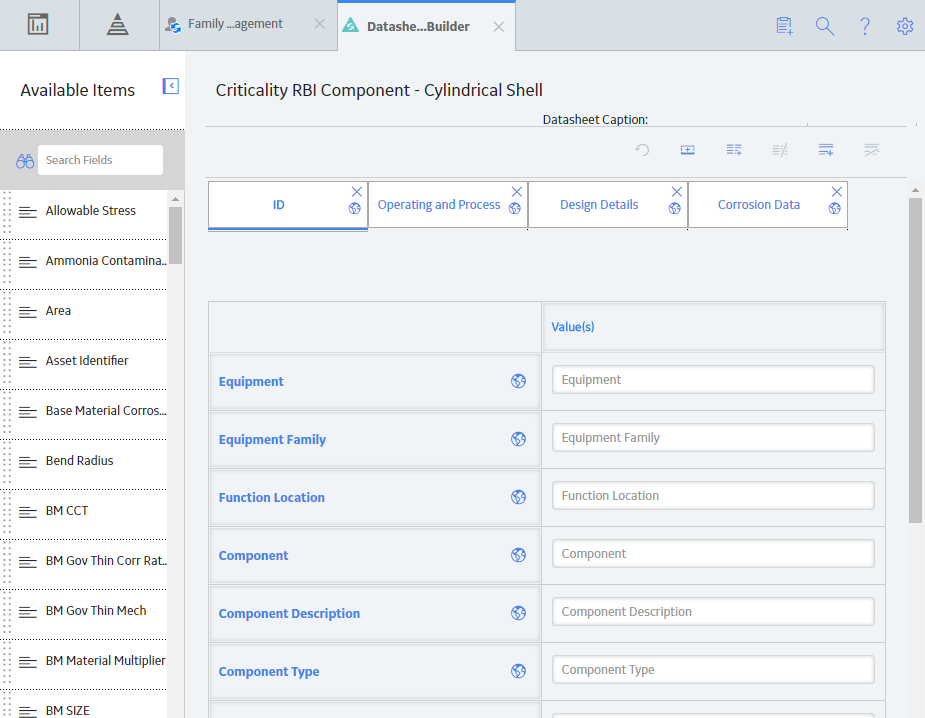

6	Add the RBI-581 tab to the datasheet of the following families: Criticality RBI Component - Cylindrical Shell Criticality RBI Component - Exchanger Bundle Criticality RBI Component - Exchanger Header Criticality RBI Component - Exchanger Tube Criticality RBI Component - Piping Criticality RBI Component - Tank Bottom	This step is required only for families for which you have customized the datasheet.
7	Using Configuration Management, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4030000\4030000\20_IEU\50_Other\2_RecordsLinks folder: 06_MI_DATA_GRP.xml 07_MI_MPPG_QRY.xml 08_MI_CLMND_PR.xml	This step is required only if you are deploying RBI 581 on an existing database. This will create data mappings between families in RBI 581. Important: These data mapping records are used in RBI 581 and Risk Based Inspection. After you complete this step, all existing changes to data mapping in the RBI 581 and Risk Based Inspection will be reverted to baseline. All customization for data mappings will be lost. Do not perform this step unless your organization will be satisfied with the baseline data mappings, or you are prepared to customize the records again following the execution of the script.
8	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4030000\4030000\20_IEU\50_Other\2_RecordsLinks folder: 101_MI_STMPCNFG.xml 102_MI_STRMAPP.xml	This step is required. This will update the RBI Strategy Mapping Composite entities, overwriting the existing ones.
9	Update Risk Matrix Mappings and Policies to account for overridden financial consequence for RBI 581 Risk Analyses.	The Operations Category on the Risk Matrix does not account for overridden financial consequence for RBI 581 Risk Analyses. If you are using this feature, you are required to update your Risk Matrix Mappings and Policies by following KBA 000041235.
10	Add RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you want to use additional RBI Component type records that are not provided in the baseline APM database.
11	On the APM Server, restart Redis.	This step is required, and has to be performed after you complete all the previous steps.
12	On the APM Server, reset IIS.	This step is required, and has to be performed after you complete all the previous steps.

Upgrade or Update RBI 581 to V4.6.10.0.0

Before You Begin

The following tables outline the steps that you must complete to upgrade this module to V4.6.10.0.0. These instructions assume that you have completed the steps for upgrading the basic APM system architecture.

These tasks may be completed by multiple people in your organization. We recommend, however, that the tasks be completed in the order in which they are listed.

After you upgrade from a version prior to 4.3.1:

All RBI Assets with Active Analyses will have a related Inspection Plan record created.
All RBI recommendations which are not in the Archived state for an RBI Asset with Active Analyses will be related to Inspection Plan record of the RBI Asset.
The state caption for RBI Recommendation family with State ID MI_ACCEPTED will be updated to Approved.
The Recommendation Methodology field on RBI Recommendation will be updated to RBI 581 where previously the field had the value RBI 581 Recommendation.
All security users who belong to the MI RBI Analyst security group will belong to the MI Inspection Plan Approver security role.
The MI Inspection Plan Approver security role will have the MI ASM Analyst security group assigned.
Piping Stress updated
- In some of the Piping Stress records for B31.3, WPB was misspelled as WFB. These records are now updated based on ASME standards.
- In some of the Piping Stress records for B31.3 and B31.1 for the year 2014, where the Material Specification field contained the value B366 and B622, the Material Grade had the value NS instead of N/A. These records are now updated based on ASME standards.
The following new RBI 581 Representative Fluids will be added to match the API 581, 3rd Edition, Addendum 1 specification:
- Acid-LP
- Acid-MP
- Acid-HP
- C1-C2
- C3-C4
- C6-C8
- C9-C12
For information on the new RBI 581 Representative Fluid Contents, refer to the RBI 581 Representative Fluids topic.
RBI 581 Representative Fluid contents will be updated for the following fluids to match the API 581, 3rd Edition, Addendum 1 specification:
- C13-16 (Diesel)
- C17-25 (Gas Oil)
- C25+ (Resid)
- C5
- Chlorine
- CO
- EO
- H2
- H2O (Water)
- H2S
- HCl
- HF
- MEOH (Methanol)
- NH3
- Phosgene
- Steam
For information on the updated RBI 580 Representative Fluid Contents, refer to the RBI 581 Representative Fluids topic.
RBI 581 Representative Fluid content will be updated for the following families to match the API 581, 3rd Edition, Addendum 1 specification:
- Component Damage Flammable
- Toxic Release Constants HFH2S
- Toxic Cons Eq Constant
- Toxic Cons Eq Misc Chem

Procedure

Upgrade from any version V4.6.0.0.0 through V4.6.9.0.0


Step	Task	Notes
1	Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.
2	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.
3	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder. Equipment Outside Risk Policy PendingRecommendations RBI 581 Assets Mitigation Overview Query RBI 581 Assets Not Mitigated Query RBI 581 With Plan Analyses Report RBI 581 Without Plan Analyses Report RBI Risk Matrix Query RiskMatrix Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder. Active Analyses for Evergreening – 581 Analyses Created For Evergreening – 581 Analyses Ready For Evergreening – 581 Asset Corrosion Analysis More Current Than RBI 581 Analyses Assets with No Recommendations (581 Only) Inspections More Current Than RBI 581 Analysis RBI Components for Inventory Group Analyses Ready For Evergreening for Unit - 581 Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder. RBI 581 Asset Risk-Components RBI 581 Asset Risk-Corrosion Analysis RBI 581 Asset Risk-Degradation Mechanisms RBI 581 Asset Risk-Equipment Data RBI 581 Asset Risk-Inspection History RBI 581 Asset Risk-RBIRecommendations RBI 581 Asset Risk-RefDocuments RBI 581 Asset Risk-RiskTargetsResults Public\Meridium\Modules\Risk Based Inspection\Queries folder. Asset Corrosion Analysis More Current Than All Analyses Asset Counts for Units Assets with No Recommendations Current Risk Current Risk Overview Inspections More Current Than All Analysis Past Risk Past Risk Overview RBI Asset Risk Query RBI Assets for a Functional Location RBI Components for Unit Select Protected Assets Select RBI Components View Protected RBI Components Review Analyses by Asset Review Analyses by Asset 581 Review Analyses by Corrosion Loop Review Analyses by Corrosion Loop 581 Process Unit Query	This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.
4	Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids.	This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.
5	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Risk Based Inspection\Queries folder. Inspections More Current Than All Analysis Public\Meridium\Modules\Risk Based Inspection -581\Queries folder. Inspections More Current Than RBI 581 Analysis	This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.
6	Update PV Stress content and stress lookup fields for RBI 581 Risk Analyses in created state.	This step is required only if you want to use the Pressure Vessel stress content with updated Material Grade in accordance with Tables 1A and 1B of ASME Section II, Part D, 2010. For more information, refer to KBA 000051571.
7	Update PV Stress content and calculate Flow Stress for RBI 581 Risk Analyses in created state with Design Code ASME VIII DIV 1 and Code Year 1998.	This step is required only if you want to use the Pressure Vessel stress content with updated Minimum Tensile Strength and Minimum Yield Strength for Design Code ASME VIII DIV 1 and Code Year 1998, to calculate the Flow Stress. For more information, refer to KBA 000059269.

Upgrade from any version V4.5.0.0.0 through V4.5.0.0.21


Step	Task	Notes
1	Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.
2	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.
3	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder. Equipment Outside Risk Policy PendingRecommendations RBI 581 Assets Mitigation Overview Query RBI 581 Assets Not Mitigated Query RBI 581 With Plan Analyses Report RBI 581 Without Plan Analyses Report RBI Risk Matrix Query RiskMatrix Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder. Active Analyses for Evergreening – 581 Analyses Created For Evergreening – 581 Analyses Ready For Evergreening – 581 Asset Corrosion Analysis More Current Than RBI 581 Analyses Assets with No Recommendations (581 Only) Inspections More Current Than RBI 581 Analysis RBI Components for Inventory Group Analyses Ready For Evergreening for Unit - 581 Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder. RBI 581 Asset Risk-Components RBI 581 Asset Risk-Corrosion Analysis RBI 581 Asset Risk-Degradation Mechanisms RBI 581 Asset Risk-Equipment Data RBI 581 Asset Risk-Inspection History RBI 581 Asset Risk-RBIRecommendations RBI 581 Asset Risk-RefDocuments RBI 581 Asset Risk-RiskTargetsResults Public\Meridium\Modules\Risk Based Inspection\Queries folder. Asset Corrosion Analysis More Current Than All Analyses Asset Counts for Units Assets with No Recommendations Current Risk Current Risk Overview Inspections More Current Than All Analysis Past Risk Past Risk Overview RBI Asset Risk Query RBI Assets for a Functional Location RBI Components for Unit Select Protected Assets Select RBI Components View Protected RBI Components Review Analyses by Asset Review Analyses by Asset 581 Review Analyses by Corrosion Loop Review Analyses by Corrosion Loop 581 Process Unit Query	This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.
4	Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids.	This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.
5	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Risk Based Inspection\Queries folder. Inspections More Current Than All Analysis Public\Meridium\Modules\Risk Based Inspection -581\Queries folder. Inspections More Current Than RBI 581 Analysis	This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.
6	Update PV Stress content and stress lookup fields for RBI 581 Risk Analyses in created state.	This step is required only if you want to use the Pressure Vessel stress content with updated Material Grade in accordance with Tables 1A and 1B of ASME Section II, Part D, 2010. For more information, refer to KBA 000051571.
7	Update PV Stress content and calculate Flow Stress for RBI 581 Risk Analyses in created state with Design Code ASME VIII DIV 1 and Code Year 1998.	This step is required only if you want to use the Pressure Vessel stress content with updated Minimum Tensile Strength and Minimum Yield Strength for Design Code ASME VIII DIV 1 and Code Year 1998, to calculate the Flow Stress. For more information, refer to KBA 000059269.

Upgrade from any version V4.4.0.0.0 through V4.4.0.0.16.


Step	Task	Notes
1	Revert the following Risk Based Inspection 581 queries to baseline: Public/Meridium/Modules/RBI 581/Queries/Active Analyses for Evergreening - 581 Public/Meridium/Modules/RBI 581/Queries/Analyses Created for Evergreening - 581	This step is required if you have modified any of the following queries: Active Analyses for Evergreening – 581 Analyses Created for Evergreening - 581 Note: If you have not modified any of the above-mentioned queries, you do not have to complete this step for the specified query.
2	Update RBI 581 Risk Analyses or RBI Components that have a Storage Tank Bottom as the Component Type and a related RBI Component family other than Criticality RBI Component – Tank Bottom.	This step is required if you have RBI 581 Risk Analyses with the Component Type field set to Storage Tank Bottom and the related RBI Component family is not Criticality RBI Component - Tank Bottom. Note: RBI 581 Analyses now performs AST Shell calculations for a Component Type defined as Storage Tank regardless of the related RBI Component family. Also, an RBI 581 Risk Analyses calculation will display a validation error message if the Component Type field value on the RBI Analysis is set to Storage Tank Bottom and the related Component Family is not Criticality RBI Component -Tank Bottom. You can verify the existence of these analyses by running the following query: `SELECT DISTINCT [MI_581RANAL].[MI_AN_ANALY_ID_CHR] "Analysis ID" , [MI_CCRBICOM].[MI_RBICOMPO_COMPO_C] "Component" FROM [MI_CCRBICTB], [MI_581RANAL] JOIN {MIR_RBICRAN} ON [MI_581RANAL].ENTY_KEY = {MIR_RBICRAN}.SUCC_ENTY_KEY JOIN [MI_CCRBICOM] ON {MIR_RBICRAN}.PRED_ENTY_KEY = [MI_CCRBICOM].ENTY_KEY WHERE ([MI_CCRBICOM].FMLY_KEY <> [MI_CCRBICTB].FMLY_KEY AND [MI_581RANAL].[MI_CRITANAL_COMP_TP_C] = 'Storage Tank Bottom')` For more information, access the KBA 000059408.
3	Recalculate the RBI 581 Risk Analyses where the values for Initial Fluid Phase and Release Fluid Phase fields differ.	This step is required if you have RBI 581 Risk Analyses having different values for Initial Fluid Phase and Release Fluid Phase fields. For more information, access KBA 000060392.
4	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Piping.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Piping. For more information, access KBA 000060763.
5	Update records for ALCL3 in Toxic Consequence Equation Miscellaneous Chemicals table.This step is required if you have RBI 581 Risk Analyses on AST	This step is required if you have RBI 581 Risk Analyses on AST Shell component having ALCL3 as toxic fluid. For more information, access the KBA 000059939.
6	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder. Equipment Outside Risk Policy PendingRecommendations RBI 581 Assets Mitigation Overview Query RBI 581 Assets Not Mitigated Query RBI 581 With Plan Analyses Report RBI 581 Without Plan Analyses Report RBI Risk Matrix Query RiskMatrix Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder. Active Analyses for Evergreening – 581 Analyses Created For Evergreening – 581 Analyses Ready For Evergreening – 581 Asset Corrosion Analysis More Current Than RBI 581 Analyses Assets with No Recommendations (581 Only) Inspections More Current Than RBI 581 Analysis RBI Components for Inventory Group Analyses Ready For Evergreening for Unit - 581 Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder. RBI 581 Asset Risk-Components RBI 581 Asset Risk-Corrosion Analysis RBI 581 Asset Risk-Degradation Mechanisms RBI 581 Asset Risk-Equipment Data RBI 581 Asset Risk-Inspection History RBI 581 Asset Risk-RBIRecommendations RBI 581 Asset Risk-RefDocuments RBI 581 Asset Risk-RiskTargetsResults Public\Meridium\Modules\Risk Based Inspection\Queries folder. Asset Corrosion Analysis More Current Than All Analyses Asset Counts for Units Assets with No Recommendations Current Risk Current Risk Overview Inspections More Current Than All Analysis Past Risk Past Risk Overview RBI Asset Risk Query RBI Assets for a Functional Location RBI Components for Unit Select Protected Assets Select RBI Components View Protected RBI Components Review Analyses by Asset Review Analyses by Asset 581 Review Analyses by Corrosion Loop Review Analyses by Corrosion Loop 581 Process Unit Query	This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.
7	Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids.	This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.
8	Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.
9	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.
10	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Risk Based Inspection\Queries folder. Inspections More Current Than All Analysis Public\Meridium\Modules\Risk Based Inspection -581\Queries folder. Inspections More Current Than RBI 581 Analysis	This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.
11	Update PV Stress content and stress lookup fields for RBI 581 Risk Analyses in created state.	This step is required only if you want to use the Pressure Vessel stress content with updated Material Grade in accordance with Tables 1A and 1B of ASME Section II, Part D, 2010. For more information, refer to KBA 000051571.
12	Update PV Stress content and calculate Flow Stress for RBI 581 Risk Analyses in created state with Design Code ASME VIII DIV 1 and Code Year 1998.	This step is required only if you want to use the Pressure Vessel stress content with updated Minimum Tensile Strength and Minimum Yield Strength for Design Code ASME VIII DIV 1 and Code Year 1998, to calculate the Flow Stress. For more information, refer to KBA 000059269

Upgrade from any version V4.3.0.0.0 through V4.3.1.0.11.

Step Task Notes

1 Add the Completion Comments field to the RBI Recommendation datasheet. This step is required only if you have customized the RBI Recommendation datasheet.

Add the following state and operations to RBI Recommendation State Management:

Table 1. State
State ID	State Caption
MI_NOTREQUIRED	Not Required

Table 2. Operations
Operation ID	Operation Caption	Predecessor State	Successor State
MI_NRQARCHIVED	Archive	Not Required	Archived
MI_MARKNOTREQUIRED	Mark Not Required	Proposed	Not Required

For information on adding State and Operation to a family, refer to the Family Management documentation.

This step is required because the State Machine for RBI Recommendation is not updated automatically if the RBI Recommendation family has records.

Using the Query tool, run the following query:

UPDATE  [MI_RMMPG]
SET [MI_RMMPG].[MI_RMMPG_SOURCE_FLD_C] = 'MI_RBDEMECH_TOTAL_PF_RBI_DTE_N'
WHERE [MI_RMMPG].[MI_RMMPG_SOURCE_FLD_C] = 'MI_RBDEMECH_POF_N'

This step is required. This will update the RBI Risk Matrix Mapping records such that the Total POF - RBI Date value is used to plot probability of failure (POF) on the risk matrix, instead of the Total POF With Plan value.

Important:

This step is only applicable to version 4.3.0.0.0 or if you have modified the RBI Risk Matrix Mapping family.
After you complete this step, any customization done on the POF data mapping will be lost. Do not perform this step unless your organization will be satisfied with the baseline data mappings, or you are prepared to customize the records again following the execution of the query.

Revert the following Process Units overview queries to baseline:

Public/Meridium/Modules/Risk Based Inspection/Queries/Asset Counts for Units
Public/Meridium/Modules/Risk Based Inspection/Queries/Process Unit Query

This step is required only if you have modified the following queries that are used for the Process Units tab in the Risk Based Inspection Overview page:

Asset Counts for Units
Process Unit Query

5 Update Risk Matrix Mappings and Policies to account for overridden financial consequence for RBI 581 Risk Analyses. The Operations Category on the Risk Matrix does not account for overridden financial consequence for RBI 581 Risk Analyses. If you are using this feature, you are required to update your Risk Matrix Mappings and Policies by following KBA 000041235.

Revert the following Risk Based Inspection 581 queries to baseline

Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder.
- Equipment Outside Risk Policy
- PendingRecommendations
- RBI 581 Assets Mitigation Overview Query
- RBI 581 Assets Not Mitigated Query
- RBI 581 With Plan Analyses Report
- RBI 581 Without Plan Analyses Report
- RBI Risk Matrix Query
- RiskMatrix
Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder.
- Active Analyses for Evergreening – 581
- Analyses Created For Evergreening – 581
- Analyses Ready For Evergreening – 581
- Asset Corrosion Analysis More Current Than RBI 581 Analyses
- Assets with No Recommendations (581 Only)
- Inspections More Current Than RBI 581 Analysis
- RBI Components for Inventory Group
- Analyses Ready For Evergreening for Unit - 581
Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder.
- RBI 581 Asset Risk-Components
- RBI 581 Asset Risk-Corrosion Analysis
- RBI 581 Asset Risk-Degradation Mechanisms
- RBI 581 Asset Risk-Equipment Data
- RBI 581 Asset Risk-Inspection History
- RBI 581 Asset Risk-RBIRecommendations
- RBI 581 Asset Risk-RefDocuments
- RBI 581 Asset Risk-RiskTargetsResults
Public\Meridium\Modules\Risk Based Inspection\Queries folder.
- Asset Corrosion Analysis More Current Than All Analyses
- Asset Counts for Units
- Assets with No Recommendations
- Current Risk
- Current Risk Overview
- Inspections More Current Than All Analysis
- Past Risk
- Past Risk Overview
- RBI Asset Risk Query
- RBI Assets for a Functional Location
- RBI Components for Unit
- Select Protected Assets
- Select RBI Components
- View Protected RBI Components
- Review Analyses by Asset
- Review Analyses by Asset 581
- Review Analyses by Corrosion Loop
- Review Analyses by Corrosion Loop 581
- Process Unit Query

This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.

7 Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids. This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.

Using Configuration Manager, import the following files located in the

C:\Meridium\DbUpg\MI_DB_MASTER_4050100\4050100\_IEU_ManualImports folder.
- MI_PRL_CNS0.xml
- MI_REPFLUID_581.xml
- MI_CMT_FLE0.xml

This step is required only if you have modified the properties of any of the 580 Representative fluids:

Acid
Acid-HP
Acid-LP
Acid-MP
ALCL3
C13-16 (Diesel)
C17-25 (Gas Oil)
C1-C2
C25+ (Resid)
C3-C4
C5
C6
C6-C8
C9-C12
CO
DEE
EE
EEA
EG
EO
H2
H2O (Water)
H2S
HCl
HF
MEOH (Methanol)
NH3
Nitric Acid
NO2
Phosgene
PO
Pyrophoric
Steam
Styrene (Aromatic)
TD

9 Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table. This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.

10 Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head. This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.

Revert the following Risk Based Inspection 581 queries to baseline

Public\Meridium\Modules\Risk Based Inspection\Queries folder.
- Inspections More Current Than All Analysis
Public\Meridium\Modules\Risk Based Inspection -581\Queries folder.
- Inspections More Current Than RBI 581 Analysis

This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.

12 Update PV Stress content and stress lookup fields for RBI 581 Risk Analyses in created state. This step is required only if you want to use the Pressure Vessel stress content with updated Material Grade in accordance with Tables 1A and 1B of ASME Section II, Part D, 2010. For more information, refer to KBA 000051571.

13 Update PV Stress content and calculate Flow Stress for RBI 581 Risk Analyses in created state with Design Code ASME VIII DIV 1 and Code Year 1998. This step is required only if you want to use the Pressure Vessel stress content with updated Minimum Tensile Strength and Minimum Yield Strength for Design Code ASME VIII DIV 1 and Code Year 1998, to calculate the Flow Stress. For more information, refer to KBA 000059269

Upgrade from any version V4.2.0.0 through V4.2.0.9.5.


Step	Task	Notes
1	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4030000\4030000\20_IEU\50_Other\2_RecordsLinks folder: 06_MI_DATA_GRP.xml 07_MI_MPPG_QRY.xml 08_MI_CLMND_PR.xml	This step is required only if you have not performed it during a previous upgrade. This will create data mappings between families in RBI 581. Important: After you complete this step, all existing changes to data mapping in the RBI 581and Risk Based Inspection modules will be reverted to baseline. All customization for data mappings will be lost. Do not perform this step unless your organization will be satisfied with the baseline data mappings, or you are prepared to customize the records again following the execution of the script.
2	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4030000\4030000\20_IEU\50_Other\2_RecordsLinks folder: 101_MI_STMPCNFG.xml 102_MI_STRMAPP.xml	This step is required. This will update the RBI Strategy Mapping Composite entities, overwriting the existing ones.
3	Add the RBI-581 tab to the datasheet of the following families: Criticality RBI Component - Cylindrical Shell Criticality RBI Component - Exchanger Bundle Criticality RBI Component - Exchanger Header Criticality RBI Component - Exchanger Tube Criticality RBI Component - Piping Criticality RBI Component - Tank Bottom	This step is required only for families for which you have customized the datasheet and if you have not performed it during a previous upgrade.
4	Using the Query tool, run the following query: `UPDATE [MI_RMMPG] SET [MI_RMMPG].[MI_RMMPG_SOURCE_FLD_C] = 'MI_RBDEMECH_TOTAL_PF_RBI_DTE_N' WHERE [MI_RMMPG].[MI_RMMPG_SOURCE_FLD_C] = 'MI_RBDEMECH_POF_N'`	This step is required. This will update the RBI Risk Matrix Mapping records such that Total POF - RBI Date value is used to plot probability of failure (POF) on the risk matrix, instead of the Total POF With Plan value. Important: After you complete this step, any customization done on the POF data mapping will be lost. Do not perform this step unless your organization will be satisfied with the baseline data mappings, or you are prepared to customize the records again following the execution of the query.
5	On the APM Server, reset IIS.	This step is required, and has to be performed after you complete all the aforementioned steps.
6	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder. Equipment Outside Risk Policy PendingRecommendations RBI 581 Assets Mitigation Overview Query RBI 581 Assets Not Mitigated Query RBI 581 With Plan Analyses Report RBI 581 Without Plan Analyses Report RBI Risk Matrix Query RiskMatrix Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder. Active Analyses for Evergreening – 581 Analyses Created For Evergreening – 581 Analyses Ready For Evergreening – 581 Asset Corrosion Analysis More Current Than RBI 581 Analyses Assets with No Recommendations (581 Only) Inspections More Current Than RBI 581 Analysis RBI Components for Inventory Group Analyses Ready For Evergreening for Unit - 581 Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder. RBI 581 Asset Risk-Components RBI 581 Asset Risk-Corrosion Analysis RBI 581 Asset Risk-Degradation Mechanisms RBI 581 Asset Risk-Equipment Data RBI 581 Asset Risk-Inspection History RBI 581 Asset Risk-RBIRecommendations RBI 581 Asset Risk-RefDocuments RBI 581 Asset Risk-RiskTargetsResults Public\Meridium\Modules\Risk Based Inspection\Queries folder. Asset Corrosion Analysis More Current Than All Analyses Asset Counts for Units Assets with No Recommendations Current Risk Current Risk Overview Inspections More Current Than All Analysis Past Risk Past Risk Overview RBI Asset Risk Query RBI Assets for a Functional Location RBI Components for Unit Select Protected Assets Select RBI Components View Protected RBI Components Review Analyses by Asset Review Analyses by Asset 581 Review Analyses by Corrosion Loop Review Analyses by Corrosion Loop 581 Process Unit Query	This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.
7	Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids.	This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.
8	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4050100\4050100\_IEU_ManualImports folder. MI_PRL_CNS0.xml MI_REPFLUID_581.xml MI_CMT_FLE0.xml	This step is required only if you have modified the properties of any of the 580 Representative fluids: Acid Acid-HP Acid-LP Acid-MP ALCL3 C13-16 (Diesel) C17-25 (Gas Oil) C1-C2 C25+ (Resid) C3-C4 C5 C6 C6-C8 C9-C12 CO DEE EE EEA EG EO H2 H2O (Water) H2S HCl HF MEOH (Methanol) NH3 Nitric Acid NO2 Phosgene PO Pyrophoric Steam Styrene (Aromatic) TD
9	Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.
10	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.
11	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Risk Based Inspection\Queries folder. Inspections More Current Than All Analysis Public\Meridium\Modules\Risk Based Inspection -581\Queries folder. Inspections More Current Than RBI 581 Analysis	This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.
12	Update PV Stress content and stress lookup fields for RBI 581 Risk Analyses in created state.	This step is required only if you want to use the Pressure Vessel stress content with updated Material Grade in accordance with Tables 1A and 1B of ASME Section II, Part D, 2010. For more information, refer to KBA 000051571.
13	Update PV Stress content and calculate Flow Stress for RBI 581 Risk Analyses in created state with Design Code ASME VIII DIV 1 and Code Year 1998.	This step is required only if you want to use the Pressure Vessel stress content with updated Minimum Tensile Strength and Minimum Yield Strength for Design Code ASME VIII DIV 1 and Code Year 1998, to calculate the Flow Stress. For more information, refer to KBA 000059269.

Upgrade from any version V4.1.0.0 through V4.1.7.4.0


Step	Task	Notes
1	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4030000\4030000\20_IEU\50_Other\2_RecordsLinks folder: 06_MI_DATA_GRP.xml 07_MI_MPPG_QRY.xml 08_MI_CLMND_PR.xml	This step is required only if you have not performed it during a previous upgrade. This will create data mappings between families in RBI 581. Important: After you complete this step, all existing changes to data mapping in the RBI 581and Risk Based Inspection modules will be reverted to baseline. All customization for data mappings will be lost. Do not perform this step unless your organization will be satisfied with the baseline data mappings, or you are prepared to customize the records again following the execution of the script.
2	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4030000\4030000\20_IEU\50_Other\2_RecordsLinks folder: 101_MI_STMPCNFG.xml 102_MI_STRMAPP.xml	This step is required. This will update the RBI Strategy Mapping Composite entities, overwriting the existing ones.
3	Add the RBI-581 tab to the datasheet of the following families: Criticality RBI Component - Cylindrical Shell Criticality RBI Component - Exchanger Bundle Criticality RBI Component - Exchanger Header Criticality RBI Component - Exchanger Tube Criticality RBI Component - Piping Criticality RBI Component - Tank Bottom	This step is required only for families for which you have customized the datasheet and if you have not performed it during a previous upgrade.
4	Using the Query tool, run the following query: `UPDATE [MI_RMMPG] SET [MI_RMMPG].[MI_RMMPG_SOURCE_FLD_C] = 'MI_RBDEMECH_TOTAL_PF_RBI_DTE_N' WHERE [MI_RMMPG].[MI_RMMPG_SOURCE_FLD_C] = 'MI_RBDEMECH_POF_N'`	This step is required. This will update the RBI Risk Matrix Mapping records such that Total POF - RBI Date value is used to plot probability of failure (POF) on the risk matrix, instead of the Total POF With Plan value. Important: After you complete this step, any customization done on the POF data mapping will be lost. Do not perform this step unless your organization will be satisfied with the baseline data mappings, or you are prepared to customize the records again following the execution of the query.
5	On the APM Server, reset IIS.	This step is required, and has to be performed after you complete all the aforementioned steps.
6	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder. Equipment Outside Risk Policy PendingRecommendations RBI 581 Assets Mitigation Overview Query RBI 581 Assets Not Mitigated Query RBI 581 With Plan Analyses Report RBI 581 Without Plan Analyses Report RBI Risk Matrix Query RiskMatrix Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder. Active Analyses for Evergreening – 581 Analyses Created For Evergreening – 581 Analyses Ready For Evergreening – 581 Asset Corrosion Analysis More Current Than RBI 581 Analyses Assets with No Recommendations (581 Only) Inspections More Current Than RBI 581 Analysis RBI Components for Inventory Group Analyses Ready For Evergreening for Unit - 581 Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder. RBI 581 Asset Risk-Components RBI 581 Asset Risk-Corrosion Analysis RBI 581 Asset Risk-Degradation Mechanisms RBI 581 Asset Risk-Equipment Data RBI 581 Asset Risk-Inspection History RBI 581 Asset Risk-RBIRecommendations RBI 581 Asset Risk-RefDocuments RBI 581 Asset Risk-RiskTargetsResults Public\Meridium\Modules\Risk Based Inspection\Queries folder. Asset Corrosion Analysis More Current Than All Analyses Asset Counts for Units Assets with No Recommendations Current Risk Current Risk Overview Inspections More Current Than All Analysis Past Risk Past Risk Overview RBI Asset Risk Query RBI Assets for a Functional Location RBI Components for Unit Select Protected Assets Select RBI Components View Protected RBI Components Review Analyses by Asset Review Analyses by Asset 581 Review Analyses by Corrosion Loop Review Analyses by Corrosion Loop 581 Process Unit Query	This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.
7	Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids.	This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.
8	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4050100\4050100\_IEU_ManualImports folder. MI_PRL_CNS0.xml MI_REPFLUID_581.xml MI_CMT_FLE0.xml	This step is required only if you have modified the properties of any of the 580 Representative fluids: Acid Acid-HP Acid-LP Acid-MP ALCL3 C13-16 (Diesel) C17-25 (Gas Oil) C1-C2 C25+ (Resid) C3-C4 C5 C6 C6-C8 C9-C12 CO DEE EE EEA EG EO H2 H2O (Water) H2S HCl HF MEOH (Methanol) NH3 Nitric Acid NO2 Phosgene PO Pyrophoric Steam Styrene (Aromatic) TD
9	Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.
10	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.
11	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Risk Based Inspection\Queries folder. Inspections More Current Than All Analysis Public\Meridium\Modules\Risk Based Inspection -581\Queries folder. Inspections More Current Than RBI 581 Analysis	This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.
12	Update PV Stress content and stress lookup fields for RBI 581 Risk Analyses in created state.	This step is required only if you want to use the Pressure Vessel stress content with updated Material Grade in accordance with Tables 1A and 1B of ASME Section II, Part D, 2010. For more information, refer to KBA 000051571.
13	Update PV Stress content and calculate Flow Stress for RBI 581 Risk Analyses in created state with Design Code ASME VIII DIV 1 and Code Year 1998.	This step is required only if you want to use the Pressure Vessel stress content with updated Minimum Tensile Strength and Minimum Yield Strength for Design Code ASME VIII DIV 1 and Code Year 1998, to calculate the Flow Stress. For more information, refer to KBA 000059269.

Upgrade from any version V3.6.1.0.0 through V3.6.1.7.5


Step	Task	Notes
1	Copy your customized SQL code from the Review Analyses by Asset query to the Review Analyses by Asset 580 query, and then replace the Review Analyses by Asset query with its baseline version.	This step is required only if you have previously customized the query that is used to populate the list of analyses on the RBI - Review Analyses page, and only if you will have the RBI 581 and Risk Based Inspection modules active at the same time.
2	Add the RBI-581 tab to the datasheet of the following families: Criticality RBI Component - Cylindrical Shell Criticality RBI Component - Exchanger Bundle Criticality RBI Component - Exchanger Header Criticality RBI Component - Exchanger Tube Criticality RBI Component - Piping Criticality RBI Component - Tank Bottom	This step is required only for families for which you have customized the datasheet.
3	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder. Equipment Outside Risk Policy PendingRecommendations RBI 581 Assets Mitigation Overview Query RBI 581 Assets Not Mitigated Query RBI 581 With Plan Analyses Report RBI 581 Without Plan Analyses Report RBI Risk Matrix Query RiskMatrix Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder. Active Analyses for Evergreening – 581 Analyses Created For Evergreening – 581 Analyses Ready For Evergreening – 581 Asset Corrosion Analysis More Current Than RBI 581 Analyses Assets with No Recommendations (581 Only) Inspections More Current Than RBI 581 Analysis RBI Components for Inventory Group Analyses Ready For Evergreening for Unit - 581 Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder. RBI 581 Asset Risk-Components RBI 581 Asset Risk-Corrosion Analysis RBI 581 Asset Risk-Degradation Mechanisms RBI 581 Asset Risk-Equipment Data RBI 581 Asset Risk-Inspection History RBI 581 Asset Risk-RBIRecommendations RBI 581 Asset Risk-RefDocuments RBI 581 Asset Risk-RiskTargetsResults Public\Meridium\Modules\Risk Based Inspection\Queries folder. Asset Corrosion Analysis More Current Than All Analyses Asset Counts for Units Assets with No Recommendations Current Risk Current Risk Overview Inspections More Current Than All Analysis Past Risk Past Risk Overview RBI Asset Risk Query RBI Assets for a Functional Location RBI Components for Unit Select Protected Assets Select RBI Components View Protected RBI Components Review Analyses by Asset Review Analyses by Asset 581 Review Analyses by Corrosion Loop Review Analyses by Corrosion Loop 581 Process Unit Query	This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.
4	Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids.	This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.
5	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4050100\4050100\_IEU_ManualImports folder. MI_PRL_CNS0.xml MI_REPFLUID_581.xml MI_CMT_FLE0.xml	This step is required only if you have modified the properties of any of the 580 Representative fluids: Acid Acid-HP Acid-LP Acid-MP ALCL3 C13-16 (Diesel) C17-25 (Gas Oil) C1-C2 C25+ (Resid) C3-C4 C5 C6 C6-C8 C9-C12 CO DEE EE EEA EG EO H2 H2O (Water) H2S HCl HF MEOH (Methanol) NH3 Nitric Acid NO2 Phosgene PO Pyrophoric Steam Styrene (Aromatic) TD
6	Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.
7	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.
8	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Risk Based Inspection\Queries folder. Inspections More Current Than All Analysis Public\Meridium\Modules\Risk Based Inspection -581\Queries folder. Inspections More Current Than RBI 581 Analysis	This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.

Upgrade from any version V3.6.0.0.0 through V3.6.0.12.9

RBI 581 has been introduced in APM V3.6.0.8.0. Therefore, if you have an earlier version of APM, then you must follow the steps in the first-time deployment of RBI 581. If you have deployed RBI 581 in APM V3.6.0.8.0 or later, you must follow the steps outlined in the following table.


Step	Task	Notes
1	Copy your customized SQL code from the Review Analyses by Asset query to the Review Analyses by Asset 580 query, and then replace the Review Analyses by Asset query with its baseline version.	This step is required only if you have previously customized the query that is used to populate the list of analyses on the RBI - Review Analyses page, and only if you will have the RBI 581 and Risk Based Inspection modules active at the same time.
2	Add the RBI-581 tab to the datasheet of the following families: Criticality RBI Component - Cylindrical Shell Criticality RBI Component - Exchanger Bundle Criticality RBI Component - Exchanger Header Criticality RBI Component - Exchanger Tube Criticality RBI Component - Piping Criticality RBI Component - Tank Bottom	This step is required only for families for which you have customized the datasheet.
3	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Mechanical Integrity\Queries\Dashboard Queries folder. Equipment Outside Risk Policy PendingRecommendations RBI 581 Assets Mitigation Overview Query RBI 581 Assets Not Mitigated Query RBI 581 With Plan Analyses Report RBI 581 Without Plan Analyses Report RBI Risk Matrix Query RiskMatrix Public\Meridium\Modules\Risk Based Inspection - 581\Queries folder. Active Analyses for Evergreening – 581 Analyses Created For Evergreening – 581 Analyses Ready For Evergreening – 581 Asset Corrosion Analysis More Current Than RBI 581 Analyses Assets with No Recommendations (581 Only) Inspections More Current Than RBI 581 Analysis RBI Components for Inventory Group Analyses Ready For Evergreening for Unit - 581 Public\Meridium\Modules\Risk Based Inspection - 581\Report Queries folder. RBI 581 Asset Risk-Components RBI 581 Asset Risk-Corrosion Analysis RBI 581 Asset Risk-Degradation Mechanisms RBI 581 Asset Risk-Equipment Data RBI 581 Asset Risk-Inspection History RBI 581 Asset Risk-RBIRecommendations RBI 581 Asset Risk-RefDocuments RBI 581 Asset Risk-RiskTargetsResults Public\Meridium\Modules\Risk Based Inspection\Queries folder. Asset Corrosion Analysis More Current Than All Analyses Asset Counts for Units Assets with No Recommendations Current Risk Current Risk Overview Inspections More Current Than All Analysis Past Risk Past Risk Overview RBI Asset Risk Query RBI Assets for a Functional Location RBI Components for Unit Select Protected Assets Select RBI Components View Protected RBI Components Review Analyses by Asset Review Analyses by Asset 581 Review Analyses by Corrosion Loop Review Analyses by Corrosion Loop 581 Process Unit Query	This step is required only if you have previously modified the queries and you want to support Functional Location as an Asset.
4	Update Dynamic Viscosity for H2O (Water) record in RepresentativeFluids.	This step is required only if you have previously modified H2O (Water) record in RepresentativeFluids family. For more information, refer to KBA 000057776.
5	Using Configuration Manager, import the following files located in the C:\Meridium\DbUpg\MI_DB_MASTER_4050100\4050100\_IEU_ManualImports folder. MI_PRL_CNS0.xml MI_REPFLUID_581.xml MI_CMT_FLE0.xml	This step is required only if you have modified the properties of any of the 580 Representative fluids: Acid Acid-HP Acid-LP Acid-MP ALCL3 C13-16 (Diesel) C17-25 (Gas Oil) C1-C2 C25+ (Resid) C3-C4 C5 C6 C6-C8 C9-C12 CO DEE EE EEA EG EO H2 H2O (Water) H2S HCl HF MEOH (Methanol) NH3 Nitric Acid NO2 Phosgene PO Pyrophoric Steam Styrene (Aromatic) TD
6	Add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table.	This step is required only if you have additional RBI Component type records that are not provided in the baseline APM database.
7	Recalculate the RBI 581 Risk Analyses to get the correct Calculated T-min field value where the Geometry Type field is set to Spherical Head or Hemispherical Head.	This step is required if you have RBI 581 Risk Analyses where Geometry Type field is set to Spherical Head or Hemispherical Head. For more information, refer to KBA 000041564.
8	Revert the following Risk Based Inspection 581 queries to baseline Public\Meridium\Modules\Risk Based Inspection\Queries folder. Inspections More Current Than All Analysis Public\Meridium\Modules\Risk Based Inspection -581\Queries folder. Inspections More Current Than RBI 581 Analysis	This step is required only if you have modified the queries that are used for the Inspection Updates section of the Inspection/TM Updates tab, in the Risk Based Inspection Overview page.

Revert the Process Units Overview Queries to Baseline

This action is required only if you have modified the Process Units Overview queries.

About This Task

Due to changes in the Asset Hierarchy filter, the existing Process Unit query and the Asset Counts for Units sub-query requires updates. If you have modified these queries, perform the following steps to revert the queries to baseline.

Procedure

Access the Query page.
Select Browse.

The Select a query from the catalog window appears.
Navigate to the Baseline/Meridium/Modules/Risk Based Inspection/Queries/ folder.
Select the link for the Asset Counts for Units baseline query.
The Results workspace appears.
Select the SQL tab.
Copy the code from the SQL workspace.
From the Catalog, navigate to the Public/Meridium/Modules/Risk Based Inspection/Queries/ folder.
Select the link for the Asset Counts for Units query.
The Results workspace appears.
Select the SQL tab.
Replace the code in the SQL workspace with the code that you have copied.
Repeat Steps 3-10 for the Process Unit Query.

Revert the Risk Based Inspection 581 Queries to Baseline

This action is required only if you have modified the Risk Based Inspection 581 queries.

About This Task

f you have modified the following Risk Based Inspection 581 queries, perform the following steps to revert the queries to baseline:

Active Analyses for Evergreening – 581
Analyses Created for Evergreening – 581

Procedure

Access the Catalog page.
Navigate to the Public folder for the query that you want to revert.
For Risk Based Inspection 581, the public queries are stored in the following folder:
Public/Meridium/Modules/RBI 581/Queries
Select the check box next to the query that you want to revert, and then select .
The Confirm Delete window appears, asking you to confirm if you want to delete the selected query.
Select OK.
The selected query is deleted.
Navigate to the Baseline folder for queries.
For Risk Based Inspection 581, the baseline queries are stored in the following folder:
Baseline/Meridium/Modules/RBI 581/Queries
Select the check box next to the query that you want to revert, and then select .
The Catalog Folder Browser window appears.
Navigate to the folder containing the public query that you deleted in step 3.
Select OK.
A success message appears indicating that the selected item has been copied successfully.
Repeat Steps 2-8 for each query that you want to revert to baseline.

Add the RBI-581 Tab to Criticality RBI Component Datasheets

Before You Begin

Note: You must repeat this procedure for each Criticality RBI Component datasheet that you have customized.

If you have customized the datasheet for one or more of the Criticality RBI Components, after activating the RBI 581 license, you must perform the following procedure to add the RBI-581 section to those customized datasheets. The following table indicates the fields that must appear on each datasheet.


Caption	Field ID	Criticality RBI Component - Cylindrical Shell	Criticality RBI Component - Exchanger Bundle	Criticality RBI Component - Exchanger Header	Criticality RBI Component - Exchanger Tube	Criticality RBI Component - Piping	Criticality RBI Component - Tank Bottom
Base Material	Base MaterialMI_CCRBICOM_BASE_MATER_C	✓	✓	✓	✓	✓	✓
Cladding Material	MI_CCRBICOM_CLADDING_MATERIL_C	✓	✓	✓	✓	✓	✓
Cladding Present	MI_CCRBICOM_CLADDING_PRESENT_L	✓	✓	✓	✓	✓	✓
CM Corrosion Rate	MI_CCRBICOM_CM_COR_RT_C	✓	✓	✓	✓	✓	✓
Coefficient Y Material	MI_CCRBICOM_COEFFICNT_Y_MTRL_C	✕	✕	✕	✕	✓	✕
Corrosion Allow	MI_RBICOMPO_CORRO_ALLOW_N	✓	✓	✓	✓	✓	✓
Detection System	MI_CCRBICOM_DETECTION_SYSTEM_C	✓	✓	✓	✓	✓	✓
Fluid Velocity	MI_CCRBICOM_FLUID_VELOCITY_N	✓	✓	✓	✓	✓	✓
Furnished Cladding Thk	MI_CCRBICOM_FRNSHD_CLDDG_THK_N	✓	✓	✓	✓	✓	✓
Geometry Type	MI_CCRBICOM_GEOMETRY_TYPE_C	✓	✓	✓	✓	✓	✓
GFF Component Type	MI_CCRBICOM_GFF_COMPO_TYPE_CHR	✓	✓	✓	✓	✓	✓
Has Release Prevention Barrier?	MI_CCRBICTB_HAS_RELEA_PREVE_F	✕	✕	✕	✕	✕	✓
Is Intrusive?	MI_RBICOMPO_IS_INTRU_CHR	✓	✓	✓	✓	✓	✓
Isolation System	MI_CCRBICOM_ISOLA_SYSTE_CHR	✓	✓	✓	✓	✓	✓
Liner Present	MI_CCRBICOM_LINER_PRESE_CHR	✓	✓	✓	✓	✓	✓
Liner Type	MI_CCRBICOM_LINER_TP_C	✓	✓	✓	✓	✓	✓
Minimum Structural Thickness	MI_CCRBICOM_MNMM_STRCTRL_THS_N	✓	✓	✓	✓	✓	✓
Mitigation System	MI_CCRBICOM_MITIGATION_SYSTM_C	✓	✓	✓	✓	✓	✓
Percent Liquid Volume	MI_RBICOMPO_PER_LIQ_VOL_N	✓	✓	✓	✓	✓	✓
pH of Water	MI_CCRBICOM_PH_OF_WATER_N	✓	✓	✓	✓	✓	✓
Specified Tmin	MI_CCRBICOM_SPECIFIED_TMIN_N	✓	✓	✓	✓	✓	✓
Total Acid Number	MI_CCRBICOM_TOTAL_ACID_NUMBR_N	✓	✓	✓	✓	✓	✓

Procedure

Access the Family Management page.
In the left section, select the Criticality RBI Component whose datasheet you want to modify.

In the workspace, the corresponding Criticality RBI Component family appears, displaying the Information section.
In the workspace, select the Datasheets tab, and then select Manage Datasheets.

The Datasheet Builder page appears, displaying the datasheet layout of the selected Criticality RBI Component family.
In the upper-right corner of the page, select

A new section tab appears at the top of the workspace, displaying a blank section.
On the new tab, rename new section to RBI-581.
In the RBI-581 section, select .
In the right column, in the top cell, enter Value(s).
In the left pane, locate a field that corresponds to the table at the beginning of this topic, and then add that field into the empty cell in the Value(s) column using the drag-and-drop method.

In the cell, an input box that corresponds to the selected field appears.
In the left column, enter the caption that corresponds to the field. For example, if you added the Coefficient Y Material field to the Value(s) column, then enter Coefficient Y Material in the corresponding cell in the left column.
In the upper-right corner of the page, select .

In the RBI-581 section, in the table, a new row appears.
Repeat steps 8 to 10 for each of the fields specified in the table at the beginning of this topic.
In the upper-right corner of the page, select Save.

The datasheet for the Criticality RBI Component that you selected in step 2 is saved, and the RBI-581 tab appears on the selected Criticality RBI Component datasheet.

Add Completion Comments Field to RBI Recommendation Datasheet

Procedure

In the module navigation menu, select Admin > Configuration Manager > Family Management.
The Family Management page appears, displaying the list of already existing families.
In the left pane, in the Entity section, select the RBI Recommendation entity.
The workspace for the RBI Recommendation entity appears.
In the workspace, select the Datasheets tabs.
Select Manage Datasheets.
The Datasheet Builder page appears.
On the Datasheet Caption drop-down menu, select the RBI Recommendation datasheet.
The datasheet appears in the Datasheet Builder workspace.
Note: If you have a custom datasheet, select the custom datasheet.
In the Available Items pane, select the Completion Comments field and drag it into the Datasheet Builder workspace.
The field is added to that datasheet.
Select Save.
The datasheet is saved.

Add RBI Component Types

Before You Begin

About This Task

Procedure

Log in to APM as an administrator.
Go to Admin > Configuration Manager > System Codes and Tables.
Search for MI RBI COMPONENT TYPES.
In the System Code section, select .
The Create System Code window appears.
Add the RBI Component Types to the system code table.
Select Save.
Log out of APM and log in.
To add existing RBI Component Types to the MI RBI COMPONENT TYPES system code table, perform the following steps:
1. Select , and enter EquipmentTypes.
  A blank EquipmentTypes datasheet appears.
2. In the CriticalityItemType box, select the existing RBI Component Type that you have added.
3. Enter values in the required boxes, and then select to save the record.
