Workflow Tables

The following table describes the Workflow reporting database tables and their descriptions.

Table	Description
Dim_Workflow	Workflow definitions.
Dim_WorkflowSchedule	Schedule definitions.
Dim_WorkflowSubprocess	Global subprocess definitions.
Dim_WorkflowCompletionCode	Completion code definitions.
Dim_WorkflowCategory	Category definitions.
Fact_WorkflowsInCategory	Workflow definition and category association.
Fact_WorkflowSchedulesInCategory	Schedule definition and category association.
Fact_WorkflowSubprocessesInCategory	Global subprocess definition and category association.
Fact_WorkflowCompletionCodesInCategory	Completion code definition and category association.
Dim_WorkflowStep	Workflow step definitions.
Dim_WorkflowScheduleStep	Workflow schedule step definitions.
Fact_WorkflowTaskInstance	Workflow instance history data.
Fact_WorkflowTaskStepInstance	Workflow step instance history data.
Fact_WorkflowTrackedVariable	Workflow tracked variables.
Fact_WorkflowStepTrackedVariable	Workflow step tracked variables.
Fact_WorkflowScheduleTrackedVariable	Workflow schedule tracked variables.
Fact_WorkflowScheduleStepTrackedVariable	Workflow schedule step tracked variables.
Fact_WorkflowTaskInstanceTrackedVariable	Workflow instance tracked variables.
Fact_WorkflowTaskStepInstanceTrackedVariable	Workflow step instance tracked variables.

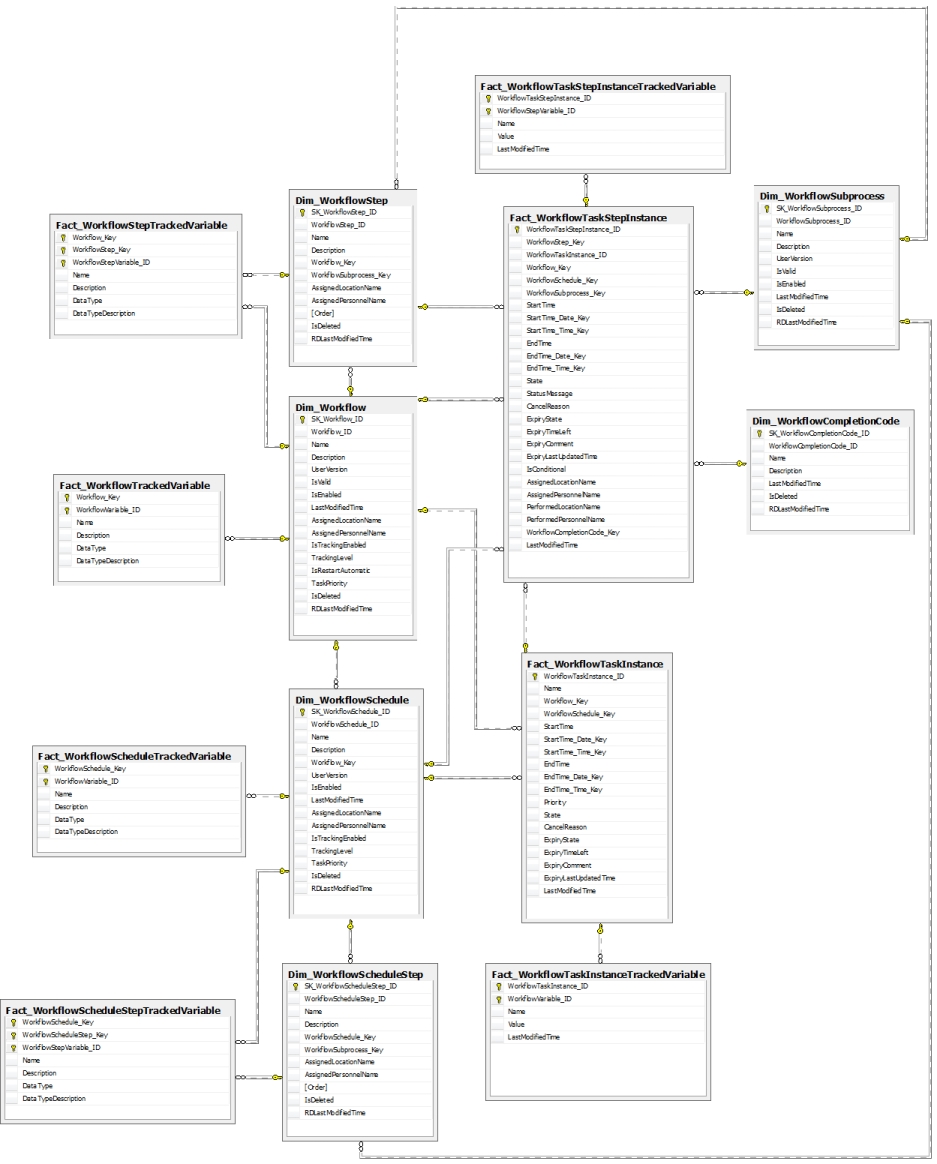

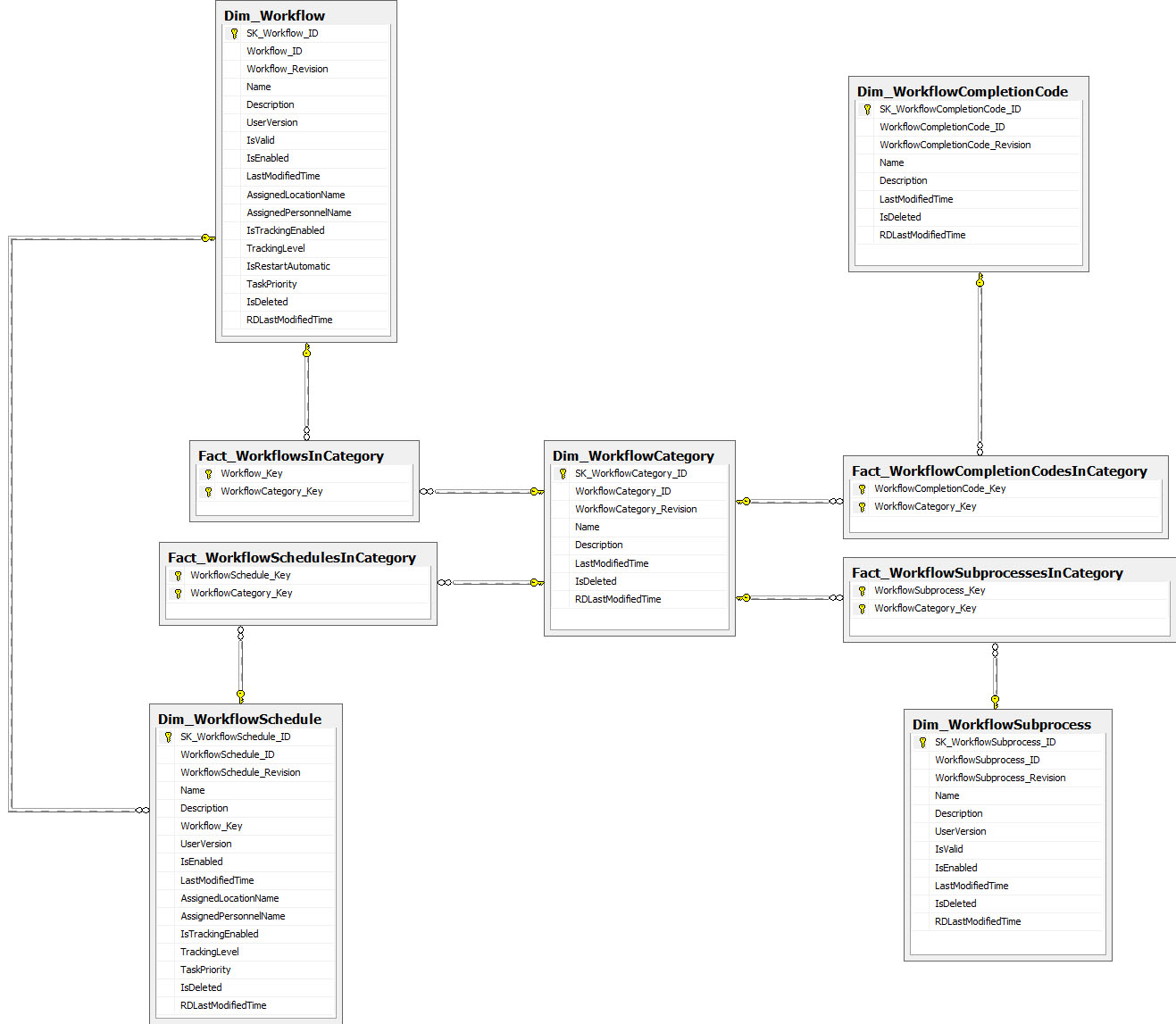

The following diagrams illustrate the relationships between the Workflow tables:

Note: In order to report on this data, tracking configuration in the Workflow model must be set.
