Replace Contained Objects

You can quickly replace contained objects by browsing through a list of similar objects that are assigned to the same object type.

In the Administration environment, navigate to Assets > Objects.
Select the object type.
Select Contained Objects.

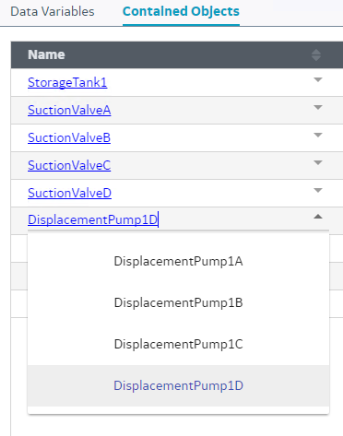

Select the arrow next to the contained object that you want to replace. A list appears with similar objects that are associated with the selected object type, as shown in the following image:
Select the object to replace the contained object. This selected object is now a contained object for the object type.
Optional: To view the details of a contained object, such as its data variables, select its hyper-linked name in the Name column.
Select Save.
