Override Attributes at the Object Level

Control Cards and Trend Cards are available at the object level to allow you to override the attribute values set at the object type level.

If you make changes in the Control Card and Trend Card sections at the object type level, every instance of that object type is affected. If an object instance has set overrides, the overrides are removed, and then replaced with the changed values from the object type.

This procedure explains how to override attribute values in the Control Card.

In the Administration environment, navigate to Visualizations > Designer.
In the pane, in the Objects section, select the asset.
Select the Control Card tab.
Modify the attribute values as needed.
Select Save.

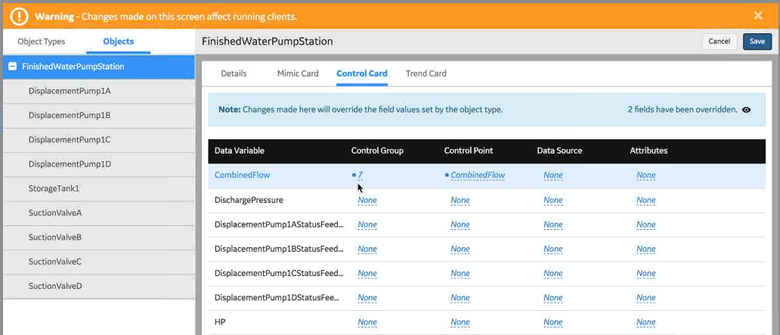

A blue dot appears next to each changed attribute value. The following sample screen shot shows that two attribute fields were overwritten for CombinedFlow at the object level.
Optional: You can hide or show the blue dots by selecting .
