This topic describes how to view simulation results for components, actions, and resources in a System Reliability Analysis.
Steps
In the left pane, select Simulation Results.

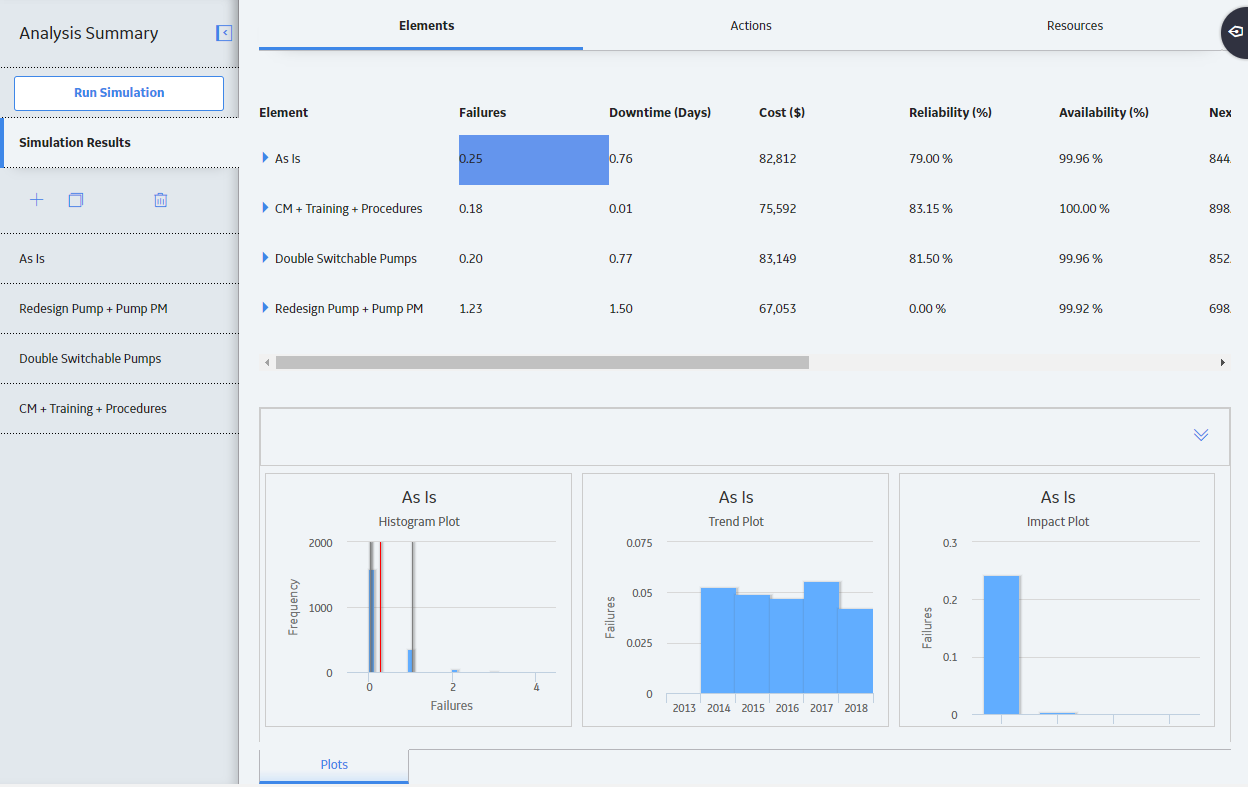

The Simulation Results workspace appears.
The workspace displays the following information:
By selecting a cell in the grid, you can view detailed information in the following graphs:
Note: If values that will affect the simulation results have been modified since the simulation was last run, a message will be displayed at the top of the page indicating that the simulation needs to be rerun to view the latest results. Whenever this message appears, we recommend that you rerun the simulation to ensure that valid results are displayed.
