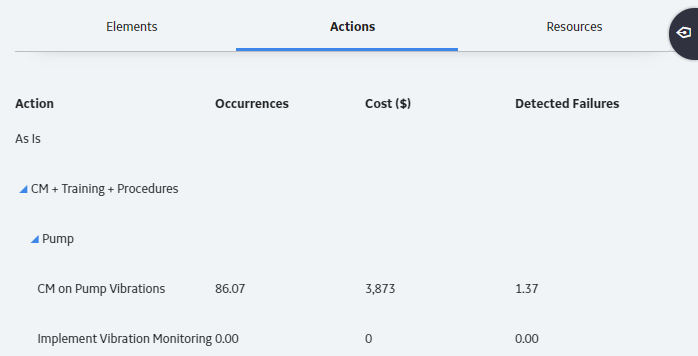

The Actions section contains a grid that displays specific results for the Actions that exist in a System Reliability Analysis.
The grid contain the following columns of information:
Action: Contains a hierarchy that lists the Actions that exist in a System Reliability Analysis. The Actions appear below the element in the Diagram to which they belong.
Occurrences: Contains a value that indicates the average number of occurrences of the Action from all iterations of the Scenario to which it belongs.
Cost (currency): Contains a value that indicates the average cost of the Action, including any Resources used by the Action, for the Scenario to which it belongs.
Detected Failures: Contains a value that indicates the average number of potential failures detected in advance by the Action. This result is calculated only for Inspection Actions and Condition Monitoring Actions, which are the only Actions that can detect potential failures.
By selecting a cell in the grid, you can view detailed information in the following graphs:
