Log status message

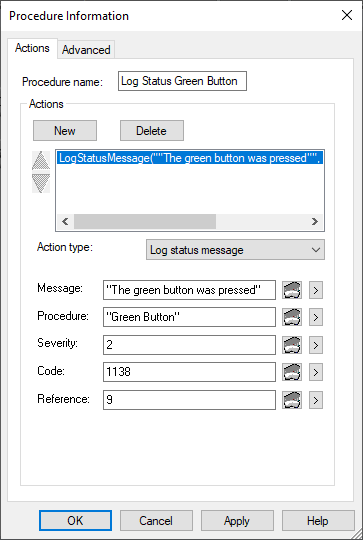

This procedure allows you to log an event's status message to the project status log without the need for a script.

This procedure is an alternative to using a script like the following:

Sub LogGreenButtonMessage ()
      LogStatus CIM_FAILURE,"Green Button","The green button was pressed",1138,9
End Sub
Note: You could also configure this procedure in the object model using the SetToLogStatusMessage method.

The following values can be set using expressions:

Value Description
Message The message to be displayed in the log.
Procedure The name of the procedure that will be displayed in the log as the procedure that logged the error.
Severity The severity of the error as follows:

Where,

0: Warning

1: Success

2: Failure
Code The code for the error.
Reference The reference for the error. This helps you to differentiate between two errors with the same error code.
