Absolute setpoint

Absolute Setpoint identifies a Point ID and a value to associate with the object. When the procedure is invoked in CimView, the value will be downloaded to the Point ID.

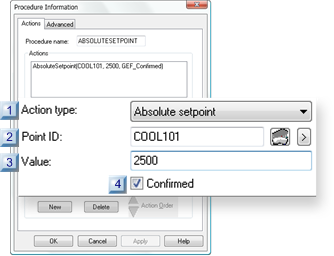

Configure the action as follows.

1	Action type
2	Point ID
3	Value
4	Confirmed

1	Action type

Select Absolute setpoint.

2

Point ID

Point that will be set when the action is triggered.

The:

• Value you select must be compatible with the point's type.
• Point must be a Read/Write point.

	Opens the Select a Point browser.
	Opens a Points Popup menu.

3

Value

Value the point will be set to when the action is triggered.

4

Confirmed

(Optional) Runtime confirmation.

Checked	Requires confirmation. A message box will display before the action occurs requesting confirmation to proceed.
Clear	Does not require confirmation.
Default	Clear
