Install NodeRED for Plant Applications Releases Earlier than SP1

Update the gateway-service-prod.properties file in the following location: {{installation path }}/PlantApplicationsDocker/plantapps-web-docker/mnt/configfiles/gateway-service/prod/{{version}}/.

Verify that the NodeRED path already exists. If the NodeRED path is not available, then update the path by adding the following:

spring.cloud.gateway.routes[57].id=nodered
spring.cloud.gateway.routes[57].uri=http://node-red:1880/nodered
spring.cloud.gateway.routes[57].predicates[0]=Path=/nodered/**
spring.cloud.gateway.routes[57].filters[0]=RewritePath=/nodered/(?<segment>.*), /nodered/${segment}
spring.cloud.gateway.routes[57].filters[1]=DedupeResponseHeader=Access-Control-Allow-Credentials Access-Control-Allow-Origin
spring.cloud.gateway.routes[57].filters[2].name=Retry
spring.cloud.gateway.routes[57].filters[2].args.retries=3
spring.cloud.gateway.routes[57].filters[2].args.statuses=${retryable_statuses}
spring.cloud.gateway.routes[57].filters[2].args.methods=GET,POST
spring.cloud.gateway.routes[57].filters[2].args.backoff.firstBackoff=10ms
spring.cloud.gateway.routes[57].filters[2].args.backoff.maxBackoff=50ms

spring.cloud.gateway.routes[61].id=pa-nodered-app-2
spring.cloud.gateway.routes[61].uri=http://panoderedapp:9003
spring.cloud.gateway.routes[61].predicates[0]=Path=/pa-nodered-app/properties/**
spring.cloud.gateway.routes[61].filters[0]=RewritePath=/pa-nodered-app/(?<segment>.*),/node-red/${segment}

spring.cloud.gateway.routes[62].id=pa-nodered-app
spring.cloud.gateway.routes[62].uri=http://panoderedapp:9003
spring.cloud.gateway.routes[62].predicates[0]=Path=/confighub_plugin/pa-nodered-app/{segment}, /pa-nodered-app/{segment}
spring.cloud.gateway.routes[62].filters[0]=SetPath=/node-red/{segment}
spring.cloud.gateway.routes[62].filters[1]=DedupeResponseHeader=Access-Control-Allow-Credentials Access-Control-Allow-Origin
spring.cloud.gateway.routes[62].filters[2].name=Retry
spring.cloud.gateway.routes[62].filters[2].args.retries=3
spring.cloud.gateway.routes[62].filters[2].args.statuses=${retryable_statuses}
spring.cloud.gateway.routes[62].filters[2].args.methods=GET,POST
spring.cloud.gateway.routes[62].filters[2].args.backoff.firstBackoff=10ms
spring.cloud.gateway.routes[62].filters[2].args.backoff.maxBackoff=50ms

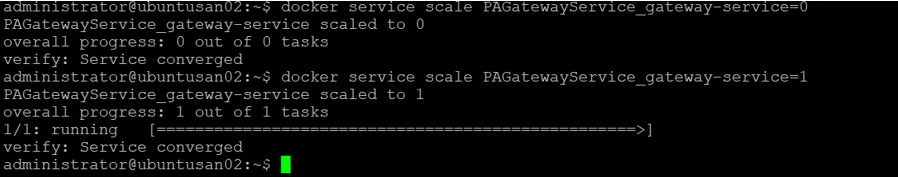

Restart Gateway service by typing the following commands:

docker service scale PAGatewayService_gateway-service=0docker service scale PAGatewayService_gateway-service=1

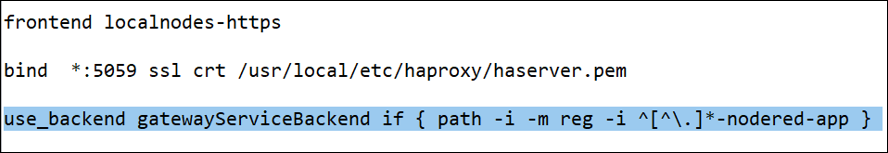

Update the haproxy.cfg file in the following location: {{installation path }}/PlantApplicationsDocker/plantapps-web-docker/mnt/paweb/config/.

Add the following configuration:

use_backend gatewayServiceBackend if {
                        path -i -m reg -i ^[^\.]*-nodered-app }

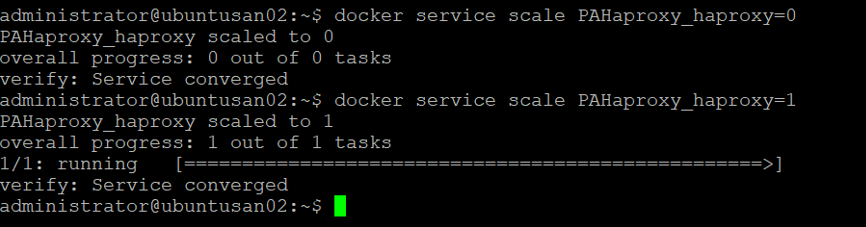

Restart the Haproxy service by typing the following commands:

docker service scale PAHaproxy_haproxy=0docker service scale PAHaproxy_haproxy=1
