Configure Degradation Mechanism Evaluation Validation and Calculation

1. Access the Has RBI Degradation Mechanism Evaluation relationship definition. For information on accessing a relationship family, refer to the Access the Relationship Definition Section topic.
2. Create a One-to-Many relationship definition between the RBI Criticality Analysis family (Predecessor family) and the new DME family (successor family). For information on creating a relationship definition, refer to the Create a Relationship Definition section.

1. Access the System Codes and Tables Page.
2. Access the MI_DEGRADATION_MECHANISM_TYPES System Code Table.
   The workspace for the MI DEGRADATION MECHANISMS TYPES (Degradation Mechanism Types) System Code Table appears.
3. Add the required Degradation Mechanism to the System Code Table.
   The Degradation Mechanism is created.

1. Select , and then navigate to and select Potential Degradation Mechanisms.
   The Record Manager page appears, displaying a new PDM record.
2. In the General section of the Potential Degradation Mechanism datasheet, enter the following values:
   • In the Degradation Mechanism box, select the configured Degradation Mechanism.
   • In the Degradation Mechanism Description box, select the configured Degradation Mechanism.
   • In the DM Methodology box, select the configured DME family.
   • In the Methodology Type box, select Quantitative.
3. Select the Consequences tab.
   • In the Value(s) box, select a failure mode.
   • In the Consequence Eval Used box, select the newly configured DME.
4. Select .
   The Potential Degradation Mechanism is created.

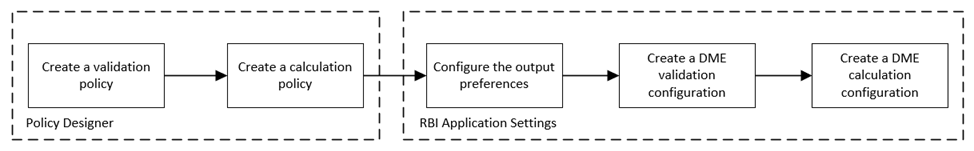

1. Create a policy.
2. Access the Design workspace of the policy.
3. Add an Entity node that represents the family that you want to validate. For information on Entity nodes, refer to the Entity Nodes in Policy Designer topic.
4. As needed, add other nodes required for the validations. For information on the different types of nodes, refer to the Condition, Logic, and Calculation Nodes in Policies section in the Policy Designer documentation.
5. For each validation, add a Return Value node that has the error message that you want to display to the user when validating the policy. For information on Return Value nodes, refer to the Return Value Nodes in Policy Designer topic.
   Note: Each Return Value node must have a unique name, and the error messages must not contain more than 255 characters.
6. Save the policy.
   The validation policy is created.

1. Create a policy.
2. Access the Design workspace of the policy.
3. Add an Entity node that represents the family that you want to use in calculations. For information on Entity nodes, refer to the Entity Nodes in Policy Designer topic.
   Note: As a best Practice for the DME Calculation, there should be minimum of two input nodes, one for the DME family and one for the DM family.
4. As needed, add other nodes required for calculations. For information on the different types of nodes, refer to the Condition, Logic, and Calculation Nodes in Policies section in the Policy Designer documentation.
5. For each calculation, add an Edit Entity node that contains the details of the output field and its value. For information on Edit Entity nodes, refer to the Edit Entity Nodes in Policy Designer topic.
6. Save the policy.
   The calculation policy is created.

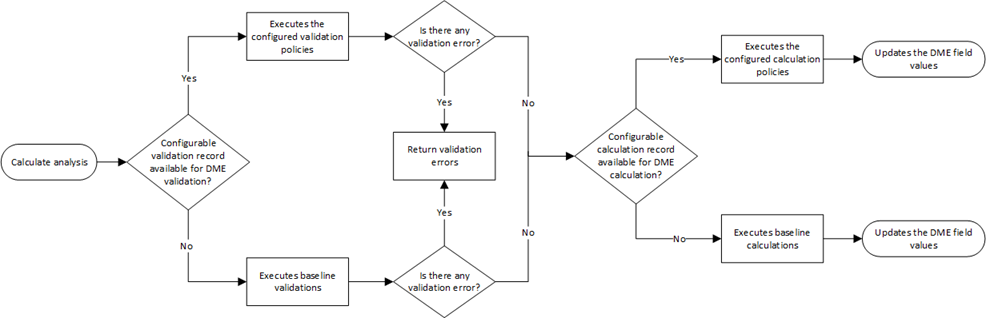

If you want to override the baseline validations, you must create a flexible validation record in the RBI 580 Flexible Calculation Preferences section. For more information on creating a flexible validation record, refer to the Create a Flexible Calculation Validation topic.

If you want to override the baseline DME calculations, you must create a flexible calculation record in the RBI 580 Flexible Calculation Preferences section. For more information on creating a flexible calculation record, refer to the Create a Flexible Calculation Configuration topic.

1. Create the following DME family (Criticality Configured Creep DME). For information on creating a family, refer to the Create a Family topic.
   1. Create the following fields:
      • Date in Service
      • Age
      • Likelihood Category

      For information on creating family fields, refer to the Create a New Family Field topic.

   2. Create a datasheet in the family. For information on creating a datasheet, refer to the Create a Datasheet topic.
   3. Add the newly created fields to the datasheet in their respective sections as described in the following table.

      Input Fields	Output Fields
      Date in Service	Age
      	Likelihood Category

      For information on adding fields to a datasheet, refer to the Add Fields to a Datasheet topic.

2. Create a One-to-Many relationship definition between the RBI Criticality Analysis family (Predecessor family) and the Criticality Configured Creep DME family (successor family). For more information on creating a relationship definition, refer to the Create a Relationship Definition topic.
3. Create a new Degradation Mechanism (Creep). For information on creating Degradation Mechanisms, refer to the Create Degradation Mechanisms topic.
4. Create a Potential Degradation Mechanism.
5. Create a validation policy to perform the validations on the input field. For detailed steps on creating the validation policy, refer to the Create a Sample Validation Policy topic.
6. Create a calculation policy to update the output fields based on the value in the input field. For detailed steps on creating the calculation policy, refer to the Create a Sample Calculation Policy topic.
7. Configure the output fields in the Output Preferences section in RBI Application settings. For more information on configuring output preferences, refer to the Configure DME Output Preferences.
8. Create a flexible validation record in the RBI Application Settings with the following settings:
   • Analysis Family: RBI Criticality Analysis
   • Action: Degradation Mechanism Evaluation Validation
   • Action Family: Criticality Configured Creep DME
   • Policy Name: Select the validation policy created in step 4.

   For more information on validation configuration, refer to the Create a Flexible Calculation Validation topic.

9. Create a flexible calculation configuration in the RBI Application Settings with the following settings:
   • Analysis Family: RBI Criticality Analysis
   • Action: Degradation Mechanism Evaluation Calculation
   • Action Family: Criticality Configured Creep DME
   • Policy Name: Select the calculation policy created in step 5.

   For more information on calculation configuration, refer to the Create a Flexible Calculation Configuration topic.

1. Create a Policy with the name Configured CE Validation Policy.
2. Configure an Entity node to represent the Configured Consequence Evaluation family.
3. Configure an Is Null node and map the value in the Production Loss field of the Configured Consequence Evaluation family.
4. Set the output value of the Is Null node to -1.



5. Map the output of the Is Null node to the input of the Equal node.
6. Configure the Equal node such that:
   • If the value in the Production Loss field is null, a Return Value node is triggered to display an error message indicating that Production Loss is a required field.



   • If the value in the Production Loss field is not null, the output is mapped to the Less Than node.



7. Configure the Less Than node such that if the value in the Production Loss field is less than zero, a Return Value node displays an error message indicating that the value must not be less than zero.



8. Save the policy.
   The validation policy is created.





This topic describes the general steps that you need to perform to configure the calculations as part of the scenario. For detailed information on creating and configuring a policy, refer to the Policy Designer documentation.

SELECT ABS((DATEDIFF('DD', [MI_MRBIANAL].[MI_CRITANAL_DATE_CRIT_CALC_D], [CRIT_CUST_CREEP_DME].[MI_RBDEMEEV_DATE_IN_SERV_DT]) / 365.4)) "Age"
FROM [MI_MRBIANAL]
JOIN_SUCC [CRIT_CUST_CREEP_DME] ON {MIR_HSRBIDME}
WHERE [MI_MRBIANAL].ENTY_KEY = (? :s :caption='Analysis Key')

1. Create a Policy with the name Configured DME Calculation Policy.
2. Configure an Entity node (DME) to represent the Criticality Configured Creep DME family.
3. Add a Query node and map the DME Entity node to the Query node.
4. Configure the Query node to the query created for Age calculation.



   The value in the Age field is configured to be updated based on the value in the Date in Service field.

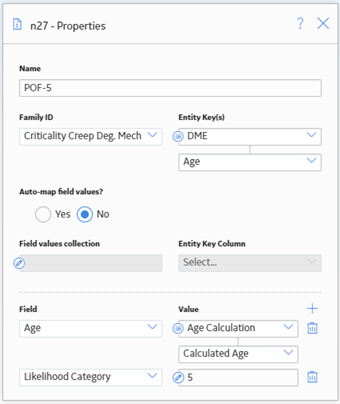

5. Add a Less Than or Equal node and configure it such that if the value in the Age field is less than or equal to 1, it triggers an Edit Entity node. Configure the Edit Entity node to update the value in the Likelihood Category as 5.



6. Similarly, configure the other calculations by adding Less Than or Equal nodes and the corresponding Edit Entity nodes.
7. Save the policy.
   The calculation policy is created.
