View Historian Node Details

After you added a Historian node, you can view the Historian node-specific certificate and license details.

Procedure

Double-click the Configuration Hub icon on your desktop ().

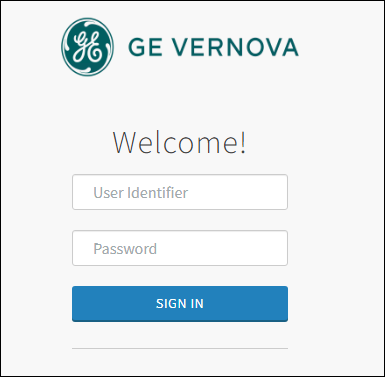

The Configuration Hub login page appears.
Login with the default user credentials. That is, <hostname>.admin.
The configuration hub application appears, listing the Historian plugin in the NAVIGATION pane.
In the NAVIGATION pane, select and expand Administration, and then select Node Manager.

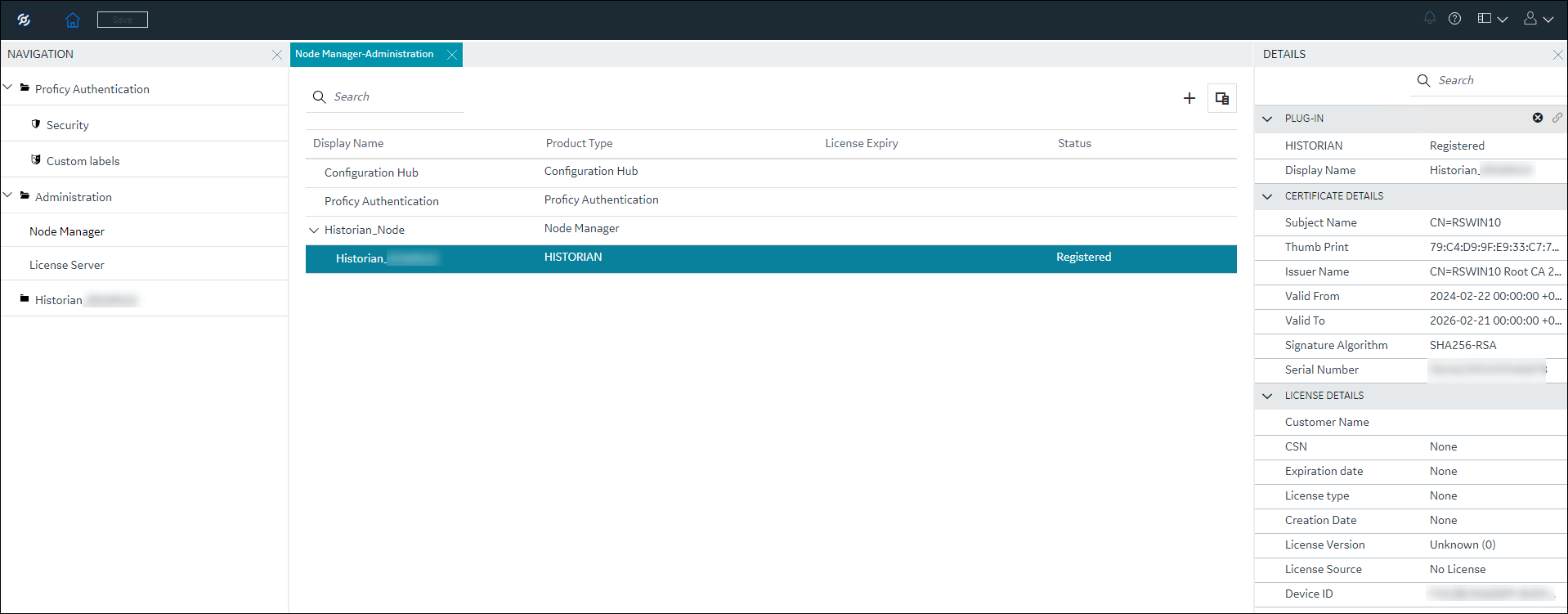

The Node Manager administration page appears, listing the available Historian node and the plugin.
To view the Historian node-specific details, select the node. The node-specific details appear in the right-side section.
To view the plugin-specific details, expand the node and select the plugin. The plugin-specific details appear in the right-side section.
If you have the needed permission, you can perform additional certificate and node management tasks. For more information, refer to Administration Plugin in the Configuration Hub help. For more latest updates, refer to the online version of the Historian 2024 help.
