Step 3.2. Name and Describe the Site

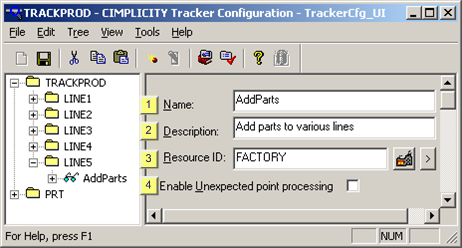

Configure the top group of the RCO dialog box.

The options are as follows.

	Option	Description
1	Name	Unique name for the RCO site. Important: The name can be a total of 16 characters or less.
2	Description	Brief description of the purpose of the RCO.
3	Resource ID	Click either:
			Browse for an existing resource in the project, or
			Designate a new resource.
4	Enable Unexpected point processing	Check to allow RCO to generate an alarm when a point change that is unexpected comes into a site.
		Unexpected point processing applies to three RCO point types: Trigger, Validation and Verification. The Enabled Unexpected point processing option: Allows the RCO system to disable the control site when a point change that is not expected occurs on one of these point types. Displays an error in the RCO_UI, Generates an alarm. Note: Configure the alarm state using the Alarming/Logging dialog box for details.
