Step 4. Configure Triggers

Method 1

Select File>Routing Control Objects on the Tracker menu bar.

Method 2

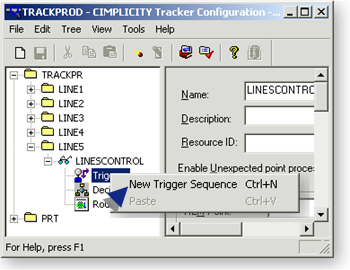

1. Right-click the Triggers icon.
2. Select New Trigger Sequence from the Popup menu.

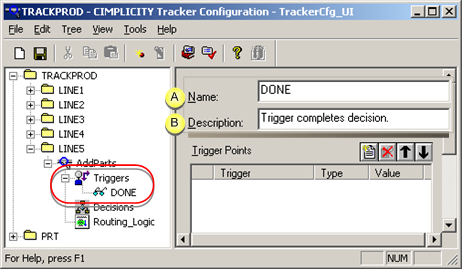

A new Trigger item displays in the left pane; the right pane displays the dialog for configuring a trigger.

	Field	Description
A	Name	A unique name for the new trigger.
B	Description	(Optional) A brief description describing the purpose of the trigger.

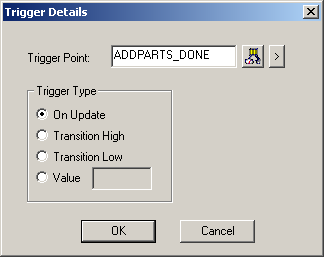

Field	Description
Trigger Point	Point value is used to determine the trigger sequence of events. The point type depends on what value is being compared.
Trigger Type	The checked radio button specifies when the trigger will be activated, as follows.
	On Update	Value of the Point must change to activate the trigger.
	Transition High	Value of the Point must start high to activate the trigger. The initial state of this trigger upon CIMPLICITY startup is high.
	Transition Low	Value of the Point must change from a non-zero value to 0 to activate the trigger. The initial state of this trigger upon CIMPLICITY start is low, so the point must change to a non-zero value, and then to a 0 value.
	Value	Point changes to the value you specify to activate the trigger. When radio button is clicked, the Value field will activate. Type the value in the field.
