The MIExecution Service

The MIExecution Service is a service available in the APM server, which processes jobs in the Inspection Management, Integrity Mobile, Risk Based Inspection, and Thickness Monitoring module queues. It uses a single shared ActiveMQ queue service across APM.

Supported Job Types

Inspection Management
Integrity Mobile
Risk Based Inspection
Thickness Monitoring

Configuration

You can configure the following parameters of the MIExecution Service:


Parameter	Description	Default Value
ConcurrencyLimit	The maximum number of messages consumed concurrently.	100
Retries	The number of times the service retries to send the messages to ActiveMQ in case of a failure.	5

For instructions of configuring these settings, refer to Configure Inspection Management ActiveMQ settings for MIExecution Service.

Compliance Queries

Compliance Folder Items

The Catalog folder \\Public\Meridium\Modules\Inspection\Compliance\Queries contains the following queries used in the Compliance workflow.

Query

Behavior and Usage

Assets with Templates without Inspection Plans

Displays assets that have a Compliance Strategy Template linked. This query is used in the Assets with Templates section in the Compliance Management Overview page. The entity key of the asset must be used in the query and have the alias ASSET_ENTY_KEY.

Assets without Templates

Displays assets that do not have a Compliance Strategy Template linked. This query is used in the Assets without Templates section in the Compliance Management Overview page.

The following columns in the query must be used, and the aliases must contain the following values.


Column	Alias
MI_ENTITY.ENTY_KEY	ASSET_ENTY_KEY
[MI_SUGG_COMP_TEMP].[MI_SUGG_COMP_TEMP_TMP_KEY_N]	TEMP_KEY

Compliance Template Assets

Displays the Compliance Strategy Templates for a given compliance category. This query is used for populating the Assets section in the Compliance Strategy Template in the Compliance Configuration section of the IM Admin Preferences page.

Important:

The ASSET_ENTY_KEY must not be modified or deleted.
If you are using assets that are from families other than Equipment or Functional Location, you must add the family to the query using a union.

Compliance Templates by Category

Displays the assets associated with a given Compliance Strategy Template.

Important: The [MI_COMP_STRAT_TEMP].ENTY_KEY column must not be removed, and the alias, ENTY_KEY, must not be modified. In the WHERE criteria, the ID of the parameter must be category.

Assets with Inspection Plans

Displays the assets that are associated with an Inspection Plan.

Compliance Management Overview Filter Parameters

This query is used in the Compliance Management Overview page.

Compliance Templates

This query is used in the Compliance Templates section in the Compliance Management Overview page.

Assets with Compliance Recommendations

Displays the Compliance Recommendations count for an Asset.

Inspection Plan Queries

The Catalog folder \\Public\Meridium\Modules\Inspection\Compliance\Queries contains the following queries used in the Inspection Plan workflow.

Query

Behavior and Usage

Compliance Recommendations by Plan

Displays Recommendations based on the Inspection Plan.

The following columns in the query must be used, and the aliases must contain the following values.


Column	Alias
[MI_COMP_RECOMM].ENTY_ID AND [MI_RBIRECOM].ENTY_ID	REC_ENTY_ID
[MI_COMP_RECOMM].ENTY_KEY AND [MI_RBIRECOM].ENTY_KEY	REC_ENTY_KEY
[MI_TASKINSP].[MI_TASK_ID]	Task ID
a."SUCC_ENTY_KEY"	Linked Actions
[MI_TASKINSP].ENTY_KEY	TASK KEY
{MIR_RBICRAN}.PRED_ENTY_KEY Note: For Compliance Recommendations, the column must be set to NULL. For RBI Consolidated Recommendations, the column must be set to 0.	Comp Key
PRED_ENTY_KEY Note: For Compliance Recommendations, the column must be set to NULL. For RBI Consolidated Recommendations, the column must be set to 0.	Analysis Key
MI_SM_STATES.SMST_ID	STATE_ID
[MI_COMP_RECOMM].FMLY_KEY AND [MI_RBIRECOM].FMLY_KEY	FMLY_KEY
[MI_RBIRECOM].[MI_RBIRECOM_NONRE_FLG]	NonRecurring?

Important: \\Public\Meridium\Modules\Inspection\Compliance\Queries\Compliance Superseded Recommendation Counts is a subquery and must not be removed from the parent query. In this subquery, the SUCC_ENTY_KEY column is required, and the alias must not be modified.

Compliance Recommendations to Supersede

Displays Recommendations for a given entity keys. This query is used to select the master Recommended Action while superseding Compliance Recommendations in the Recommendation section of the Inspection Plan page.

Important: The [MI_RBIRECOM].ENTY_KEY column must not be removed, and the alias REC_ENTY_KEY must not be modified.

Compliance Superseded Recommendations

Displays a list of Consolidated and Superseded Recommendations. This query is used to access the linked actions in the Inspection Plan page.

Note: The [MI_RBIRECOM].ENTY_KEY column must not be removed, and the alias REC_ENTY_KEY must not be modified.

Inspection Tasks for Asset

Displays the Inspection Tasks for an asset. This query is used to access the Existing Tasks in the Inspection Plan page.

Important: In the WHERE criteria, the ID of the parameter must be ASSET_ENTY_KEY.

Compliance Superseded Recommendation Counts

Returns the count of Consolidated and Superseded Recommendations. This query is used in the Recommendation section of the Inspection Plan page.

Inspection Tasks Available to Implement

Displays the Inspection Tasks available to implement for a Compliance Recommendation. This query is used to access the Inspection tasks after selecting the Implement button in the Inspection Plan page.

Recommended Actions by Selected Plans

Displays unimplemented actions from a given Inspection Plan. This query is used in the Inspection Plan page. The following columns in the query must be used, and the aliases must not be changed.


Column	Alias
[MI_COMP_RECOMM].ENTY_ID AND [MI_RBIRECOM].ENTY_ID	REC_ENTY_ID
{MIR_ASST_HAS_INSP_PLAN}.PRED_ENTY_KEY	ASSET_KEY

Important: In the WHERE clause, the ID of the parameter must be ENTY_KEYS.

Link Existing Task to Recommended Action

Returns an Inspection Task to link to a given Recommendation based on Asset and Task Type. This query is used in the Inspection Plan page. The following columns in the query must be used, and the aliases must not be changed.


Column	Alias
[MI_TASKINSP].ENTY_KEY	ENTY_KEY

Important: In the WHERE clause, the following parameter IDs must be provided and not modified:

TASK_TYPE
ASSET_KEY

All Inspection Plans for Unit

Returns all Inspection Plans for the selected location in the hierarchy. This query is used to access all the Inspection plans in the Inspection Plan Management page.

Active Recommendations of Plans for Unit

Returns all active recommendations for Inspection Plans for the selected location in the hierarchy. This query is used to view active recommendations in the Inspection Plan Management page.

Inspection Plan Revisions

Displays the Inspection Plan Revisions for a given Inspection Plan. This query is used to retrieve the revisions for an Inspection Plan.

Important:

The column [MI_INSP_PLAN_REV].[MI_INSP_PLAN_REV_REVI_DATE_D] must not be removed and its alias must not be changed.
In the WHERE clause, the ID of the parameter must be PLAN_ENTY_KEY.

Compliance Recommendation Revisions for Inspection Plan

Displays the Recommendation Revision records for a given Inspection Plan Revision. This query is used in the Inspection Plan page to view the revisions for a Recommendation.

Important:

The column [MI_COMP_REC_REV].[MI_REC_ID] must not be removed and its alias must not be changed.
In the WHERE clause, the ID of the parameter must be PLAN_REV_ENTY_KEY.

Dashboard Queries Folder Items

The Catalog folder \\Public\Meridium\Modules\MehcanicalIntegrity\Queries\Dashboard Queries contains the following items that are used in the Compliance Management Overview page.


Query	Behavior and Usage
Compliance Recommendations with Approved Plans	This query is used in the Active Recommendation Summary section in the Compliance Management Overview page.
Inspection Plan States	This query is used in the Inspection Plan Summary section in the Compliance Management Overview page.

Compliance Permissions

The following security privileges have been assigned to the \\Public\Meridium\Modules\Inspection\Compliance\ folder.

Role	Permissions
MI Inspection	View Edit Create Delete
MI Inspection Viewer	View
MI RBI Administrator	View
MI RBI Analyst	View
MI Thickness Monitoring Administrator	View
MI Thickness Monitoring Inspector	View
MI Thickness Monitoring User	View

European Inspection Management Queries

The following table lists the queries for European Inspection Management.


Name of the Query	Query Description
EU_Available_Assets_Piping_EQP	Retrieves all the piping equipment available for linking to a Compliance Strategy Template.
EU_Available_Assets_Piping_FLOC	Retrieves all the piping functional locations available for linking to a Compliance Strategy Template.
EU_Available_Assets_PressureVessel_EQP	Retrieves all the pressure vessel equipment available for linking to a Compliance Strategy Template.
EU_Available_Assets_PressureVessel_FLOC	Retrieves all the pressure vessel functional locations available for linking to a Compliance Strategy Template.
EU_Available_Assets_SPV_EQP	Retrieves all the simple pressure vessel equipment available for linking to a Compliance Strategy Template.
EU_Available_Assets_SPV_FLOC	Retrieves all the simple pressure vessel functional locations available for linking to a Compliance Strategy Template.
EU_Available_Assets_SteamBoiler_EQP	Retrieves all the steam boiler equipment available for linking to a Compliance Strategy Template.
EU_Available_Assets_SteamBoiler_FLOC	Retrieves all the steam boiler functional locations available for linking to a Compliance Strategy Template.
EU_Piping_Filter_EQ	Retrieves all the asset technical data records related to a piping equipment.
EU_Piping_Filter_FL	Retrieves all the asset technical data records related to a piping functional location.
EU_PresssureVessel_Filter_EQ	Retrieves all the asset technical data records related to a pressure vessel equipment.
EU_PresssureVessel_Filter_FL	Retrieves all the asset technical data records related to a pressure vessel functional location.
EU_SimplePressureVessel_Filter_EQ	Retrieves all the asset technical data records related to a simple pressure vessel equipment.
EU_SimplePressureVessel_Filter_FL	Retrieves all the asset technical data records related to a simple pressure vessel functional location.
EU_SteamBoiler_Filter_EQ	Retrieves all the asset technical data records related to a steam boiler equipment.
EU_SteamBoiler_Filter_FL	Retrieves all the asset technical data records related to a steam boiler functional location.

Compliance Management URLs

There is one URL route associated with Compliance Management: cm. The following table describes the various paths that build on the route and the elements that you can specify for each.


URL	Destination
cm/overview The Compliance Management Overview page.

Compliance Strategies URLs

The following URLs in Inspection Management allow you to access Compliance Strategies administrative options.


Element	Description	Accepted Value(s)	Notes
im-admin-preferences/compliance-configuration: Accesses the Compliance Strategies workspace.
im-admin-preferences/compliance-configuration/<templateKey>: Accesses a Compliance Strategy Template.
<templateKey>	Specifies the entity key of the Compliance Strategy Template that you want to view.	The entity key of any Compliance Strategy Template.	None.

Inspection Plan URLs

The following table describes the various paths that are used for the Inspection Plan workflow.


Element	Description	Accepted Value(s)	Notes
cm/asset/<assetKey>: Accesses the Inspection Plan for the specified asset.
cm/plans: Accesses the Inspection Plan Management page.
<assetKey>	Specifies the entity key of the asset record which you want to view.	Any asset key that is associated with an asset in the Asset Hierarchy	You should use the asset key of an asset that has an Inspection Plan created. If you select an asset that does not have an Inspection Plan, a warning message appears.

URLs


Example URL	Destination
cm/asset/3290820029	The Inspection Plan for the selected asset.

Compliance Management System Code Tables

The following table lists the System Code Tables that are used by Compliance Management.


Table ID	Table Description	Function
INSM	Inspection Interval Types	Used to populate the Desired Interval Basis list in Inspection Task records.
MI DEGRADATION MECHANISM TYPES	Degradation Mechanism Types	Used to populate the Degradation Mechanism list in Inspection Plan records.

European Inspection Management System Code Tables

The following table lists the System Code Tables that are used by European Inspection Management.


Table ID	Table Description	Function
MI_COMPLIANCE_STANDARD	Compliance Standard	This system code table stores the certification value. The values in this field are populated from a drop-down list box.
MI_INTGY_FLUID_CTGY	Integrity Fluid Category	This system code table stores the fluid category list. The values in this field are populated from a drop-down list box.
NR13_FLAMMABLE	NR13_FLAMMABLE	This system code table stores the type of fluid. The fluid type is either Combustible or Flammable.
FLUID TYPES	Fluid Types	This system code table stores the type of fluid. The fluid type is either Gas or Liquid.
MI_INTGY_ASSET_TYPE	Integrity Asset Type	This system code table is required to calculate certification requirements for the asset of the following types: Pressure Vessel Simple Pressure Vessel Steam Boiler Piping
MI_INTGY_REGULATION	Integrity Inspection Regulations	This system code table is populated with a list of European Inspection regulations to be linked to a task. This field is always disabled.
MI_MAPPING_REFERENCE	MI Mapping Reference	This system code table stores the references of a Compliance Recommendation Mapping record
MI_INTGY_FLUID_NAME	Integrity Fluid Name	This system code table stores a list of fluid names. You can choose from the baseline values, populated from a drop-down list box
MI_INTGY_FLUID_GROUP	Integrity Fluid Group	This system code table specifies the fluid group according to Table F: Fluid Group Table.
MI_INTGY_GRACE_PERIOD_BASIS	Grace Period Basis	This system code table contains the information about basis on which the Inspection Grace Date is calculated.
MI_CHAMBER	Chamber	This system code table information about the type of chamber. The values in this field are populated from a drop-down list box.
EU_INSP_INST	European Inspection Instructions	This system code table stores the value selected in the Inspection Instruction. The values in this field are populated from a drop-down list box.
MI_EN_DOC_CTGY	Inspection	This system code table stores the value selected in the Inspection Document Category. The values in this field are populated from a drop-down list box.
MI_EU_TASK_RESCHEDULE	Inspection	This system code table captures the information based on how the Next Date field is calculated. The field can be calculated either by the Completion Date or the Previous Next Date. This field is always disabled.

Compliance Management State Management

The following state changes can be applied to Compliance Recommendations and Inspection Plans based on user Security Roles.

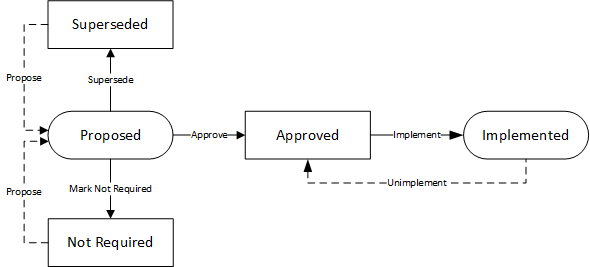

The diagram below shows the workflow of the baseline State Management process as it applies to Compliance Recommendations.

The diagram below shows the workflow of the baseline State Management process as it applies to Inspection Plans.

Details

The Proposed state is the initial state of all Compliance Recommendations.
The Proposed state is the initial state of all Inspection Plans.
When you change the state of an Inspection Plan from Approved to Modified, an Inspection Plan Revision History record is created.
Operations in Compliance Management change the state of Compliance Recommendations or Inspection Plans. Users must have the appropriate security roles to execute these operations.

Reserved States and Operations for Compliance Recommendations

The following tables indicate whether the baseline states and operations are reserved. You cannot remove or modify reserved states or operations.


State Caption	Reserved State	Security Role
Implemented	Yes	MI Compliance Analyst MI Inspection Plan Approver
Not Required	Yes	MI Compliance Analyst MI Inspection Plan Approver
Proposed	No	MI Compliance Analyst MI Inspection Plan Approver
Superseded	Yes	MI Compliance Analyst MI Inspection Plan Approver


Operation	Reserved Operation	Predecessor State	Successor State
Implement	Yes	Proposed	Implemented
Propose	No	Not Required	Proposed
Propose	No	Superseded	Proposed
Mark Not Required	Yes	Proposed	Not Required
Supersede	Yes	Proposed	Superseded
Unimplement	Yes	Implemented	Proposed
Approve	Yes	Proposed	Approved

Reserved States and Operations for Inspection Plans

The following tables indicate whether the baseline states and operations are reserved. You cannot remove or modify reserved states or operations.


State Caption	Reserved State	Security Roles
Approved	No	MI Inspection Plan Approver
Modified	Yes	MI Compliance Analyst MI Inspection Plan Approver
Proposed	No	MI Compliance Analyst MI Inspection Plan Approver


Operation ID	Reserved Operation	Predecessor	Successor
MI_APPROVE	No	Proposed	Approved
MI_APPV_MODIFIED	No	Modified	Approved
MI_MODIFY	Yes	Approved	Modified
MI_PROMOTE	Yes	Proposed	Accepted

Compliance Recommendation and Inspection Task Mappings

When you implement a Compliance Recommendation, you can create new Inspection Tasks or link existing Inspection Tasks to the Compliance Recommendation. Values from the Compliance Recommendation fields populate fields in the Inspection Task.

The following tables list the Inspection Task fields that are populated automatically from these sources.

Table 1. Link Existing Inspection Tasks to Compliance Recommendations
Field	Value	Source
Desired Interval	The value in the Recommended Interval Scope field. Note: This field is populated with the value of the Recommended Interval Scope field only if the value in the Override Interval field is False.	Compliance Recommendation
Desired Interval Basis	Compliance Recommendation Note: This field is populated with the value of the Recommended Interval Scope field only if the value in the Override Interval field is False.	Compliance Recommendation
Task Details	The value in the Recommended Inspection Scope field.	Compliance Recommendation
Task Type	The value in the Task Type field.	Compliance Recommendation

Table 2. Link New Tasks to Compliance Recommendations
Field	Value	Source
Desired Interval	The value in the Recommended Interval Scope field.	Compliance Recommendation
Desired Interval Basis	Compliance Recommendation	Compliance Recommendation
Override Interval	False	Compliance Recommendation
Task Details	The value in the Recommended Inspection Scope field.	Compliance Recommendation
Task ID	The values in the Damage Mechanism and Task Type fields in the following format: <Damage Mechanism><Task Type>.	Compliance Recommendation
Task Type	The value from the Task Type field.	Compliance Recommendation
Asset Key	The key of the asset that the recommendation is linked to.	Compliance Recommendation
Last Date	User provided input. Default value is current date.	Compliance Recommendation

Values Mapped to Action

When you promote an Asset to Asset Strategy Management (ASM), an Action is created in ASM for each Compliance Recommendation in the active Inspection Plan. This Action contains the details of the Recommendation.

The following table provides a list of fields on an Action datasheet whose values are populated from the Compliance Recommendation.


This Action field:	...is populated with:
Action Basis	The Name of the Compliance Strategy Template.
Action Source	The value Compliance.
Action Task Type	The value in the Task Type field.
Action Type	The value in the Action Type field.
Description	<Recommendation Inspection Scope> ~ <Recommendation Basis>
Interval	The value in the Interval field in the Compliance Recommendation
Interval Basis	The value COMPLIANCE RECOMMENDATION
Interval Units	The value Months.
Name	<Damage Mechanism> ~ <Task Type>

European Inspection Management Security Groups

The following table lists the baseline Security Groups available for users within this module, as well as the baseline Roles to which those Security Groups are assigned.

Important: Assigning a Security User to a Role grants that user the privileges associated with all of the Security Groups that are assigned to that Role. To avoid granting a Security User unintended privileges, before assigning a Security User to a Role, be sure to review all of the privileges associated with the Security Groups assigned to that Role. Also, be aware that additional Roles, as well as Security Groups assigned to existing Roles, can be added via Security Manager.


Security Group	Roles
RBI Security Groups
MI RBI Administrator	MI Mechanical Integrity Administrator
MI RBI Analyst	MI Mechanical Integrity Administrator MI Mechanical Integrity Power
MI RBI Viewer	MI APM Viewer MI Mechanical Integrity Viewer
TM Security Groups
MI Thickness Monitoring Viewer	MI APM Viewer MI Mechanical Integrity Viewer
MI Thickness Monitoring User	MI Mechanical Integrity Administrator MI Mechanical Integrity Power MI Mechanical Integrity User
MI Thickness Monitoring Inspector	MI Mechanical Integrity Administrator MI Mechanical Integrity Power MI Mechanical Integrity User
MI Thickness Monitoring Administrator	MI Mechanical Integrity Administrator
Inspection Management Security Groups
MI Inspection	MI Mechanical Integrity Administrator MI Mechanical Integrity Power MI Mechanical Integrity User
MI Inspection Viewer	MI Mechanical Integrity Viewer MI APM Viewer

The following table provides a list of the baseline family-level privileges that exist for the MI RBI Administrator, MI RBI Analyst, and MI RBI Viewer Security Groups.

The baseline family-level privileges that exist for these Security Groups are summarized in the following table.


Family	MI RBI Administrator	MI RBI Analyst	MI RBI Viewer	MI Thickness Monitoring Viewer	MI Thickness Monitoring User	MI Thickness Monitoring Inspector	MI Thickness Monitoring Administrator	MI Inspection	MI Inspection Viewer
Fluid Data	View, Update, Insert, Delete	View, Update, Insert, Delete	View	View	View	View	View, Update, Insert, Delete	View, Update, Insert, Delete	View
Asset Technical Data	View, Update, Insert, Delete	View, Update, Insert, Delete	View	View	View	View	View, Update, Insert, Delete	View, Update, Insert, Delete	View
Compliance Recommendation Mapping	View, Update, Insert, Delete	View, Update, Insert, Delete	View	View	View	View	View, Update, Insert, Delete	View, Update, Insert, Delete	View
Inspection Summary Reference	None	None	View	None	None	View	None	View, Update, Insert, Delete	View
European Admin Settings	None	None	View	None	None	View	None	View, Update, Insert, Delete	View
