Data Models
Compliance Management Data Model

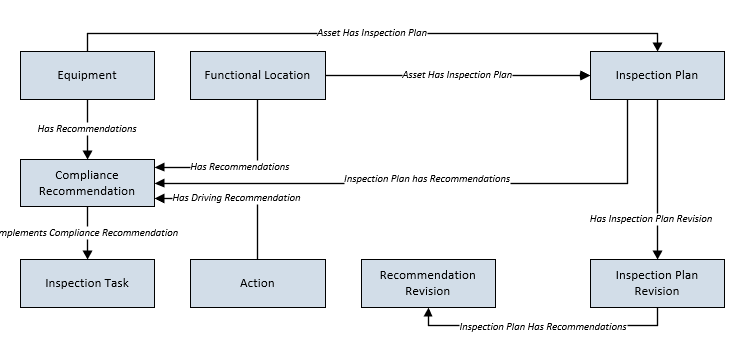

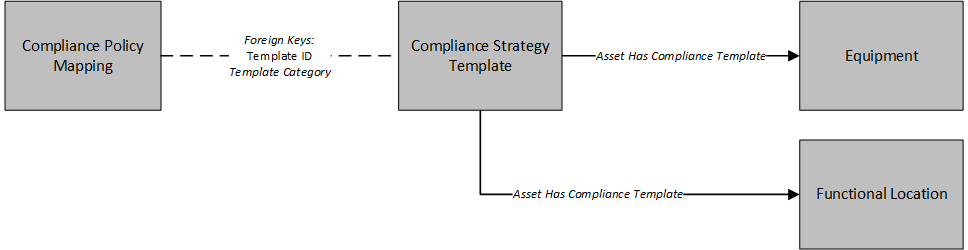

The following diagram illustrates how families are related within the Compliance Management data models. In the following images, boxes represent entity families, and arrows represent relationship families that are configured in the baseline database.
Asset Has Inspection Plan Relationship
The Asset Has Inspection Plan family links an asset to an Inspection Plan.
The table below provides a description of the relationship definitions that exist for the Asset Has Inspection Plan Relationships family.
This family is not enabled for site filtering, which means that records in this family can be accessed by any user with the appropriate license and family privileges. For more information, refer to the Sites section of the documentation.
| Predecessor | Successor | Cardinality |
|---|---|---|
| Equipment | Inspection Plan | One to One |
| Functional Location | Inspection Plan | One to One |
Inspection Plan Has Recommendations Relationship
The Inspection Plan Has Recommendations family links Compliance Recommendations to Inspection Plans. This family also links the Recommendation Revision and the Inspection Plan revision.
The table below provides a description of the relationship definitions that exist for the Inspection Plan Has Recommendations family.
This family is not enabled for site filtering, which means that records in this family can be accessed by any user with the appropriate license and family privileges. For more information, refer to the Sites section of the documentation.
| Predecessor | Successor | Cardinality |
|---|---|---|
| Inspection Plan | Compliance Recommendation | One to Many |
| Inspection Plan Revision | Recommendation Revision | One to Many |
Has Inspection Plan Revision Relationship
The Has Inspection Plan Revision family is a relationship family that links the Inspection Plan to the Inspection Plan revision.
The table below provides a description of the relationship definitions that exist for the Has Inspection Plan Revision family.
This family is not enabled for site filtering, which means that records in this family can be accessed by any user with the appropriate license and family privileges. For more information, refer to the Sites section of the documentation.
| Predecessor | Successor | Cardinality | Foreign Key |
|---|---|---|---|
| Inspection Plan | Inspection Plan Revision | One to Many | FK_HAIN_PR_INPL_INPL_R_N on the Inspection Plan Revision record. |
Implements Compliance Recommendation Relationship
The Implements Compliance Recommendation family links Compliance Recommendations to Inspection Tasks.
The table below provides a description of the relationship definitions that exist for the Implements Compliance Recommendation family.
This family is not enabled for site filtering, which means that records in this family can be accessed by any user with the appropriate license and family privileges. For more information, refer to the Sites section of the documentation.
| Predecessor | Successor | Cardinality |
|---|---|---|
| Inspection Task | Compliance Recommendation | One to One |
Has Driving Recommendation Relationship
The Has Driving Recommendation family links Compliance Recommendations to Actions.
The table below provides a description of the relationship definitions that exist for the Has Driving Recommendation family.
This family is not enabled for site filtering, which means that records in this family can be accessed by any user with the appropriate license and family privileges. For more information, refer to the Sites section of the documentation.
| Predecessor | Successor | Cardinality |
|---|---|---|
| Action | Compliance Recommendation | One to One |

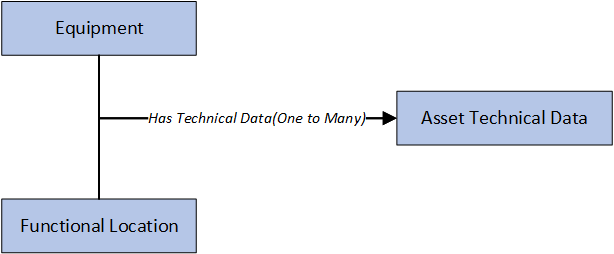

European Inspection Management Data Model
Has Technical Data Relationship
This relationship family is used to link Asset Technical Data to an Equipment or Functional Location.
