About RBI Components

In Risk Based Inspection, you can divide asset into components whose risk you want to analyze using an RBI 581 Risk Analysis. You can divide a piece of asset into components based on shared degradation mechanisms. Each sub-part of the asset that shares the same degradation mechanisms will belong to the same RBI Component.

In APM, the information related to an RBI component is stored in the following Criticality Calculator RBI Component records:

Criticality RBI Component - Cylindrical Shell
Criticality RBI Component - Exchanger Bundle
Criticality RBI Component - Exchanger Header
Criticality RBI Component - Exchanger Tube
Criticality RBI Component - Piping
Criticality RBI Component - Pump Compressor Casing
Criticality RBI Component - Tank Bottom
Criticality RBI Pipeline Segment (only if the Pipeline Management license is active)

Heat Exchanger

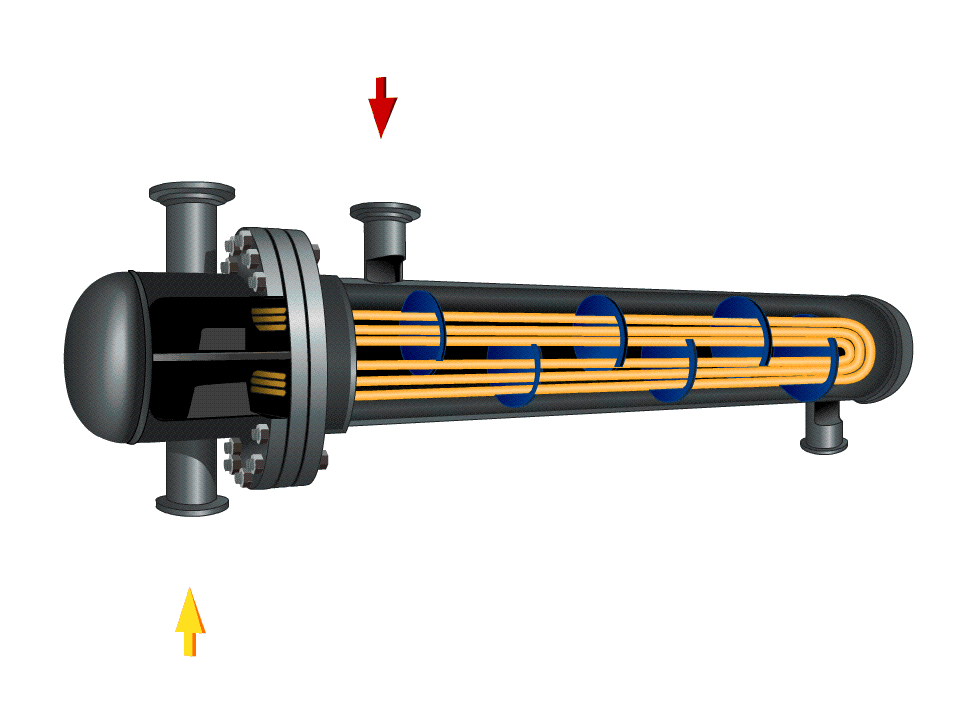

Consider a Heat Exchanger, which is a piece of asset that contains the following components:

A Cylindrical Shell that makes up the Heat Exchanger Shell section.
A Cylindrical Shell that makes up the Heat Exchanger Channel section.
Any number of small tubes that make up the Heat Exchanger Bundle section.

Each of the components can contain items such as Nozzles, Flanges, or Piping.

In RBI, to analyze the ways in which the exchanger can fail, you must divide the components into logical groups that represent common failure characteristics. Each group of components is a separate component and is represented by a single RBI Component record. Keep in mind that some of these groups are involved in the overhead system, and others are involved in the cooling water system.

For example, you might group the asset's components as follows:

Heat Exchanger Shell: Includes a cylindrical shell, an inlet nozzle, an outlet nozzle, and a head, often referred to as a shell cover. The Shell is part of the Cooling Water System (blue) because the purpose of the shell is to allow water to flow over the tubes and cool the process fluid running through the channel and bundle section of the exchanger.
Heat Exchanger Channel: Includes a cylindrical shell, an inlet nozzle an outlet nozzle and a flat head, often referred to as a dollar plate. The Channel is part of the OVHD System (yellow) because the purpose of the Channel is to funnel the process fluid in to the tubes and allow cooling of the process fluid running through the channel and bundle section of the exchanger.
Heat Exchanger Bundle: Includes tubes, baffles, and a tubesheet. The Bundle is part of the OVHD System (yellow) because the purpose of the bundle is to provide as much surface area as possible for the process fluid in to the tubes and allow cooling of the process fluid running through the bundle section of the exchanger.

If you create an RBI 581 Risk Analysis using this example, your database contains the following records:

Unit / Area (Functional Location record)
Overhead System (Corrosion Loop record)
Cooling Water System (Corrosion Loop record)
Heat Exchanger (Asset record)
Heat Exchanger Shell (Criticality Calculator RBI Components record)
Heat Exchanger Channel (Criticality Calculator RBI Components record)
Heat Exchanger Bundle (Criticality Calculator RBI Components record)

Note: If you have already created Functional Location records to represent the OVHD System and Cooling Water System using the recommended asset hierarchy, you must create additional Corrosion Loop records to represent these same systems. The existing Functional Location records need not be linked to the Corrosion Loop records.

About Integration with Thickness Monitoring (TM)

This topic has been intentionally excluded from the APM product documentation website. This topic is available to you via the product documentation that is provided within the APM system.

About Using TM Analysis Values at the Thickness Monitoring Location (TML) Group Level

This topic has been intentionally excluded from the APM product documentation website. This topic is available to you via the product documentation that is provided within the APM system.

About Using TM Analysis Values at the Asset Level

This topic has been intentionally excluded from the APM product documentation website. This topic is available to you via the product documentation that is provided within the APM system.

Access an RBI Component

Procedure

Access the Asset Summary workspace for the asset that contains the RBI Component that you want to access.

-or-

Access the Corrosion Loop that contains the RBI Component that you want to access.
Select the link to the component that you want to access.

-or-

In the left pane, select the component that you want to access.

The Component:<name> workspace for the selected component appears, displaying the COMPONENT OVERVIEW, COMPONENT DETAILS, and POTENTIAL DEGRADATION MECHANISMS sub-sections.
To access the datasheet for the RBI Component, expand the COMPONENT DETAILS sub-section.
The datasheet for the selected RBI Component appears.
Note: If needed, modify values in the available fields, and then select to save your changes.

Create an RBI Component

About This Task

This topic describes how to create a new RBI Component and link it to an Asset or a Corrosion Loop. You can also link an existing RBI Component to an Asset or a Corrosion Loop.

Procedure

Access the Asset Summary workspace of the asset in which you want to create an RBI Component.

-or-

Access the Corrosion Loop in which you want to create an RBI Component.
In the left pane, select , and then select Create New Component.
The Create New RBI Component window appears.
Enter values in the following fields:
- Asset: This field is automatically populated with the asset for which you are creating an RBI Component.
- Component Family: Select the component family for the Component that you want to create.
- Component Type: Select the component type for the RBI Component that you want to create.
  Note:
  - The Component Types in the Component Type drop-down list box are populated based on the Component Family selected in the Component Family drop-down list box. For more information on the baseline Component Families and the Component Types that are supported for each Component Family, refer to the MI RBI COMPONENT FAMILIES System Code Table topic.
  - You can use only the following component types with the component family Criticality RBI Component – Tank Bottom:
    Storage Tank Bottom
Select Create.
A new RBI Component is created and is automatically linked to the selected Asset and the Corrosion Loop. The Component Details section appears, displaying the component datasheet.
Enter values in the available fields.
In the RBI-581 section of the datasheet, enter values in the available fields.
In the upper-right corner of the datasheet, select .
The changes made to the RBI Component are saved.

Results

The RBI Component inherits linked Potential Degradation Mechanisms from the RBI Corrosion Loop.

What To Do Next

Link Potential Degradation Mechanisms (PDMs) to an RBI Component.

Access the Inventory Group of a Component

About This Task

You can also access all the inventory groups in a process unit.

Procedure

Access the Component that is linked to the inventory group.
In the upper-right corner of the page, select , and then select Inventory Group.
The RBI 581 Inventory Groups workspace appears on a new page, displaying the following information:
- If the component is linked to an inventory group, then the Inventory Group Configuration datasheet for the inventory group associated with the component appears.

  Tip: If you want to access a list of components linked to the inventory group, select the Linked Components tab.
- If the component is not linked to an inventory group, then the Process Units with Inventory Groups graphs appears. A list of process units appear in the left section in the workspace.

  Tip: If you are a member of the RBI Admin Security Group, you can create an Inventory Group Configuration record in the RBI 581 Inventory Groups workspace.

Link RBI Components to an RBI Corrosion Loop

About This Task

This topic describes how to link existing RBI Components to an Asset or Corrosion Loop. You can also create a new RBI Component.

Procedure

Access the Corrosion Loop that you want to link to an RBI Component.
In the left pane, select , and then select Link Existing Component.
The Select RBI Components window appears, displaying a list of components in the same site that are not linked to a Corrosion Loop.
Select the check boxes that correspond to the components that you want to link, and then select Done.
The selected RBI Components are linked to the Corrosion Loop.

Results

The PDMs that are linked to the Corrosion Loop are linked to the RBI Components, in addition to the ones that are directly linked to the component.

What To Do Next

Link Potential Degradation Mechanisms (PDMs) to an RBI Component.

Unlink an RBI Component from an RBI Corrosion Loop

Procedure

Access the Corrosion Loop from which you want to unlink the RBI Component.
In the left pane, select the RBI Component that you want to unlink from the Corrosion Loop, and then select .

-or-

Select the check box next to the RBI Component you want to unlink from the Corrosion Loop, and then select .

A message appears, asking you to confirm that you want to unlink the selected RBI Component.
Select Yes.

The RBI Component is unlinked from the selected Corrosion Loop.

Link Potential Degradation Mechanisms (PDMs) to an RBI Component

About This Task

If the RBI Component is linked to a Corrosion Loop, then all the PDMs linked to the Corrosion Loop are also linked to the Component. You can, however, link additional PDMs to the Component.

This topic describes how to link one or more PDMs to an RBI Component. You cannot create PDMs; you can only link them. Therefore, a PDM must already exist to be linked to an RBI Component.

Procedure

Access the RBI Component to which you want to link PDMs.
Expand the POTENTIAL DEGRADATION MECHANISMS section.
The list of PDMs linked to the RBI Component appears.
Select .
A list of PDMs appears, displaying the methodology type of each PDM.
Tip: If you select the link that corresponds to a PDM, the PDM record appears in Record Explorer on a new page.
Next to each PDM that you want to link to the RBI Component, select the check box, and then select OK.
The selected PDMs are linked to the RBI Component.
Note: PDMs that can be used with an RBI 581 Risk Analysis contain a 581 prefix (e.g., 581-Amine Cracking).

Suggest and Link PDMs to an RBI Component

Before You Begin

Ensure Enable Suggestion of Potential Degradation Mechanism is selected in the Global Preferences Workspace.

About This Task

The APM provides an option to automatically suggest Potential Degradation Mechanisms (PDMs) based on criteria provided in the RBI Component fields. User can then decide whether to link the suggested PDMs to the RBI Component. The suggestions are generated using the RBI Degradation Mechanism Screening Policy. Screening criteria for each PDM is referred from API 581 and API 571. Both the documents are recommended practices and provides guidelines on how to screen components for individual degradation mechanism.

Additional guidelines or good engineering practices defined within these documents are not made mandatory for suggestion purposes. Also, customers might be defining screening criteria based on historical data. Customers requiring these additional guidelines to be included for suggesting PDMs can make suitable changes to the policy. For more information, refer Policies Used to Suggest PDMs topic.

The baseline policy suggests the following Thinning and Lining Damage Mechanisms for the components based on the criteria.

581-Atmospheric Tank Bottom Corrosion
581-Cooling Water Corrosion
581-Soil Side Corrosion
581-Internal Component Lining Damage
581-High Temperature Oxidation
581-High Temperature Sulfidic and Naphthenic Acid
581-Sulfuric Acid Corrosion
581-Hydrofluoric Acid Corrosion
581-Hydrochloric Acid Corrosion

Note:

You can add sub-policies for each degradation mechanism type that you want to automatically suggest in the RBI Degradation Mechanism Screening Policy.

This topic describes how to use the suggested PDMs to link to an RBI Component.

Procedure

Access the RBI Component to which you want to suggest PDMs.
Expand the POTENTIAL DEGRADATION MECHANISMS section.
The list of PDMs linked to the RBI Component appears.
Select Suggest PDMs.

Note: Before performing this step, you must provide all field values that are used as a criteria for suggestion in the associated RBI Component datasheet.
The list of suggested PDMs appears, displaying the reasons for the suggestions.
Note:
- By default, all suggested PDMs will be selected to link to the RBI Component.
- You can deselect the PDMs which you do not want to link to the RBI Component.
- You cannot deselect the PDMs that are already linked to the RBI Component.
- Suggestion basis is set from the return nodes in RBI 581 DM Screening - Thinning and Lining Policy and the numerical values will be in imperial UOM.
Select Link.
The suggested PDMs are linked to the RBI Component.

What To Do Next

Create an RBI 581 Risk Analysis.

Unlink a Potential Degradation Mechanism (PDM) from an RBI Component

Procedure

Access the RBI Component from which you want to unlink a PDM.
Expand the POTENTIAL DEGRADATION MECHANISMS section.
The list of PDMs linked to the RBI Component appears.
Select the row that contains the PDM you want to unlink from the RBI Component, and then select .
A message appears, asking you to confirm that you want to unlink the selected PDM.
Select Yes.
The PDM is unlinked from the RBI Component.

Link an RBI Component to a TML Group

Before You Begin

The value in the Source of Calculated Corrosion Rates field in the RBI Component must be Component.
The parent Asset of the RBI Component must not be a Thickness Monitoring Piping Asset.
You must have an active license for the Thickness Monitoring module.

Procedure

Access the RBI Component to which you want to link a TML group.
In the upper-right corner of the workspace, select .
The Manage TML Groups window appears.
Next to the TML Groups that you want to link to the RBI Component, select the check boxes, and then select OK.
The selected TML Groups are linked to the RBI Component.
Note: If the Source of Calculated Corrosion rate is set to Asset or Component on the related component and the related TML asset has more than 1000 TMLs where the related TML Corrosion Analysis has not been calculated, you need to calculate the asset in the Thickness Monitoring module before continuing.

Results

An RBI Component linked to a TML Group inherits the TM corrosion rate values from the TML Group. If the component contains an RBI 581 Thinning and Lining Damage Mechanism Evaluation, the resulting damage factor value will be based on the corrosion rate determined by the value in the Selected Corrosion Rate field.

Apply an RBI Component

About This Task

When you apply an RBI Component, you make a copy of the original record. The applied RBI Component is not automatically linked to the original RBI Component's Corrosion Loop. Instead, the applied RBI Component can be linked to the same or a different asset and then to a Corrosion Loop.

Procedure

Access the RBI Component that you want to apply.
In the upper-left pane of the page, select .
The Hierarchy Finder window appears.
Navigate through the Hierarchy Finder to select the asset to which you want to apply the RBI Component.
Select OK.
The RBI Component is applied to the selected asset.

What To Do Next

Link RBI Components to an RBI Corrosion Loop

Inactivate an RBI Component

About This Task

You can now inactivate an RBI Component. When you do so, the following changes occur:

The icon for the RBI Component changes to in the RBI Tree.
The value in the Component Status field is set to Inactive.
The state of the RBI Analyses in the RBI Component are set to Archived (only if there is a valid operation from the current state of the analyses to Archived).
The RBI Recommendations linked to the archived analyses are set to Archived. If, however, an RBI Recommendation is in the Consolidated or Superseded state, it is not set to Archived - only the master Recommendation is archived in this case.
If the Asset associated with the RBI Component contains an Inspection Plan in the Approved sate, it is changed to the Modified state. If, however, the Use Alternative Inspection Plan Process feature is enabled, the Inspection Plan will not be changed to the Modified state; you must update the Inspection Plan to regenerate the Inspection Plan details.
Risks linked to the Asset Strategy of the associated Asset are deleted.

Important:

You cannot reactivate an RBI Component.
You cannot inactive an RBI Component if the associated Asset contains an Asset Strategy in the Pending Review state.

Procedure

Access the Asset Summary workspace of the Asset associated with the RBI Component that you want to inactivate.
In the left pane, select the RBI Component that you want to inactivate.
Select .
A message appears, asking you to confirm that you want to inactivate the RBI Component.
Select Yes.
The RBI Component is inactivated. In the RBI Tree, the icon appears for the RBI Component, indicating that it is now inactive.
Note: If the inactivated RBI Component is linked to an inventory group, all the RBI 581 Risk Analyses related to the RBI Components linked to the same inventory group will be marked for recalculation (that is, the button turns orange).

Delete an RBI Component

Before You Begin

Procedure

Access the Asset Summary workspace of the asset that is linked to the RBI Component that you want to delete.

-or-

Access the Corrosion Loop that is linked to the RBI Component that you want to delete.
In the left pane, select the RBI Component that you want to delete.
Select .

A message appears, asking you to confirm that you want to delete the selected RBI Component.
Select Yes.

The RBI Component is deleted, and all links to existing related entities are removed.

View RBI Component in the Unit Summary Workspace

Before You Begin

To view the RBI Component in the Unit Summary Workspace, the RBI Component you have selected must be linked to an RBI Corrosion Loop.

Procedure

Access the Asset Summary workspace of the asset that is linked to the RBI Component that you want to view in the Unit Summary.
In the left pane, select the RBI Component that you want to view in the Unit Summary.
Select .
The RBI Component is displayed within the Unit Summary workspace. The left pane will be reloaded to show the components’ parent corrosion loop and the related Process Unit.

View RBI Component in the Asset Summary Workspace

Procedure

Access the Corrosion Loop that is linked to the RBI Component that you want to view in the Asset Summary.
In the left pane, select the RBI Component that you want to view in the Asset Summary.
Select .
The RBI Component is displayed within the Asset Summary workspace. The left pane will be reloaded to show the components’ parent RBI asset.
