Install and Configure Southbound Service

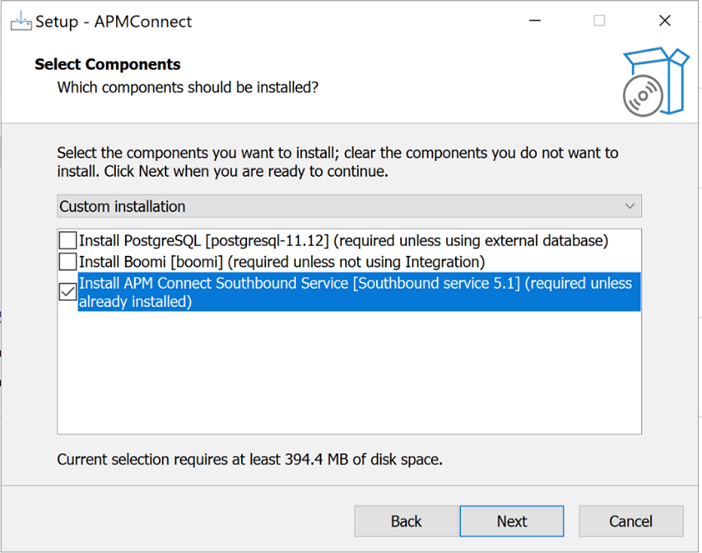

1. Install PostgreSQL: Used for the Intermediate Repository. Clear the checkbox if already in use.
2. Install Boomi: Select if Boomi is used without internet connectivity.
3. Install APM Connect Southbound Service: Select for the Southbound Interfaces.



• Logging: Logging Level
• FileWSDL: Contains the configuration for the EAM file receiver.
• AppConfiguration section contains the following parameters:
  • IR staging Database information (ADL 4.6 APM, General Recommendation)
    • IR_Host
    • IR_Port
    • IR_Database
    • IR_Schema
    • IR_UserId
    • IR_Password
  • ADL configuration
    • Default_Base_Directory - This is for the CSV file share for the DL between APM and the APMC Southbound Service.
    • Directory_Path - For the ADL root folder of the Scan and Archive.
    • Polling_Frequency_In_MilliSeconds
    • Max_File_Size_In_Bytes
    • Max_Filename_Length
    • Valid_Extensions
    • Valid_Zip_Extensions
  • APM (Application Server) configuration (ADL,V5 Audit JOB)
    • Apm_Api_Test_Path
    • Web_Api_Path
    • DatasourceId
    • Id. (user-id)
    • Password
  • EAM Server Connection Type Configuration (GENERAL RECOMMENDATION,WORKORDER GENERATION)
    • Sap_Connection_Type (Application/Message)
    • Use_API_Key (True/false)
    • API_Key
  • APM Application ActiveMQ Credentials - For the v5 Audit Job (Applicable only for OnPrem)
    • ActivemqName (Queue name were the Asset Ingestion Completion Messages are posted by the Ingestor)
    • ActivemqUri
    • ActivemqUsername
    • ActivemqPassword
  • UAA configuration (Applicable only for cloud)
    • Uaa_Token_Url
    • Uaa_Username
    • Uaa_Password
    • Uaa_Client_Id
    • Uaa_Client_Secret
    • Use_OAuth
  • Websocket Configuration (Application only for Cloud)
    • WebSocket_Api_Path. e.g., ws://localhost:5020/api/v1
  • Ingestor Configuration
    • Ingestor_Api_Path

 "Kestrel": {
    "Endpoints": {
      "HttpsDefaultCert": {
        "Url": "https://test.domain.com:5013"
      }
    },
    "Certificates": {
      "Default": {
          "Path": "C:\\temp\\meridium_SAN_04212024.pfx",
          "Password": "K2p8HBxb"
      }
    }
},

"ASPNETCORE_URLS": "https://+:5013"

1. archiveFileName: Specify the location and name of the archived file.
2. archiveEvery: Define a time interval for the archival of logs.
3. maxArchiveDays: Set the number of days the file will remain archived before deletion.
4. archiveNumbering: Define the format of the archive file name, replacing {#} in archiveFileName.
5. archiveAboveSize: Set the threshold value (in bytes) for log file size, triggering the generation of a new log file.

<target xsi:type="File" name="allfile" fileName="c:\ProgramData\Meridium\Logs\APM.Connect.Southbound_${shortdate}.log"
    layout="${longdate}|${uppercase:${level}}|${mdlc:item=TenantId:whenEmpty=na}|${logger}|${message} ${exception}"
    archiveFileName="c:\ProgramData\Meridium\Logs\APM.Connect.Southbound_${shortdate}.{#}.log"
    archiveEvery="Day" maxArchiveDays="30" archiveNumbering="DateAndSequence" archiveAboveSize="2000000"/>
