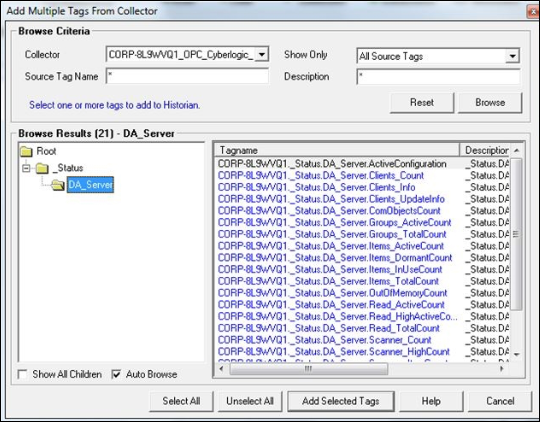

Hierarchical Custom Controller Browsing

Example

The following sample program helps you understand the ihCollectorToolkitPreInitialize function.

Historian expects Custom Collector Pre-Initialization information from the user. For example, custom collector can browse tags, collector type and so on.

/// </summary>
/// <param name="PreCfg">Collector Pre - Configuration information structure</param>
/// <param name="Cfg">Collector Configuration information structure</param>
void RandomValueSimulator::ihCollectorToolkitPreInitialize(ihInterfaceTKPreCfgInfo *PreCfg, ihInterfaceTKCfgInfo *Cfg)
{
// Initializes General1-5 values, here General1,2 were initialized with 1000, 60.
Cfg->CustomProp1 = TKStrdup(_T("1000"));
Cfg->CustomProp2 = TKStrdup(_T("60"));
// Historian follows representation of the collectors in the form of ComputerName_CollectorName, Tags in the form of ComputerName.TagName.
// In the following section custom collector is trying to get the computer name.
CString ComputerName, IP;
TKGetHostNameAndIP(ComputerName, IP);
if (ComputerName.GetLength() >; 0)
{
ComputerName.Append(_T("."));
wcscpy_s(Cfg->;DefaultTagPrefix, ComputerName.GetBuffer());
}
RandPreCfg = *PreCfg;
RandPreCfg.CanSendOPCQuality = TRUE; // to send OPC Quality
RandPreCfg.InterfaceType = ihTKCustom; // interface type
RandPreCfg.MultipleInstancesAllowed = FALSE;
RandPreCfg.MinimumInterval = RandMinimumInterval;
RandPreCfg.MaxTagsPerRead = MaxTagsPerGroup;
RandPreCfg.CanReadASync = TRUE;// to read tags Asynchronously
RandPreCfg.CanBrowseSource = TRUE;// you can browse the collector
RandPreCfg.CanSourceTimestamp = TRUE;// collector sends data containing source time stamp or server time stamp
RandPreCfg.ForceInputScaling = FALSE;
RandPreCfg.NeedMsgPump = FALSE;
RandPreCfg.ForcedScaleLO = 0.0; // Low engineering unit
RandPreCfg.ForcedScaleHI = (float) RAND_MAX;// High engineering unit
RandPreCfg.DoesReloadMode = FALSE;
RandPreCfg.DoesLagTimes = FALSE;
RandPreCfg.CanBrowseHierarchical = TRUE;
*PreCfg = RandPreCfg;
}

For the ihCollectorToolkitInitialize function:

Collector Initialization
/// </summary>
/// <param name="Cfg">Collector Configuration information</param>
/// <param name="PreCfg">Collector Pre-Configuration Information</param>
/// <param name="ErrorMsg">Error Message while initializing</param>
/// <param name="ErrorMsgSize">Size of Error Message</param>
/// <param name="RegKeyName">modification required registry keys, if any </param>
/// <param name="Callbacks">Callbacks of all the asynchronous methods</param>
/// <param name="DoDebug">debug param</param>
/// <returns>status of the method call</returns>
int RandomValueSimulator::ihCollectorToolkitInitialize(ihInterfaceTKCfgInfo *Cfg,
ihInterfaceTKPreCfgInfo *PreCfg, wchar_t *ErrorMsg, int ErrorMsgSize, wchar_t *RegKeyName, ihCollectorToolkitCallback *Callbacks, int DoDebug)
{
// updates configuration information to collector
ihCollectorToolkitPropertyUpdate(Cfg);
TKFree(TagPrefix);
// Historian follows representation of Tags in the form of ComputerName.TagName.
TagPrefix = TKStrdup(Cfg->DefaultTagPrefix);
Cfg->DoOnFly = 1;
// Initializes error msg to ""(NULL)
ErrorMsg = TKStrdup(_T(""));
srand((unsigned) time(NULL));
RandCfg = *Cfg;
g_Callbacks = Callbacks;
return(TRUE);
}

Example

The following sample helps you understand the given callback functions.

The collectors maintains the polled tag details in the local Cache as:

map<int, ihInterfaceTKPolledTagInfo> TagIdToTagInfoMap;

This map is filled using this sample example:

/// Polled tags initialization started
/// </summary>
/// <returns>TRUE/FALSE</returns>
int RandomValueSimulator::ihCollectorToolkitPolledInit(void)
{
TagIdToTagInfoMap.clear();
return CCollectorDelegator::ihCollectorToolkitPolledInit();
}
??
---------------------------------------------------------------------
??
/// <summary>
/// Historian updating the source saying that, polled tags initialization successful.
Are there any initialization from source for polled tags?
/// <summary>
/// <returns>TRUE/FALSE</returns>
int RandomValueSimulator::ihCollectorToolkitPolledInitCompleted(void)
{
return CCollectorDelegator::ihCollectorToolkitPolledInitCompleted();
}
??
---------------------------------------------------------------------
??
/// <summary>
/// Adds polled tag to the historian from source
/// </summary>
/// <param name="PolledTag">ihInterfaceTKPolledTagInfo instance</param>
/// <param name="IsCollectorStarting">collector status</param>
/// <returns>TRUE/FALSE</returns>
int RandomValueSimulator::ihCollectorToolkitPolledAddTag(ihInterfaceTKPolledTagInfo
*PolledTag, int IsCollectorStarting)
{
TagIdToTagInfoMap.insert(std::pair<int, ihInterfaceTKPolledTagInfo>
(PolledTag-<TagId, *PolledTag));
return CCollectorDelegator::ihCollectorToolkitPolledAddTag(PolledTag,
IsCollectorStarting);
}
??
-----------------------------------------------------------------------
??
/// <summary>
/// Deleted polled tag from Historian from Client Tools/non web admin/external tools
/// <summary>
/// <param name="tagId">Tag Identification</param>
/// <returns>TRUE/FALSE</returns>
int RandomValueSimulator::ihCollectorToolkitPolledDeleteTag(int tagId)
{
TagIdToTagInfoMap.erase(TagIdToTagInfoMap.find(tagId));
return CCollectorDelegator::ihCollectorToolkitPolledDeleteTag(tagId);
}

Example

The following sample helps you understand the given callback functions. The below sample code creates a thread for simulating the Unsolicited tag's collector behavior.

//This structure is the list of Unsolicited Tags.
struct AsyncTagList : public CList<ihInterfaceTKASyncTagInfo*, ihInterfaceTKASyncTagInfo*>
{
virtual ~AsyncTagList()
{
FreeAll();
}
void AddTag(ihInterfaceTKASyncTagInfo* tag)
{
ihInterfaceTKASyncTagInfo* info = new ihInterfaceTKASyncTagInfo;//need to allocate in delegator
memcpy(info, tag, sizeof(ihInterfaceTKASyncTagInfo));
AddTail(info);
}
void FreeAll()
{
while (!IsEmpty())
delete RemoveHead();
}
};
AsyncTagList g_AsyncTags;
??
----------------------------------------------------------------------------
??
/// <summary>
/// Initializes unsolicited tags, by creating dedicated thread
/// <summary>
/// <returns></returns>
int ??????RandomValueSimulator::ihCollectorToolkitASyncInit(void)
{
??????????????CSingleLock lock(&g_Sync, TRUE);
??????????????g_AsyncTags.FreeAll();
??????????????if (!g_AsyncThread)
????????????????????????????g_AsyncThread = AfxBeginThread(TKAsyncReadFunc, this);
??????????????return TRUE;
}
??
----------------------------------------------------------------------------
??
/// <summary>
/// unsolicited tags initialization completed
/// <summary>
/// <returns>TRUE/FALSE</returns>
int ??????RandomValueSimulator::ihCollectorToolkitASyncInitCompleted(void)
{
??????????????return TRUE;
}
??
------------------------------------------------------------------------------
??
/// <summary>
/// Custom Collector Initialization completed and is ready to read data from Source for unsolicited tag
/// <summary>
/// <returns>TRUE/FALSE</returns>
int ??????RandomValueSimulator::ihCollectorToolkitASyncStartReading(void)
{
??????????????InterlockedExchange(&g_DoAsyncRead, TRUE);
??????????????return TRUE;
}
??
------------------------------------------------------------------------------
??
/// <summary>
/// Adds unsolicited tag to the historian
/// <summary>
/// <param name="ASyncTag">ihInterfaceTKAsyncTagInfo pointer</param>
/// <param name="IsCollectorStarting">Current Status of the Collector</param>
/// <returns>TRUE/FALSE</returns>
int ??????RandomValueSimulator::ihCollectorToolkitASyncAddTag(ihInterfaceTKASyncTagInfo *ASyncTag, int IsCollectorStarting)
{
??????????????CSingleLock lock(&g_Sync, TRUE);
??????????????g_AsyncTags.AddTag(ASyncTag);
??????????????return TRUE;
}
??
-------------------------------------------------------------------------------
??
/// <summary>
/// From Clients tools/non-web admin/custom tools, if user deletes a tag, historian updates custom collector saying that tag got deleted.
/// So that, custom collector stops collecting data from source for that tag
/// <summary>
/// <param name="tagId">Tag Identifier</param>
/// <returns>TRUE/FALSE</returns>
int ??????RandomValueSimulator::ihCollectorToolkitASyncDeleteTag(int tagId)
{
??????????????CSingleLock lock(&g_Sync, TRUE);
??????????????POSITION pos = g_AsyncTags.GetHeadPosition();
??????????????while (pos)
??????????????{
????????????????????????????ihInterfaceTKASyncTagInfo * tagInfo = g_AsyncTags.GetAt(pos);
????????????????????????????if (tagInfo->TagId == tagId)
????????????????????????????{
??????????????????????????????????????????g_AsyncTags.RemoveAt(pos);
??????????????????????????????????????????return TRUE;
????????????????????????????} ??????????????
????????????????????????????g_AsyncTags.GetNext(pos);
??????????????}
??????????????return TRUE;
}
??
--------------------------------------------------------------------------------
??
/// <summary>
/// This method called by historian, if it needs to perform any calculations on source data. This method is only usefull in "Calculation collector" way of collection for unsolicited tags
/// <summary>
/// <param name="StartTime"> start time for reload</param>
/// <param name="EndTime"> end time for reload</param>
/// <returns>TRUE/FALSE</returns>
int RandomValueSimulator::ihCollectorToolkitASyncReload(ihTKTimeStruct *StartTime, ihTKTimeStruct *EndTime)
{
??????????????return CCollectorDelegator::ihCollectorToolkitASyncReload(StartTime, EndTime);
}
??
-------------------------------------------------------------------------------
??
/// <summary>
/// Unsolicited dedicated thread corresponding method. Here all unsolicited tags get data from source(usually, way should be source notification to historian) and sends to historian
/// <summary>
/// <param name="param"> Collector instance </param>
UINT RandomValueSimulator::TKAsyncReadFunc(void* param)
{
??????????????POSITION pos = NULL;
??????????????RandomValueSimulator* pColl = (RandomValueSimulator*) param;
??????????????while (TRUE)
??????????????{
????????????????????????????if (g_DoAsyncRead)
????????????????????????????{
??????????????????????????????????????????CSingleLock lock(&g_Sync, TRUE);
??????????????????????????????????????????if (!g_AsyncTags.IsEmpty())
??????????????????????????????????????????{
??????????????????????????????????????????????????????// gets each unsolicited tag into ihInterfaceTKAsyncTagInfo object
??????????????????????????????????????????????????????if (!pos)
????????????????????????????????????????????????????????????????????pos = g_AsyncTags.GetHeadPosition();
??????????????????????????????????????????????????????ihInterfaceTKASyncTagInfo* tag = g_AsyncTags.GetNext(pos);
??????????????????????????????????????????????????????int numTags = 1;
??????????????????????????????????????????????????????ihInterfaceTKDataInfo data;
??????????????????????????????????????????????????????memset(&data, 0, sizeof(ihInterfaceTKDataInfo));
??????????????????????????????????????????????????????data.Tag = pColl->TKStrdup(tag->Tag);
??????????????????????????????????????????????????????data.DataProp.ValueDataType = tag->DataType; ????????????????????????????????????????????????
??????????????????????????????????????????????????????data.DataProp.TimeStamp = pColl->TKGetSystemTime();
??????????????????????????????????????????????????????// gets data for selected tag
??????????????????????????????????????????????????????pColl->ihCollectorToolkitGetData(0, 0, 0, numTags, NULL, &data);
??????????????????????????????????????????????????????unsigned long collectionTime = (unsigned long)time(0);
??????????????????????????????????????????????????????int tagId = tag->TagId;
????????????????????????????????????????????????????????ihInterfaceTKASyncData asyncData;
??????????????????????????????????????????????????????memset(&asyncData, 0, sizeof(ihInterfaceTKASyncData));
??????????????????????????????????????????????????????asyncData.NumValues = numTags;
??????????????????????????????????????????????????????asyncData.TagIds = &tagId;
??????????????????????????????????????????????????????asyncData.Values = &data.DataProp;
??????????????????????????????????????????????????????asyncData.CollectionTimes = &collectionTime;
??????????????????????????????????????????????????????// sends to historian
??????????????????????????????????????????????????????pColl->ihCollectorToolkitDataCallback(&asyncData);
??????????????????????????????????????????}
??????????????????????????????????????????else
??????????????????????????????????????????{
??????????????????????????????????????????????????????pos = NULL;
??????????????????????????????????????????}
????????????????????????????}
????????????????????????????else
????????????????????????????{
??????????????????????????????????????????pos = NULL;
????????????????????????????}
????????????????????????????long sleepTimeInMs = 500 + (rand() % 46) * 100; // sleep from 0.5 to 5 seconds
????????????????????????????Sleep(sleepTimeInMs);
??????????????}
??????????????return 0;
}
