Create an Unsolicited Trigger

Procedure

  1. Access Configuration Hub.
  2. In the NAVIGATION section, under the Configuration Hub plugin for Historian, select Tags.
    A list of tags appears.
  3. From the list of tags, select the Python collector tag (say, SamplePythonCollector).

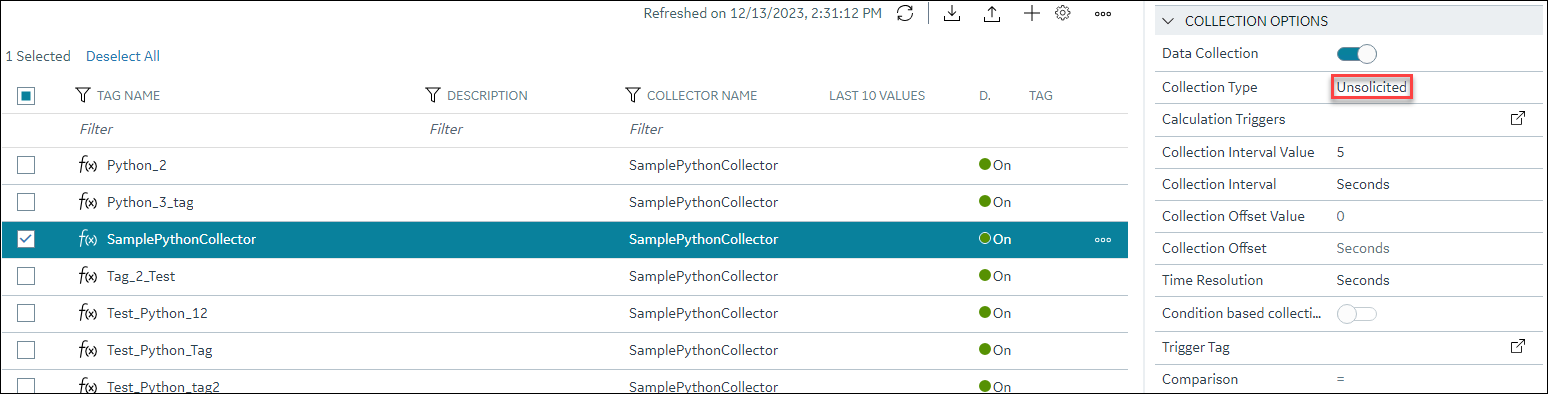

  4. In DETAILS, in the Collection Options section, select Unsolicited from Collection Type.
  5. Select Calculation Triggers and select .

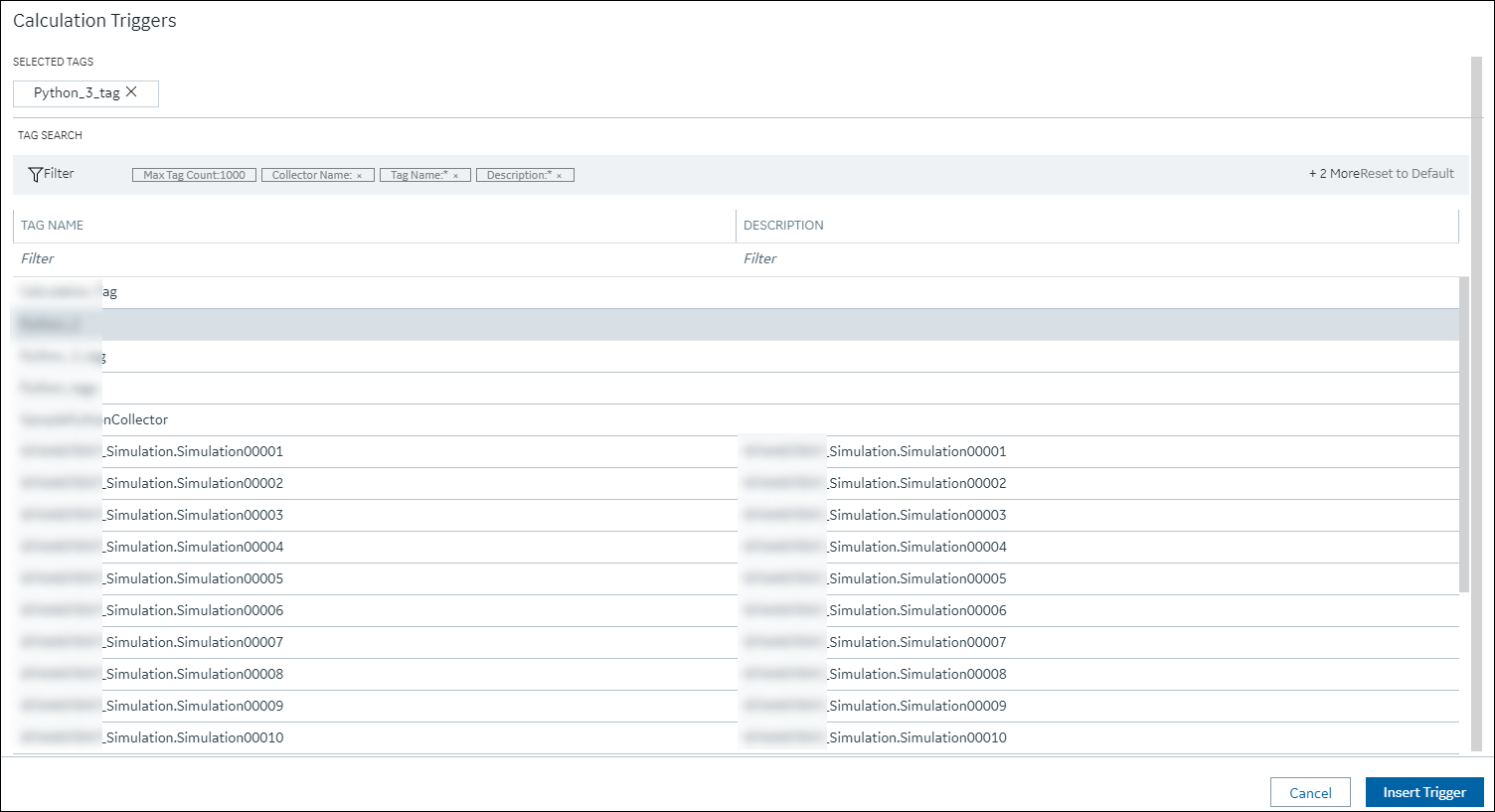

    The Calculation Triggers window appears.
  6. Search for tags or select tags from the list as trigger tags.
  7. You can remove the selected tags by selecting X from the Selected Tags list.
  8. Select Insert Trigger.
    The trigger tag count will be displayed.

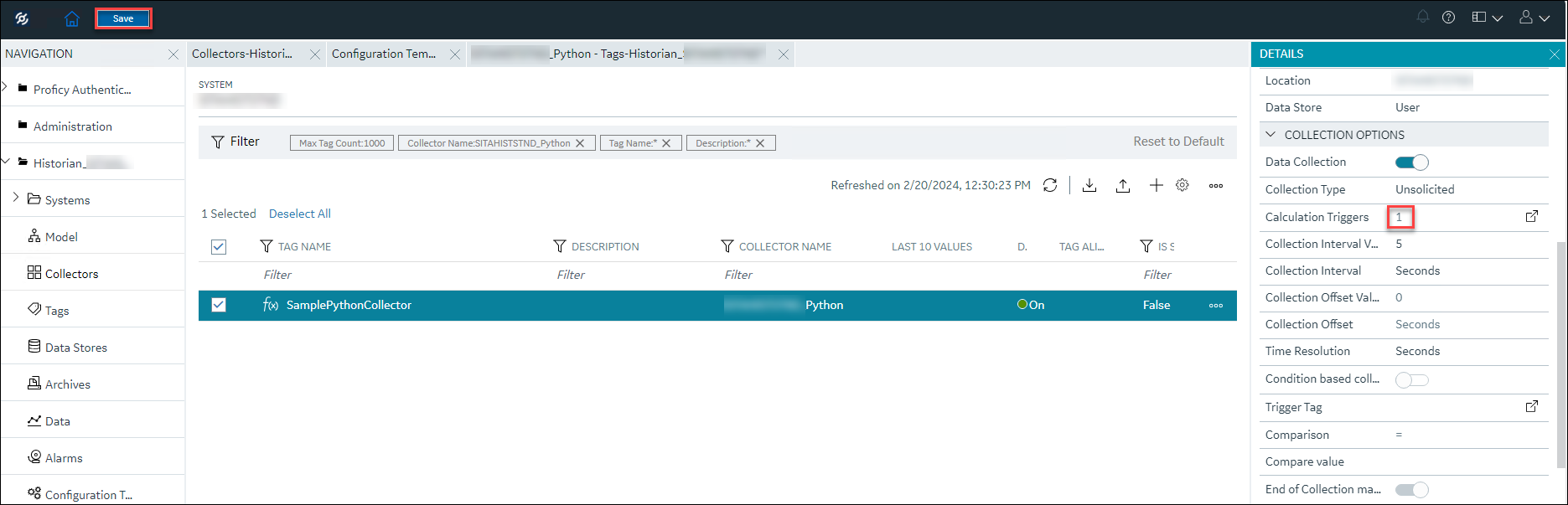

  9. In the upper left corner of the page select Save.
    The triggers are created.
