Provide Data for a Static Variable

About this task

A static variable contains a fixed value. Therefore, when you create an object instance, you can access the variable, and provide its value.

Procedure

  1. Access Configuration Hub.
  2. In the NAVIGATION section, under the Configuration Hub plugin for Historian, select Model. Alternatively, you can select Systems, and then in the row containing the system in which you want to create a model, select , and then select Browse Model.
    The Model section appears.

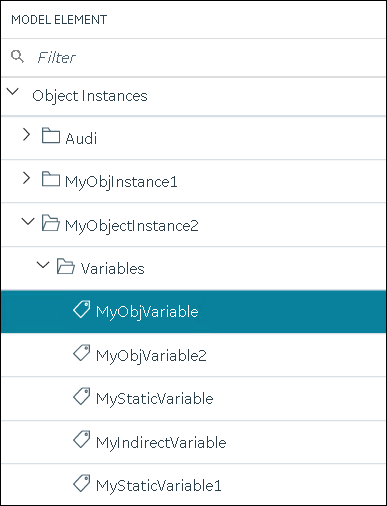

  3. Under Object Instances, expand the object instance, expand Variables, and then select the variable whose data you want to provide.
    The details of the variable appear in the DETAILS section.
    Note: If the DETAILS section does not appear, in the upper-right corner of the page, select , and then select DETAILS.

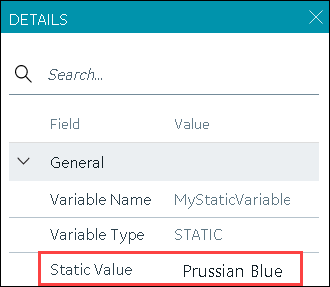

  4. In the DETAILS section, in the Static Value field, enter the value that you want to provide for the variable, and then press ENTER.
  5. In the upper-left corner of the page, select Save.
    The value for the variable is saved.
