Tenant Preferences

You can configure the display preferences for all the users of the tenant.

1. In the module navigation menu, select Administration > Tenant Preferences.
   The Tenant Preferences page appears.
2. Select the Display tab.
3. As needed, enter the values in the following fields.

   Field Names	Description
   Asset Display Name	Displays the name of the asset based on the following options: GE: Displays the asset name. By default, this option is selected. Customer: Displays the alias name of the asset that you provided. This name appears on the Asset page. Select the () button to switch between GE and Customer name.
   Culture Setting	Identifies the preferred culture of the user. This setting determines the date and number formats that are displayed when the user signs in to Predix Essentials.
   Language	Determines the display language. By default, US English is selected. You can select the preferred language from the following options: Chinese (Simplified) Dutch (Netherlands) French (France) German (Germany) Italian (Italy) Japanese Polish Portuguese (Brazil) Russian Spanish (Spain) US English
   System of Measure	Determines the system of measure. You can select your preferred system of measure in the drop-down list box. Note: The values in the drop-down list box appear based on the values that you configure in the Systems of Measure Configuration section. None and Metric are the system-provided system of measures, and by default, None is selected.
   TimeZone	Determines the time zone of your location. You can select your preferred time zone from the drop-down list box. If you select Site Local as your preferred time zone, all the date or time values will be converted to the time zone of your asset. Note: The selected time zone affects only this application. Any selected time zone that observes Daylight Savings Time automatically observes the local time.

4. Select Save.
   A message appears, indicating that the changes will take effect after you log out and then log in to the application.
5. Select OK.

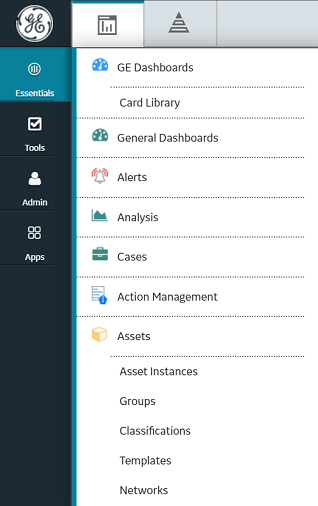

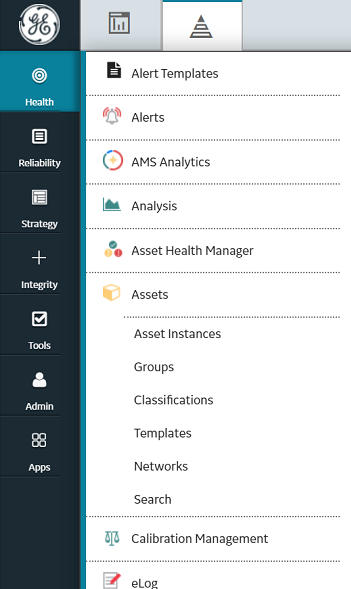

A navigation profile contains information about the set of menu items that should appear in the module navigation menu.

1. In the module navigation menu, select Administration > Tenant Preferences.
   The Tenant Preferences page appears.
2. Select the Module Navigation tab.
   The Module Navigation section appears.
3. In the Select a Navigation Profile drop-down list box, select the products that you want to appear in the module navigation menu.
   Note: If you select a navigation profile other than the default navigation profile, only the module navigation menu configured for that profile appears. You cannot access custom applications using the menu.

   or

   Select Reset Module Navigation Settings to Default.

   Note: This setting shows menu items that are based on your permissions.
   A message appears, stating that your changes are saved. This configuration is applied to all the users of the tenant.

   Note: You can access only the menu items for which you have permission to access.

You can configure the SmartSignal chart and marker preferences for all the SmartSignal users of the tenant.

1. In the module navigation menu, select Administration > Tenant Preferences.
2. Select the SmartSignal Chart and Marker Settings tab.
3. As needed, select to enable or disable settings for the following options.

   Option

   Description

   SmartSignal Chart and Marker Settings

   Customizes the SmartSignal markers and applies the changes to all templates in their possessions. You can select marker, color, or position from the drop-down list. You can also select the stacking order number. The order numbers are one through five. One being the top-most position in the stack, and five being the bottom-most in the stack. More than one type of marker can be placed in a lane. For more information on each of the options, see the Reference section in the SmartSignal documentation. You can select from the following options: Diagnostic Rule Adaptation Successful Adaptation Inhibit NaN Outlier VSG Single Point Excursion Tag Level Rules Default

4. Select Save.
   A message appears, indicating that the changes will take effect after you log out and then log in to the application.
5. Select User Preferences.
6. As needed, select to enable or disable settings for the following options.

   Option	Description
   Diagnostic Rule Adaptation Successful Adaptation Inhibit NaN Outlier VSG Single Point Excursion Tag Level Rules Default Actual Estimate Residual Smooth Actual Smooth Residual	For more information on each of the options, see the Reference section in the SmartSignal documentation.

7. Select OK.
8. Optionally, select Restore Defaults to revert the entire table to its original state.

You can use the Enable numeric data for CBF option to consider only the numeric tags when using the conditional filtering functionality. This option does not consider the incorrectly configured (string) tags. When the Enable numeric data for CBF option is selected, while using the conditional filters functionality, you can see the slider for a tag or tag expression for you to select the minimum and maximum values. When the Enable numeric data for CBF option is not selected, while using the conditional filters functionality, the data for the string tags is displayed in a drop-down list box instead of a slider.

1. In the module navigation menu, select Administration > Tenant Preferences.
2. Select the SmartSignal Marker Configuration tab.
3. Under the Plotting Preferences section, select Enable numeric data for CBF.
4. Select Apply.
