Unified Asset Ingestion Data Loader

About the Unified Asset Ingestion Data Loader

The Unified Asset Ingestion data loader allows a user to import data from an Excel workbook to populate Predix Essentials with equipment and functional location data.

Important:

In Predix Essentials, you should use this data loader to load equipment and functional location data into the database.
The Unified Asset Ingestion data loader should not be used for:
- File sizes greater than 10 MB in a single load.
- Greater than 10,000 records in a single load.

More Details

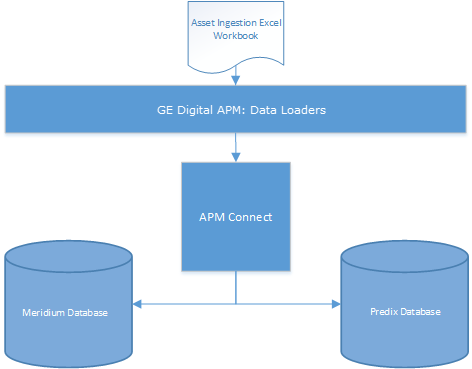

Predix Essentials contains two underlying databases with different structures: the Predix database and the Meridium database. When data is loaded into Predix Essentials using the Unified Asset Ingestion Data Loader, the data is populated in both databases. This creates is a single point of ingestion through APM Connect as shown in the following image.

About Unified Asset Ingestion Data Loader Data Model

This topic describes the data models used by the Unified Asset Ingestion Data Loader.

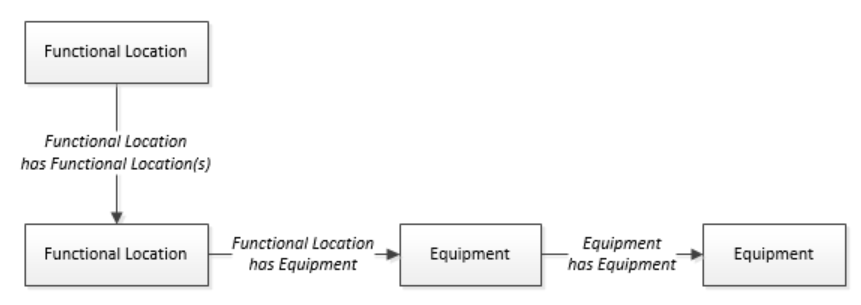

About the Predix Essentials Equipment and Functional Location Data Model

The data for Equipment and Functional Location is loaded from a single Excel workbook containing multiple worksheets. This includes Functional Location and Equipment.

The Functional Location can be linked to a parent Functional Location using the relationship Functional Location Has Functional Location(s).

About the Predix Asset Data Model

Predix uses four ccomClass to create the Asset Hierarchy Enterprise, Site, Segment, and Asset.

Enterprise
Site
Segment
Asset

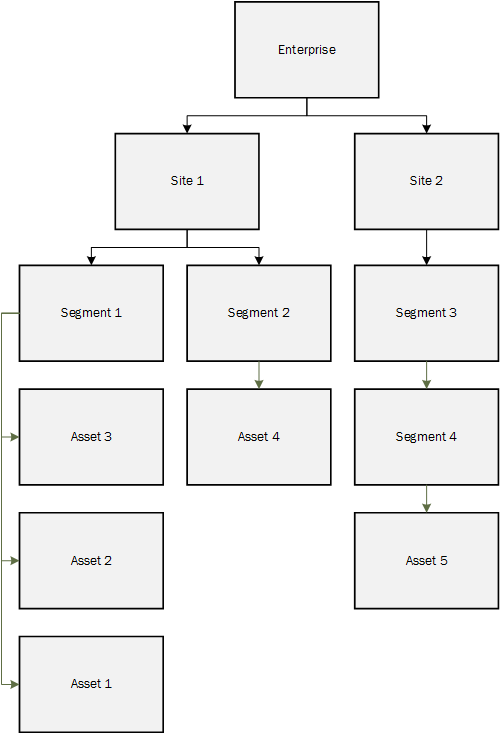

The following image is an example Asset Hierarchy in Predix.

Predix Classifications, Instances, and Connections

Predix uses the following elements to facilitate the creation of the hierarchy:

Classifications: Defines the hierarchical levels of the asset model.
Instance: Relates to node or actual Instances (levels in the hierarchy tree) with classification and ccomClass.
Connections: Defines parent-child relationships among nodes.

Classifications are created from the ccomClass and Instances are derived from the Classifications and also associated to ccomClass as shown in the following image:

How Predix Records Correspond to Predix Essentials Records


Predix record	Corresponding Predix Essentials Record	Comments
Enterprise record	There is no Meridium equivalent.	Enterprise records will not be loaded in to the Meridium database and will not appear in the Meridium Asset Hierarchy. There is no Meridium equivalent.
Site record	Site record	While these values match, how Sites are defined, configured, and used are different. In Meridium, the Sites are used as filtering mechanisms; they are foreign keys in various records within the Meridium database. Meridium Sites are part of the user configuration to allow access by a user and are defined, and managed, by an administrator role. The site must exist in the Meridium database before running the data loader that creates the Predix Site object. In Predix, the Sites are defined in a JSON file. For the Unified Asset Ingestion data loader, these must be consistent.
Segment record	Functional Location record	Predix Segments are the equivalent to Meridium Functional Locations. The data loader job builds the correct heierarchy in both databases using the FuncLocsToSuperiorFuncLocs records. Because there is no relationship object between Site and Functional Location in the Meridium database, this relationship must be manually defined in the Predix database. The Connections tab in the worksheet relates the highest-level Functional Location record to the correct Site record to define a consistent hierarchy in both databases.
Asset record	Equipment record	If the connections are set correctly for the asset hierarchy, the asset records in Predix will be populated with identical information as the equipment family records in the Meridium database. Although the data model differs between the Meridium and Predix databases, the Unique ID value will be identical in both databases and that value is use to insure that the functionality works consistently.

Note: Predix connections are equivalent to Predix Essentials relationships.

About the Unified Asset Ingestion Workbook Layout and Use

This section provides a high-level overview and explanation of how the data loader workbook is constructed.

To import data using the Unified Asset Ingestion data loader, Predix Essentials provides an Excel workbook, Unified Asset Ingestion.xml, which supports baseline data loading of equipment and functional locations in Predix Essentials.

Access the workbook by selecting Dataloader Templates > Unified Loaders > Unified Asset Ingestion.

The following table lists the worksheets that are included in the Unified Asset Ingestion data loader workbook.

Important: To prevent load failures:

Worksheets in the workbook not being used may be left blank, but should not be deleted from the workbook.
Do not delete columns or rename fields in the worksheets.
Limit the workbook size for any data load to 10,000 entries.
Limit the workbook size for any data load to 10 MB.


Worksheet	Description
Configuration	The Configuration worksheet is needed to describe the type of data that you will be loading and how that data should be handled during the data load. It also sets the rules of the data loading with regards to the inserts, updates, deletes, key fields, locating existing records, etc.
Equipment	This worksheet is used to specify data for import to the Equipment family. It also generates the corresponding asset nodes in the Predix database.
FunctionalLocations	This worksheet is used to specify data for import to the Functional Location family. It also generates the corresponding segment nodes in the Predix database.
FuncLocsToSuperiorFuncLocs	This worksheet is used to link Functional Locations to Superior Functional Locations. It will also generate connections in the Predix database.
EquipmentToSuperiorEquipment	This worksheet is used to link Equipment to Superior Equipment records. It will also generate connections in the Predix database.
FuncLocsToEquipment	This worksheet is used to link Functional Location records to Equipment records. It will generate connections in the Predix database.
Predix Database Worksheets
Worksheet	Description
Enterprise	This worksheet is used to define the Enterprise classifications in the Meridium and Predix databases.
Site	This worksheet is used to define the Site classifications in the Meridium and Predix databases.
Taxonomy	This worksheet is used to define the classifications of the Assets and Segments in the Predix database. Important: Use the Taxonomy data loader to load the taxonomy into the database. Do not change the values on this worksheet.
Connections	This worksheet is used to define the hierarchy or connections for the Predix database for Enterprise, Site, and top-level Segment. Create connections for these hierarchies: Enterprise to Enterprise Site to Enterprise Site to Site Top-level Segment (Functional Location in the Meridium database) to Site

Configuration Worksheet

The Configuration worksheet tells the Data Loader what types of data are being loaded and how the data is to be loaded. The following table outlines the options that are valid or the values that are expected in each of the columns on the Configuration worksheet.


Field Caption	Field ID	Data Type (Length)	Comments
Load Data From Worksheet	LOAD_DATA_WORKSHEET	Boolean	Identifies if data from the corresponding worksheet identified in the Data Worksheet ID column will be loaded into the Meridium database or not. True: The corresponding worksheet will be processed. False: The corresponding worksheet will not be processed. Important: Because the Enterprise, Site, and Connection worksheets are specific to the Predix database, This value must be False for these worksheets to prevent loading the Meridium database with the data from these worksheets.
Data Worksheet ID	DATA_WORKSHEET_ID	Character	This column contains the name of the <data> worksheet where the actual data is located. It needs to have the same name as the <data> worksheet in the data loader workbook.
Batch Size	BATCH_SIZE	Character	Important: This field determines the batch size for records added to the Meridium database. Records added to the Predix database are loaded in a single batch regardless of the value you specify in this column. Modifying this field is required to determine the number of records processed in each batch. Enter the batch size you want, and the Data Loader will process that many records per batch. Note: The recommended batch size is 100. If the Batch Size column is removed from the source workbook, the data loader will default to a batch size of 100. In addition to processing the data in batches, the log file reports progress by batch.
Primary Family ID	PRIMARY_FAMILY_ID	Character	Depending on the type of data that you are working with, this will contain the Relationship Family ID or the Entity Family ID. You can also allow the data in source file to determine the Family ID by encapsulating the Field ID that contains the Family ID data in brackets (<>). For example, if, in the <data> worksheet, there is a column with the ID PRIMARY_FAMILY_ID, where each row contains the corresponding Family ID, you should enter the value `<PRIMARY_FAMILY_ID>` in this column. If the Family ID in the Predix Essentials metadata contains spaces, you must specify this value in <>.
Primary Family Key Fields	PRIMARY_FAMILY_KEY_FIELDS	Character	This column contains the Field IDs associated with the Primary Family that are used to uniquely identify a record. If more than one field is to be used, each Field ID needs to be separated by a \| (pipe) character. If you are loading data into a relationship and no keys fields exist or are used, use the <none> constant. If the Primary Action is ACTION_INSERTONLY, no key fields need to be specified, so you can use the <none> constant.
Family Type	FAMILY_TYPE	Character	The value is this column should be Entity or Relationship depending on the type of data that is being loaded.
Predecessor Family ID	PRED_FAMILY_ID	Character	When the Family Type is Relationship, this column will contain the value of the Entity Family ID that is the predecessor in the relationship. Otherwise, it should contain the <none> constant. You can also use the data in each of the rows to determine the Predecessor Family ID.
Predecessor Family Key Fields	PRED_FAMILY_KEY_FIELDS	Character	This column contains the Field ID or IDs associated with the Predecessor Family that are used to uniquely identify the predecessor record. If more than one field is to be used, each Field ID needs to be separated by a \| (pipe) character. If the Predecessor Action is ACTION_INSERTONLY, no key fields need to be specified, so you can use the <none> constant.
Successor Family ID	SUCC_FAMILY_ID	Character	When the Family Type is Relationship, this column will contain the value of the Entity Family ID that is the successor in the relationship. Otherwise, it should contain the <none> constant. You can also use the data in each of the rows to determine the Successor Family ID.
Successor Family Key Fields	SUCC_FAMILY_KEY_FIELDS	Character	This column contains the Field ID or IDs associated with the Successor Family that are used to uniquely identify the successor record. If more than one field is to be used, each Field ID needs to be separated by a \| (pipe) character. If the Successor Action is ACTION_INSERTONLY, no key fields need to be specified, so you can use the <none> constant.
Primary Action	PRIMARY_ACTION	Character	The value in this column will determine the action that will be applied to the Primary Family records. If the Family Type is Entity, the possible values are: ACTION_INSERTONLY ACTION_INSERTUPDATE ACTION_UPDATEONLY ACTION_DELETE ACTION_PURGE Deleting a record and purging a record will both delete the current record, the difference being that the purge action will delete the record and all the links or relationships tied to that record. The delete action will simply attempt to delete the record, and if it is related to another record, the delete will fail. If the family type is Relationship, the possible values are: ACTION_INSERTONLY ACTION_INSERTUPDATE ACTION_UPDATEONLY ACTION_DELETE
Predecessor Action	PRED_ACTION	Character	The value in this column will determine the action that will be applied to the Predecessor Family records. The possible values are: ACTION_INSERTONLY ACTION_INSERTUPDATE ACTION_UPDATEONLY ACTION_DELETE ACTION_PURGE ACTION_LOCATE If the family type is Entity, the value needs to be: ACTION_NONE
Successor Action	SUCC_ACTION	Character	The value in this column will determine the action that will be applied to the Successor Family records. The possible values are: ACTION_INSERTONLY ACTION_INSERTUPDATE ACTION_UPDATEONLY ACTION_DELETE ACTION_PURGE ACTION_LOCATE If the family type is Entity, the value needs to be: ACTION_NONE
Insert with Null Values?	OPTION_INSERT_ON_NULL	Boolean	When setting field values on a new record, if a value coming across is NULL, the field values will be set to NULL if this option is set to True.
Update with Null Values?	OPTION_UPDATE_ON_NULL	Boolean	When setting field values on an existing record, if a value coming across is NULL, the field values will be set to NULL if this option is set to True.
Replace an Existing Link?	OPTION_REPLACE_EXISTING_LINK	Boolean	The Replace Existing Relationship option is used to determine how a relationship is to be maintained by its cardinality definition. For example, the relationship Location Contains Asset is defined in the Configuration Manager. It has a cardinality defined as Zero or One to Zero or One, has a Location LP-2300, and contains the Asset P-2300. If, in the data load, you assign the Asset P-5000 to be contained in the Location LP-2300, and you have set the Replace Existing Link property to True, the data loader will link P-5000 to LP-2300 and unlink P-2300 from LP-2300. This assumes that P-5000 is not currently linked to another location. The same is true for a relationship that is defined as Zero or One to Zero or Many, or Zero or Many to Zero or One.
Allow Change of Family?	OPTION_ALLOW_CHANGE_OF_FAMILY	Boolean	Allows the data loader to move an entity from one family to another. For example, this would allow an entity that is currently assigned to the Centrifugal Pump family to be moved to the Reciprocating Pump family. All relationships will be maintained as long as the family to which the entity is being moved allows the same relationships. Note: Because of the extra processing required, by selecting this option, the interface performance will decrease.

Tip:

Ensure that you define the taxonomy information correctly so your asset matches the taxonomy of your Meridium database. That is, the Object Type field is populated with an Equipment Type defined in the Taxonomy Mapping family. Consider this taxonomy mapping loaded from the Asset Answers/SmartSignal standard taxonomy:


Object Type (Taxonomy Mapping Value)
MI_EQUIP000_OBJ_TYP_C
Centrifugal Pump
Gas Turbine

The MI_EQUIP000_OBJ_TYP_C value Gas Turbine corresponds to the Centrifugal Pump Object Type (Taxonomy Mapping Value) in the standard taxonomy.

You can also add new taxonomies using the Taxonomy data loader.

Equipment Worksheet

On the Equipment worksheet, you will specify Equipment that are assets in the Predix database.

Notes:

Each row in this worksheet represents a unique asset. You should not include the same asset more than once.
In the Predix database, Field Captions are added as custom attributes associated with the asset.


Field Caption	Field Column Name	Data Type (Length)	Comment
Maintenance Plant	MI_EQUIP000_MAINT_PLANT_C	Character (50)	This field is required, and is used to group or batch the Equipment records.
CMMS System	MI_EQUIP000_SAP_SYSTEM_C	Character (255)	This is a key field.
Equipment ID	MI_EQUIP000_EQUIP_ID_C	Character (225)	This is a key field. This is the Equipment ID in the Meridium database.
Unique ID	MI_EQUIP000_UNIQUE_ID_C	Character (550)	This field uniquely identifies the equipment using the recommended format `<CMMS System> - <Equipment ID>`. This value is used to correlate the data in both the Meridium and Predix databases. If you use your own format, the ID must be unique for each item defined.
Site Reference Name	MI_SITE_NAME	Character (255)	Important: Site Reference records must preexist in Predix Essentials. The data loader does not create Site Reference records, but simply provides foreign key data in the asset records as determined in the source workbook. If the site reference record does not already exist, you will receive an error. Enter the SITE_NAME value from the Site Worksheet to designate which site by which the Equipment record, once loaded into Predix Essentials, will be filtered. Note: Only super users are permitted to update Site Reference records.
Equipment Short Description	MI_EQUIP000_EQUIP_SHRT_DESC_C	Character (255)	None
Equipment Long Description	MI_EQUIP000_EQUIP_LNG_DESC_T	Text	None
Functional Location	MI_EQUIP000_FNC_LOC_C	Character (50)	None
Functional Location Description	MI_EQUIP000_FNC_LOC_DESC_C	Character (255)	None
Manufacturer	MI_EQUIP000_MFR_C	Character (255)	None
Model Number	MI_EQUIP000_MOD_NO_C	Character (255)	None
Part Number	MI_EQUIP000_PRT_NO_C	Character (50)	None
Equipment Serial Number	MI_EQUIP000_SN_C	Character (255)	None
Equipment Vendor	MI_EQUIP000_EQUIP_VNDR_C	Character (50)	None
Class	MI_EQUIP000_SAP_CLASS_C	Character (50)	None
Class Description	MI_EQUIP000_SAP_CLASS_DESC_C	Character (255)	None
Size/Dimension	MI_EQUIP000_SZ_C	Character (50)	None
System Status	MI_EQUIP000_SYS_ST_C	Character (255)	None
Technical Drawing Number	MI_EQUIP000_TECH_DRW_NO_C	Character (50)	None
Planner Group	MI_EQUIP000_PLANG_GRP_C	Character (50)	None
Planner Group Description	MI_EQUIP000_PLANG_GRP_DESC_C	Character (255)	None
Planning Plant	MI_EQUIP000_PLNNG_PLNT_C	Character (50)	None
Planning Plant Description	MI_EQUIP000_PLNNG_PLNT_DESC_C	Character (255)	None
Purchase Date	MI_EQUIP000_PRCH_D	Date	None
Purchase Order Number	MI_EQUIP000_PO_NO_C	Character (50)	None
Object Type	MI_EQUIP000_OBJ_TYP_C	Character (50)	This field can associate the Equipment with the corresponding Taxonomy classification. This field is not currently used; in the current release, only the default classification of Assets is provided.
Object Type Description	MI_EQUIP000_OBJ_TYP_DESC_C	Character (255)	None
Catalog Profile	MI_EQUIP000_CAT_PROF_C	Character (50)	None
Inventory Number	MI_EQUIP000_INV_NO_C	Character (50)	None
Main Work Center	MI_EQUIP000_MAIN_WRK_CNR_C	Character (50)	None
Main Work Center Description	MI_EQUIP000_MAIN_WRK_CN_DESC_C	Character (255)	None
Valid From Date	MI_EQUIP000_VLD_FRM_DAT_D	Date	None
Warranty Expiration Date	MI_EQUIP000_WRNTY_EXPR_D	Date	None
WBS Element	MI_EQUIP000_WBS_ELMNT_C	Character (50)	None
Year Constructed	MI_EQUIP000_YR_CONSTRD_N	Numeric	None
Catalog Profile Description	MI_EQUIP000_CAT_PROF_DESC_C	Character (255)	None
Construction Type	MI_EQUIP000_CONSTN_TYP_C	Character (50)	None
Construction Type Description	MI_EQUIP000_CONSTN_TYP_DESC_C	Character (255)	None
Criticality Indicator	MI_EQUIP000_CRITI_IND_C	Character (50)	None
Criticality Indicator Description	MI_EQUIP000_CRITI_IND_DESC_C	Character (255)	None
CMMS Last Changed Date	MI_EQUIP000_CHANGE_DATE_D	Date	None
CMMS Creation Date	MI_EQUIP000_CREATE_DATE_D	Date	None
Equipment Technical Number	MI_EQUIP000_EQUIP_TECH_NBR_C	Character (255)	None
Category	MI_EQUIP000_SAP_CATEG_C	Character (50)	None
Category Description	MI_EQUIP000_SAP_CATEG_DESC_C	Character (255)	None
Maintenance Plant Description	MI_EQUIP000_MAINT_PLANT_DESC_C	Character (255)	None
Sort Field	MI_EQUIP000_SORT_FIELD_C	Character (50)	None
Plant Section	MI_EQUIP000_PLANT_SECTION_C	Character (50)	None
Person Responsible for Plant Section	MI_EQUIP000_PLANT_SECT_DESC_C	Character (255)	None
Cost Center	MI_EQUIP000_CST_CNR_C	Character (50)	None
Cost Center Description	MI_EQUIP000_CST_CNR_D_C	Character (255)	None

FunctionalLocations Worksheet

On the Functional Location worksheet, you will specify information for functional locations that are Segments in the Predix database.

Notes:

Each row in this worksheet represents a unique functional location. You should not include the same functional location more than once.
The highest level (root) functional location must correspond to the Segment in Predix that is assigned to the appropriate site in the Connections worksheet.


Field Caption	Field ID	Data Type (Length)	Comments
Functional Location Internal ID	MI_FNCLOC00_INTERNAL_ID_C	Character (30)	This value is the ID assigned by Predix Essentials to the functional location. This is a key field.
Maintenance Plant	MI_FNCLOC00_MAINT_PLNT_C	Character (50)	This value identifies the plant responsible for maintenance. This field is not required to contain a value, but entering a value is recommended as it could be useful for searches or data analysis.
CMMS System	MI_FNCLOC00_SAP_SYSTEM_C	Character (255)	This value identifies the EAM system from which the data originated and is used by the data loader as part of a unique ID. This field is not required to contain a value, but entering a value is recommended as it could be useful for searches or data analysis. This is a key field.
Functional Location	MI_FNCLOC00_FNC_LOC_C	Character (50)	This value is the functional location as defined by the EAM.
Unique ID	MI_FNCLOC00_UNIQUE_ID_C	Character (550)	This field uniquely identifies the functional location using the format <CMMS System> - <Functional Location ID>.
Site Reference Name	MI_SITE_NAME	Character (255)	Important: Site Reference records must preexist in Predix Essentials. The data loader does not create Site Reference records, but simply provides foreign key data in the asset records as determined in the source workbook. If the site reference record does not already exist, you will receive an error. Enter the value of the name field in the Sites record to designate the site by which the Functional Location record, once loaded into Predix Essentials, will be filtered. Note: Only Super Users are permitted to update Site Reference records.
Functional Location Description	MI_FNCLOC00_FNC_LOC_DESC_C	Character (255)	None
Functional Location Long Description	MI_FNCLOC00_FNC_LOC_LNG_DESC_C	Text	None
Business Area	MI_FNCLOC00_BUS_AREA_C	Character (50)	None
Business Area Description	MI_FNCLOC00_BUS_AREA_D_C	Character (255)	None
Catalog Profile	MI_FNCLOC00_CAT_PROF_C	Character (50)	None
Catalog Profile Description	MI_FNCLOC00_CAT_PROF_D_C	Character (255)	None
Category	MI_FNCLOC00_CATEG_C	Character (50)	None
Category Description	MI_FNCLOC00_CATEG_D_C	Character (255)	None
CO Area	MI_FNCLOC00_CO_AREA_C	Character (50)	None
CO Area Description	MI_FNCLOC00_CO_AREA_D_C	Character (255)	None
Company Code	MI_FNCLOC00_CO_CD_C	Character (50)	None
Company Code Description	MI_FNCLOC00_CO_CD_D_C	Character (255)	None
Construction Type	MI_FNCLOC00_CONST_TYP_C	Character (50)	None
Construction Type Description	MI_FNCLOC00_CONST_TYP_DESC_C	Character (255)	None
Cost Center	MI_FNCLOC00_CST_CNR_C	Character (50)	None
Cost Center Description	MI_FNCLOC00_CST_CNR_D_C	Character (255)	None
Criticality Indicator	MI_FNCLOC00_CRTCAL_IND_C	Character (50)	None
Criticality Indicator Description	MI_FNCLOC00_CRTCAL_IND_D_C	Character (255)	None
Installation Allowed	MI_FNCLOC00_INSTLD_ALWBL_C	Character (50)	None
Location	MI_FNCLOC00_LOCAT_C	Character (50)	None
Location Description	MI_FNCLOC00_LOCAT_DESC_C	Character (255)	None
Maintenance Plant Description	MI_FNCLOC00_MAINT_PLNT_D_C	Character (255)	None
Object Type	MI_FNCLOC00_OBJ_TYP_C	Character (50)	This field can associate the functional location to the corresponding Taxonomy classification. This field is not currently used; in the current release, only the default classification of Assets is provided.
Object Type Description	MI_FNCLOC00_OBJ_TYP_DESC_C	Character (255)	None
Planning Plant	MI_FNCLOC00_PLNNG_PLNT_C	Character (50)	None
Planning Plant Description	MI_FNCLOC00_PLNNG_PLNT_D_C	Character (255)	None
Plant Section	MI_FNCLOC00_PLNT_SECT_C	Character (50)	None
Plant Section Description	MI_FNCLOC00_PLNT_SECT_D_C	Character (255)	None
Room	MI_FNCLOC00_ROOM_C	Character (50)	None
Sort Field	MI_FNCLOC00_SORT_FLD_C	Character (50)	None
Structure Indicator	MI_FNCLOC00_STRUC_INDIC_C	Character (50)	None
Work Center	MI_FNCLOC00_WRK_CNTR_C	Character (50)	None
System Status	MI_FNCLOC00_SYS_STATUS_C	Character (255)	None
Work Center Description	MI_FNCLOC00_WRK_CNTR_DESC_C	Character (255)	None
CMMS Last Changed Date	MI_FNCLOC00_CHANGE_DATE_D	Date	None
CMMS Creation Date	MI_FNCLOC00_CREATE_DATE_D	Date	None
Planner Group	MI_FNCLOC00_PLANNER_GROUP_C	Character (50)	None
Planner Group Description	MI_FNCLOC00_PLANNER_GRP_DESC_C	Character (255)	None
Class	MI_FNCLOC00_SAP_CLASS_C	Character (50)	None
Class Description	MI_FNCLOC00_SAP_CLASS_DESC_C	Character (255)	None
Superior Functional Location	MI_FNCLOC00_SUPR_FNC_LOC_C	Character (50)	None

FuncLocsToSuperiorFuncLocs Worksheet

On the Functional Location to Superior Locations worksheet, you specify the hierarchy between a Functional Location and its Superior Functional Location. This generates the relationships between the entities in the Meridium database and Connections in the Predix database.

The key values to assure the uniqueness of the functional locations include the CMMS System, Functional Location, Maintenance Plant, Predecessor and Successor Family, and Predecessor and Successor Functional Location Unique ID.


Field Caption	Field ID	Data Type (Length)	Comments
Functional Location Internal ID	<PRED_FAMILY_ID>\|MI_FNCLOC00_INTERNAL_ID_C	Character (30)	In some workflows, this is used as the primary key for the functional location. If there is only one functional location, the value of this field can match the value of Functional Location.
CMMS System	<PRED_FAMILY_ID>\|MI_FNCLOC00_SAP_SYSTEM_C	Character (255)	This value identifies the parent family and EAM system as defined in Predix Essentials. This is a key field.
Functional Location	<PRED_FAMILY_ID>\|MI_FNCLOC00_FNC_LOC_C	Character (50)	This value identifies the Predix Essentials parent family and functional location as defined in Predix Essentials.
Predecessor Functional Location Unique ID	<PRED_FAMILY_ID>\|MI_FNCLOC00_UNIQUE_ID_C	Character (550)	This field uniquely identifies the functional location using the format <CMMS System> - <Functional Location ID>.
Maintenance Plant	<PRED_FAMILY_ID>\|MI_FNCLOC00_MAINT_PLNT_C	Character (50)	This value identifies the parent family and responsible maintenance plant as defined in Predix Essentials.
Predecessor Family ID	PRED_FAMILY_ID	Character (255)	This value identifies the parent family ID as assigned by Predix Essentials.
Functional Location Internal ID	<SUCC_FAMILY_ID>\|MI_FNCLOC00_INTERNAL_ID_C	Character (30)	This value identifies the child family and functional location as defined in Predix Essentials.
CMMS System	<SUCC_FAMILY_ID>\|MI_FNCLOC00_SAP_SYSTEM_C	Character (255)	This value identifies the child family and EAM system as defined in Predix Essentials.
Functional Location	<SUCC_FAMILY_ID>\|MI_FNCLOC00_FNC_LOC_C	Character (50)	This value identifies the child family and functional location as defined in Predix Essentials.
Successor Functional Location Unique ID	<SUCC_FAMILY_ID>\|MI_FNCLOC00_UNIQUE_ID_C	Character (550)	This field uniquely identifies the functional location using the format <CMMS System> - <Functional Location ID>.
Maintenance Plant	<SUCC_FAMILY_ID>\|MI_FNCLOC00_MAINT_PLNT_C	Character (50)	This value identifies the plant responsible for maintenance. This field is not required to contain a value, but entering a value is recommended as it could be useful for searches or data analysis.
Successor Family ID	SUCC_FAMILY_ID	Character (255)	This value identifies the child family ID as defined in the EAM system. This is a key field.

EquipmentToSuperiorEquipment Worksheet

On the EquipmentToSuperiorEquipment worksheet, you specify the hierarchy between an Equipment and its Superior Equipment. This generates the relationships between the entities in the database.


Field Caption	Field ID	Data Type (Length)	Comments
Maintenance Plant	<PRED_FAMILY_ID>\|MI_EQUIP000_MAINT_PLANT_C	Character (50)	This value identifies the plant responsible for maintenance. This field is not required to contain a value, but entering a value is recommended as it could be useful for searches or data analysis.
CMMS System	<PRED_FAMILY_ID>\|MI_EQUIP000_SAP_SYSTEM_C	Character (255)	This value identifies the parent family and EAM system as defined in Predix Essentials.
Equipment ID	<PRED_FAMILY_ID>\|MI_EQUIP000_EQUIP_ID_C	Character (255)	This value identifies the parent family and equipment ID as defined in Predix Essentials.
Predecessor Equipment Unique ID	<PRED_FAMILY_ID>\|MI_EQUIP000_UNIQUE_ID_C	Character (550)	This field uniquely identifies the equipment using the format <CMMS System> - <Equipment ID>.
Predecessor Family ID	PRED_FAMILY_ID	Character (255)	This value identifies the parent family as defined in Predix Essentials.
CMMS System	<SUCC_FAMILY_ID>\|MI_EQUIP000_SAP_SYSTEM_C	Character (255)	This value identifies the child family and EAM system as defined in Predix Essentials.
Equipment ID	<SUCC_FAMILY_ID>\|MI_EQUIP000_EQUIP_ID_C	Character (255)	This value identifies the child family and equipment ID as defined in Predix Essentials.
Successor Equipment Unique ID	<SUCC_FAMILY_ID>\|MI_EQUIP000_UNIQUE_ID_C	Character (550)	This field uniquely identifies the equipment using the format <CMMS System> - <Equipment ID>.
Successor Family ID	SUCC_FAMILY_ID	Character (255)	This value identifies the child family as defined in Predix Essentials. This is a key field.

The value of this field has the format YYYY-MO-DDTHH:MN:SS.ttt+OOOO, where:

YYYY is the 4-digit year.
MO is the 2-digit month.
DD is the 2-digit day.
HH is the 2-digit hour in 24-hour time.
MN is the 2-digit minute.
SS is the 2-digit second.
ttt is the 3 digit thousandths of a second.
OOOO is the 4-digit offset from UTC.

The Configuration worksheet is needed to describe the type of data that you will be loading and how that data should be handled during the data load.


Field Caption	Field ID	Data Type (Length)	Comments
Load Data From Worksheet	LOAD_DATA_WORKSHEET	Boolean	Identifies if data from the corresponding worksheet identified in the Data Worksheet ID column will be loaded or not. True: the corresponding worksheet will be processed. False: The corresponding worksheet will not be loaded into the Meridium database. Important: Always set the Enterprise, Site, Taxonomy, and Connections worksheets to false.
Data Worksheet ID	DATA_WORKSHEET_ID	Character	This column contains the name of the <data> worksheet where the actual data is located. It needs to have the same name as the <data> worksheet in the data loader workbook.
Batch Size	BATCH_SIZE	Character	Modifying this field is required to determine the number of records processed in each batch. Enter the batch size you want, and the Data Loader will process that many records per batch. For example, if you want to use a batch size of 100, enter 100, and the data loader will process 100 records per batch. Note: The recommended batch size is 100. If the Batch Size column is removed from the source workbook, the data loader will default to a batch size of 100. In addition to processing the data in batches, the log file reports progress by batch.

FuncLocsToEquipment Worksheet

On the FuncLocsToEquipment worksheet, you specify the hierarchy between a Functional Location and its associated Equipment. This generates the relationships between the entities in the Meridium database and Connections in the Predix database.


Field Caption	Field ID	Data Type (Length)	Comments
Functional Location Maintenance Plant	MI_FNCLOC00\|MI_FNCLOC00_MAINT_PLNT_C	Character (50)	This value identifies the plant responsible for maintenance. This field is not required to contain a value, but entering a value is recommended as it could be useful for searches or data analysis.
Functional Location Internal ID	MI_FNCLOC00\|MI_FNCLOC00_INTERNAL_ID_C	Character (30)	This value identifies the functional location ID as defined in the EAM system. This is a key field.
Functional Location CMMS System	MI_FNCLOC00\|MI_FNCLOC00_SAP_SYSTEM_C	Character (255)	This value identifies the functional location and EAM system as defined in Predix Essentials.
Functional Location	MI_FNCLOC00\|MI_FNCLOC00_FNC_LOC_C	Character (50)	This value identifies functional location as defined in EAM system.
Functional Location Unique ID	MI_FNCLOC00\|MI_FNCLOC00_UNIQUE_ID_C	Character (550)	This field uniquely identifies the functional location using the format <CMMS System> - <Functional Location ID>.
Equipment Maintenance Plant	MI_EQUIP000\|MI_EQUIP000_MAINT_PLANT_C	Character (50)	This value identifies the responsible maintenance plant and equipment as defined in Predix Essentials.
Equipment CMMS System	MI_EQUIP000\|MI_EQUIP000_SAP_SYSTEM_C	Character (255)	This value identifies the equipment and EAM system as defined in Predix Essentials.
Equipment ID	MI_EQUIP000\|MI_EQUIP000_EQUIP_ID_C	Character (225)	This value identifies the equipment as defined in the EAM system. This is a key field.
Equipment Unique ID	MI_EQUIP000\|MI_EQUIP000_UNIQUE_ID_C	Character (550)	This field uniquely identifies the equipment using the format <CMMS System> - <Equipment ID>.

Enterprise Worksheet

This worksheet is used specifically to create the Enterprise type Classification and associated Instances in the Predix database. This is a prerequisite to generating the asset hierarchy.


Field Caption	Field ID	Data Type (Length)	Comments
Type	ENTERPRISE_TYPE	Character (50)	Value can be either: `Classification:` generates a Classification node. `Instance:` generates an Instance node.
ID	ENTERPRISE_ID	Character (30)	ID of the classification or instance node.
Name	ENTERPRISE_NAME	Character (255)	Name of the classification or instance node.
Description	ENTERPRISE_DESC	Character (255)	Description of either the classification or instance node.
Classification	ENTERPRISE_CLASSIFICATION	Character (30)	If the Type value is Classification, this field should be left blank.
ccomClass	ENTERPRISE_CCOMCLASS	Character (255)	The value should be set to: `ENTERPRISE_TYPE` if the Type value is Classification. `ENTERPRISE` if the Type value is Instance.
customer_address	ENTERPRISE_ADDRESS	Character (255)	None
contact_inforamation	ENTERPRISE_CONTACT	N/A	None
city	ENTERPRISE_CITY	N/A	None
county	ENTERPRISE_COUNTY	N/A	None
state	ENTERPRISE_STATE	N/A	None
country	ENTERPRISE_COUNTRY	N/A	None

Site Worksheet

The Site worksheet is used specifically to create the Site type Classification and associated Instances in the Predix database. This is a prerequisite to generating the asset hierarchy.

Note: Sites created in the Meridium database must match the sites created in the Predix database.


Field Caption	Field ID	Data Type (Length)	Comments
Type	SITE_TYPE	Character (50)	Value can be either: `Classification:` generates a Classification node. `Instance:` generates an Instance node.
ID	SITE_ID	Character (30)	ID of site.
Name	SITE_NAME	Character (255)	Site name. Important: If the Type value is Instance, the site name must match the value of the MI_SITE_NAME in the equipment and functional location records.
Description	SITE_DESCRIPTION	Character (255)	Description of the site.
Classification	SITE_CLASSIFICATION	Character (30)	If the Type value is Classification, this field should be left blank.
ccomClass	SITE_CCOMCLASS	Character (255)	The value should be set to: `ENTERPRISE_TYPE` if the Type value is Classification. `ENTERPRISE` if the Type value is Instance.
customer_address	SITE_ADDRESS	Character (255)	None
contact_inforamation	SITE_CONTACT	N/A	None
city	SITE_CITY	N/A	None
county	SITE_COUNTY	N/A	None
state	SITE_STATE	N/A	None
country	SITE_COUNTRY	N/A	None

Taxonomy Worksheet

The Taxonomy worksheet is used specifically to create the Segment and Asset type Classifications in the Predix database. Actual instances for those classifications will be created by the previous sheets. One possible option to generate the classifications is based on the Taxonomy. The Taxonomy of the Assets and Segments will determine the Hierarchy. The association of this classification to the actual instances can be done through the OBJECT_TYPE field in the Equipment and FunctionalLocations sheets. In the current baseline feature, all the Equipment and Functional Location records are categorized as UNIFIED_ASSET and UNIFIED_SEGMENT, respectively, basing the hierarchy on the OBJECT_TYPE field requires configuration changes.

Important: Do not change the values in this worksheet. The worksheet is provided for reference only.


Field Caption	Field ID	Data Type (Length)	Comments
Type	TAXONOMY_TYPE	N/A	This value is always set to Classification. Do not change this value.
OBJECT_TYPE	TAXONOMY_ID	Character (50)	This value can be either: UNIFIED_ASSET UNIFIED_SEGMENT Do not change this value.
Name	TAXONOMY_NAME	Character (30)	This value can be either: PAPM ASSET PAPM SEGMENT Do not change this value.
Description	TAXONOMY_DESCRIPTION	Character (255)	Do not change this value.
Classification	TAXONOMY_CLASSIFICATION	N/A	This field is blank. Do not change this value.
ccomClass	TAXONOMY_CCOMCLASS	N/A	This value can be either: SEGMENT_TYPE ASSET_TYPE Do not change this value.
Parent	PARENT	Character (255)	None
Family Type	FAMILY_TYPE	Character (30)	None
Equipment Type	EQUIPMENT_TYPE	Character (255)	None
faultMode	FAULTMODE	Character (255)	None
maintenanceCriticality	MAINTENANCECRITICALITY	N/A	None

Connections Worksheet

The Connections worksheet can be used to generate connections between two instances in the Predix database. Specifically, it is used to define connection between Enterprises and Sites in Predix Essentials. Apart from that, this worksheet also defines the connections between the Assets and Segments that are connected directly to the Site record. This configuration is how the Enterprise > Site > Segment > Asset hierarchy is generated by Predix.


Field Caption	Field ID	Data Type (Length)	Comments
Type	CONNECTION_TYPE	Character (50)	Set this value to `Connection`.
From ID	FROM_ID	Character (30)	Set this to the ID value of one of the following: Site Enterprise Functional Location Segment
From ccomClass	FROM_CLASS	Character (255)	The ccomClass of the object identified in From ID.
To ID	TO_ID	Character (255)	Set this to the ID value of one of the following: Site Enterprise Functional Location Segment
To ccomClass	TO_CLASS	Character (30)	The ccomClass of the object identified in To ID.

Create an Asset Hierarchy Using Data Loaders

About This Task

This topic provides the basic, high-level steps for creating an Asset Hierarchy using data loaders. You can create sites and equipment for a parent enterprise or create a parent enterprise for a set of existing sites and equipment to build a complete Asset Hierarchy.

Procedure

Create an enterprise or a site using the Unified Asset Ingestion data loader.
Sign out of Predix Essentials, and then sign in to synchronize the imported enterprise or site across the databases.
Create top-level functional locations of the Asset Hierarchy using the Equipment and Functional Location data loader.
Create the associated site data such as equipment, functional locations, and connections using the Unified Asset Ingestion data loader.

Create an Enterprise and a Site Using Unified Asset Ingestion Data Loader

Procedure

In the module navigation menu, select Tools > Data Loaders.
The Data Loaders page appears.
Select Download Templates.
The Download Templates window appears.
In the Data Loader Templates section, select Unified Loaders.
The Unified Loaders section appears.
Select .
The Unified Asset Ingestion data loader template is downloaded.
Open the Unified Asset Ingestion data loader workbook, and then perform the following operations:
1. In the Enterprise and Site worksheets, specify the enterprises and sites, respectively.

  Note: If the enterprise that you want to associate with the site is available in Predix Essentials, specify the enterprise data in the Enterprise worksheet.

  Important: You must only specify data in the Enterprise, Site, and Connections worksheets. Additionally, ensure that only the appropriate enterprise, site, and connections data are available in the Enterprise, Site, and Connections worksheets, respectively.
2. In the Connections worksheet, provide the following details:
  - In the From ID column, specify the sites.
  - In the To ID column, specify the enterprises.
3. In the Configuration worksheet, in the Load Data from Worksheet column, enter FALSE next to each Data worksheet ID, and then save the workbook.
Select Import New.
The Import Data window appears.
In the Select Data Loader section, select Unified Loaders, and then select Asset Ingestion Loader.
In the File for Import section:
1. Select Choose File, and then access the folder where you saved the Unified Asset Ingestion data loader workbook.
2. Select the workbook, and then select Open.
Select Import.
A job is scheduled, and the status of the job appears in the Status and Log column. When the status is displayed as Complete, the enterprises and the sites that you specified in the workbook are created, and the relationships between the enterprises and the sites are established in Predix Essentials.
Note: If an error occurs while importing the Unified Asset Ingestion data loader workbook, resolve the issues in the workbook, and then import the workbook.

Create Top-Level Functional Locations of an Asset Hierarchy

About This Task

You must use the Equipment and Functional Location data loader to create the top-level functional locations of the Asset Hierarchy in the Meridium database. The top-level functional locations are created in the Meridium and Predix databases using different data loaders, and are based on the levels of the functional locations that you want to create.

If you want to create an Enterprise, you must import the first three levels of functional locations to the Meridium database using the Equipment and Functional Location data loader.
If you want to create a child Site for an Enterprise that is available in Predix Essentials, you must import the second and third levels of functional locations to the Meridium database using the Equipment and Functional Location data loader.

Important: You must use the Equipment and Functional Location data loaders to import the top-level functional locations. If you use the Unified Asset Ingestion data loader to import the functional locations, inconsistent Asset Hierarchies will be created in both the Meridium and Predix databases.

Procedure

In the module navigation menu, select Tools > Data Loaders.
The Data Loaders page appears.
Select Download Templates.
The Download Templates window appears.
In the Data Loader Templates section, select APM Connect.
The APM Connect section appears.
In the Templates column, select next to the Equipment and Functional Location data loader.
The Equipment and Functional Location data loader template is downloaded.
Open the Equipment and Functional Location data loader workbook, and then perform the following operations:
1. In the FunctionalLocations and FuncLocsToSuperiorFuncLocs worksheets, specify the functional locations that will create the first three levels of assets in the hierarchy.

  Note: You must populate data only in the FunctionalLocations and FuncLocsToSuperiorFuncLocs worksheets.
2. Save the Equipment and Functional Location data loader workbook.
Select Import New.
The Import Data window appears.
In the Select Data Loader section, select APM Connect, and then select Equipment and Functional Location.
In the File for Import section:
1. Select Choose File, and then access the folder where you saved the Equipment and Functional Location data loader workbook.
2. Select the workbook, and then select Open.
Select Import.
A job is scheduled, and the status of the job appears in the Status and Log column. When the status is displayed as Complete, the functional locations that you specified in the workbook are created in Predix Essentials.
Note: If an error occurs while importing the Equipment and Functional Location data loader workbook, resolve the issues in the workbook, and then import the workbook.

Create Equipment and Functional Locations for an Asset Hierarchy

About This Task

This topic describes how to import the associated site data such as equipment, functional locations, and connections to Predix Essentials using the Unified Asset Ingestion data loader.

Procedure

In the module navigation menu, select Tools > Data Loaders.
The Data Loaders page appears.
Select Download Templates.
The Download Templates window appears.
In the Data Loader Templates section, select Unified Loaders.
The Unified Loaders section appears.
Select .
The Unified Asset Ingestion data loader template is downloaded.
Open the Unified Asset Ingestion data loader workbook, and then perform the following operations:
1. Provide data in the following worksheets:
  - Equipment
  - FunctionalLocations
  - FuncLocsToSuperiorFuncLocs
  - EquipmentToSupEquipment
  - FuncLocsToEquipment
2. In the Connections worksheet, provide the following details:
  - In the From ID column, specify the segments.
  - In the To ID column, specify the sites.
3. In the Enterprise and Site worksheets, specify the enterprises and sites, respectively, and then save the workbook.
Select Import New.
The Import Data window appears.
In the Select Data Loader section, select Unified Loaders, and then select Asset Ingestion Loader.
In the File for Import section:
1. Select Choose File, and then access the folder where you saved the Unified Asset Ingestion data loader workbook.
2. Select the workbook, and then select Open.
Select Import.
A job is scheduled, and the status of the job appears in the Status and Log column. When the status is displayed as Complete, the equipment and functional locations that you specified in the workbook are created, and the relationships between the equipment and the functional locations are established in Predix Essentials.
Note: If an error occurs while importing the Unified Asset Ingestion data loader workbook, resolve the issues in the workbook, and then import the workbook.

Create a Child-Level Equipment for a Functional Location

Procedure

In the module navigation menu, select Tools > Data Loaders.
The Data Loaders page appears.
Select Download Templates.
The Download Templates window appears.
In the Data Loader Templates section, select Unified Loaders.
The Unified Loaders section appears.
Select .
The Unified Asset Ingestion data loader template is downloaded.
Open the Unified Asset Ingestion data loader workbook, and then perform the following operations:
1. Provide data in the following worksheets:
  - Equipment
  - FuncLocsToEquipment
2. In the Enterprise and Site worksheets, specify the enterprises and sites, respectively, and then save the workbook.
Select Import New.
The Import Data window appears.
In the Select Data Loader section, select Unified Loaders, and then select Asset Ingestion Loader.
In the File for Import section:
1. Select Choose File, and then access the folder where you saved the Unified Asset Ingestion data loader workbook.
2. Select the workbook, and then select Open.
Select Import.
A job is scheduled, and the status of the job appears in the Status and Log column. When the status is displayed as Complete, the equipment that you specified in the workbook are created, and the relationships between the equipment and the functional locations are established in Predix Essentials.
Note: If an error occurs while importing the Unified Asset Ingestion data loader workbook, resolve the issues in the workbook, and then import the workbook.

Create a Child-Level Functional Location for a Functional Location

Procedure

In the module navigation menu, select Tools > Data Loaders.
The Data Loaders page appears.
Select Download Templates.
The Download Templates window appears.
In the Data Loader Templates section, select Unified Loaders.
The Unified Loaders section appears.
Select .
The Unified Asset Ingestion data loader template is downloaded.
Open the Unified Asset Ingestion data loader workbook, and then perform the following operations:
1. Provide data in the following worksheets:
  - FunctionalLocations
  - FuncLocsToSuperiorFuncLocs
  Important: You must specify data only in the FunctionalLocations and FuncLocsToSuperiorFuncLocs worksheets.
2. In the Enterprise and Site worksheets, specify the enterprises and sites, respectively, and then save the workbook.
Select Import New.
The Import Data window appears.
In the Select Data Loader section, select Unified Loaders, and then select Asset Ingestion Loader.
In the File for Import section:
1. Select Choose File, and then access the folder where you saved the Unified Asset Ingestion data loader workbook.
2. Select the workbook, and then select Open.
Select Import.
A job is scheduled, and the status of the job appears in the Status and Log column. When the status is displayed as Complete, the functional locations that you specified in the workbook are created, and the relationships between the functional locations and the parent-level functional locations are established in Predix Essentials.
Note: If an error occurs while importing the Unified Asset Ingestion data loader workbook, resolve the issues in the workbook, and then import the workbook.

Create a Child-Level Equipment for an Equipment

Procedure

In the module navigation menu, select Tools > Data Loaders.
The Data Loaders page appears.
Select Download Templates.
The Download Templates window appears.
In the Data Loader Templates section, select Unified Loaders.
The Unified Loaders section appears.
Select .
The Unified Asset Ingestion data loader template is downloaded.
Open the Unified Asset Ingestion data loader workbook, and then perform the following operations:
1. Provide data in the following worksheets:
  - Equipment
  - EquipmentToSupEquipment
  Important: You must specify data only in the Equipment and EquipmentToSupEquipment worksheets.
2. In the Enterprise and Site worksheets, specify the enterprises and sites, respectively, and then save the workbook.
Select Import New.
The Import Data window appears.
In the Select Data Loader section, select Unified Loaders, and then select Asset Ingestion Loader.
In the File for Import section:
1. Select Choose File, and then access the folder where you saved the Unified Asset Ingestion data loader workbook.
2. Select the workbook, and then select Open.
Select Import.
A job is scheduled, and the status of the job appears in the Status and Log column. When the status is displayed as Complete, the equipment that you specified in the workbook are created, and the relationships between the equipment and the parent-level equipment are established in Predix Essentials.
Note: If an error occurs while importing the Unified Asset Ingestion data loader workbook, resolve the issues in the workbook, and then import the workbook.

The Unified Asset Ingestion Data Loader General Loading Strategy

This section describes any prerequisites to loading the data and the order in which the data will be loaded.

Before You Begin

Notes:

Before reading this section, refer to the Data Model section.
Use this data loader only for Predix APM applications.

Equipment Taxonomy data and Site Reference data must be present prior to loading Equipment and Functional Location data into the database.

About This Task

You must use the Unified Asset Ingestion data loader is used to load enterprise, site, and asset data into the databases.

Considerations

The top-level parent node is not automatically designated by the data loader; you must explicitly define this node in the Excel source workbook.
The Functional Location hierarchy is constructed in the loader by assigning the ID of the parent Functional Location (superseding Functional Location) to the child Functional Location record as the value of the Predecessor Functional Location Unique ID field in the record.
An asset record can have only one parent. For example, an Equipment record cannot have a parent Equipment record and a parent Functional Location record; it must have one or the other. Therefore, to avoid unexpected results, you should ensure that each record is related to only one parent when you configure the Unified Asset Ingestion data loader workbook.
CMMS-ID is a required field that is intended to identify the original source of the data and part of the key value.
After loading Equipment records into Predix Essentials with a specific site reference, you cannot update the Equipment records to have global site references by reimporting the workbook with the site reference column updated to global on the Equipment worksheet.
In Predix Essentials, records inherit their site references from their predecessor records. Additionally, when the Unified Asset Ingestion data loader is run, it loads Equipment records first, and then loads Functional Location records.

How Instances Are Assigned to Classifications

For the Enterprise and Site, both the Classifications and Instances are created through the corresponding sheets in the template. All segment and asset records (UNIFIED_ASSET and UNIFIED_SEGMENT) will be assigned a single, generic classification that is defined in the auto_join queries.

You must use multiple steps to define an asset hierarchy in the database, for example, Site > Area > Unit > Asset.

Procedure

Assign sites to Predix Essentials.
Use the Taxonomy data loader to load the taxonomy into the databases.
In the workbook, define the Unit as the only Functional Location.
In the workbook, define the link between the Unit and the asset.
The Unit then corresponds to a Segment in the Predix database.
Use the data loader to load more Functional Locations.
You can define the hierarchy in the Meridium database at this time or later. Use the Record Manager to define the hierarchy.
Use the data loader to add the Equipment and Functional Locations to the defined asset hierarchy.
