Import a Model

If you want to replace an existing model, you must first delete the old one before importing the new one. You can also merge the new model with the existing model during import.

Note: Data source connectivity information is not preserved in the model you import to your system. After importing the model, reconfigure the data source properties in the model.

Go to ADMIN > Import/Export.

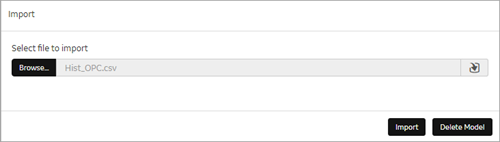

Select Browse to navigate to the .csv model file, and then select Import.

Note: Always import files that are of size 13 MB or less at a time. If the CSV is larger than 13 MB, split the file into multiple smaller files and import them one by one to Operations Hub. You can use a free .csv splitter tool to break the large file into smaller files.

Follow these instructions to view and download the log file in these browsers:

Option	Description
Chrome	To view the log file, right-click [log] to open it in a new tab. To download and then view the log file, click [log]. You can view the file in the Downloads folder.
Microsoft Edge	To view the log file, click [log], and then Open. To download and view the log file, click [log], and then Save. You can then view the log file by selecting View downloads.

To view the model in runtime, select Runtime from the user icon drop-down list at the top right of the screen.
By default, the highest asset point in the model hierarchy appears.
To navigate through the asset objects in the hierarchy model, select the Asset Context Selector, .
The model displays the relevant data in context to each asset object selected in the navigation scheme.
