Data Models
360 View Data Model

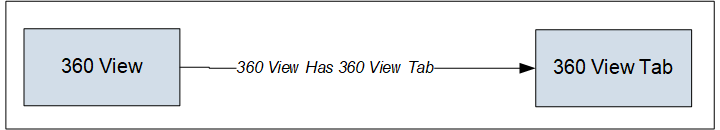

The following diagram shows how the families used in 360 View are related to one another.
Note: In the diagram, boxes represent entity families and arrows represent relationship families that are configured in the baseline database. You can determine the direction of the each relationship definition from the direction of the arrow head: the box from which the arrow originates is the predecessor, and the box to which the arrow head points is the successor.
Asset Groups Data Model

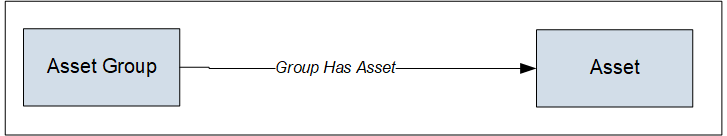

The following diagram shows how the families used in Asset Groups created in the Asset Groups page in 360 View are related to one another.
Note: In the diagram, boxes represent entity families and arrows represent relationship families that are configured in the baseline database. You can determine the direction of the each relationship definition from the direction of the arrow head: the box from which the arrow originates is the predecessor, and the box to which the arrow head points is the successor.

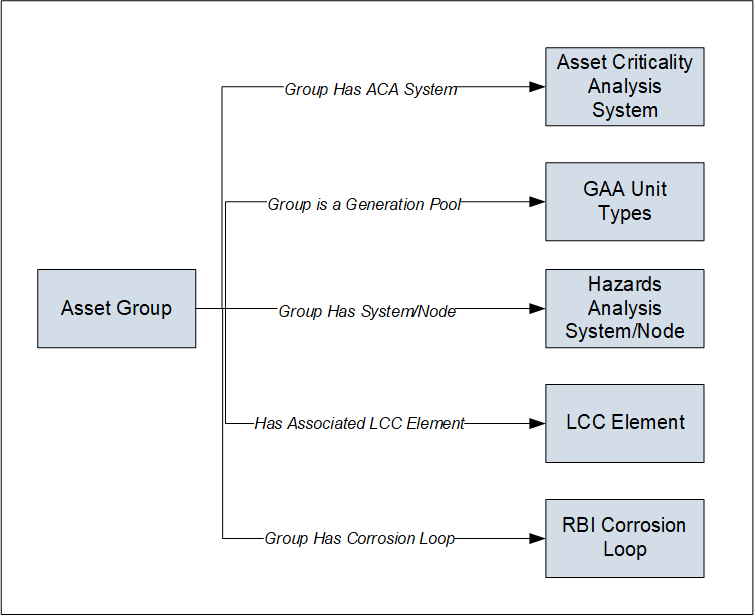

Asset includes families such as Equipment and Functional Locations.In addition, Asset Groups created by certain analysis workflows use relationships other than Group Has Asset, as shown in the following image.
