Overview

Overview of the eLog Module

Most manufacturing organizations use the concept of a shift to define the work routine for personnel who work directly on the processes of their business. In such organizations, the personnel sign in to their shifts when they enter their workplaces, and they sign out of their shifts when they leave their workplaces.

The eLog module can be used by personnel (that is, Team Members) working shifts to communicate and document their work. It provides an interactive and auditable electronic logbook for use by the personnel who work in a pre-defined schedule. Using eLog, you can create a log entry of reports related to your shift. The log entry covers aspects such as the shift transition, safety issues, and occurrences pertaining to the operation of assets.

The log entry from each shift can determine the subsequent activities, as needed. This log entry, when published, forms an auditable record of work.

Access the eLog Overview Page

Procedure

In the Applications menu, navigate to the HEALTH section, and then select eLog.
Tip: You can also access the eLog information for a specific asset hierarchy level (that is, an Equipment or a Functional Location). To do so:
  1. In the main navigation bar, select .

    The Asset Hierarchy appears.

  2. Select the asset for which you want to access the eLog Overview page.

    The workspace for the selected asset appears. In the Health section, in the eLog row, the count of all log entries and the count of sign-in and sign-out logs appear as a link. These log entries and sign-in and sign-out logs are associated with the selected asset hierarchy level for the last 30 days.

  3. Select the link.

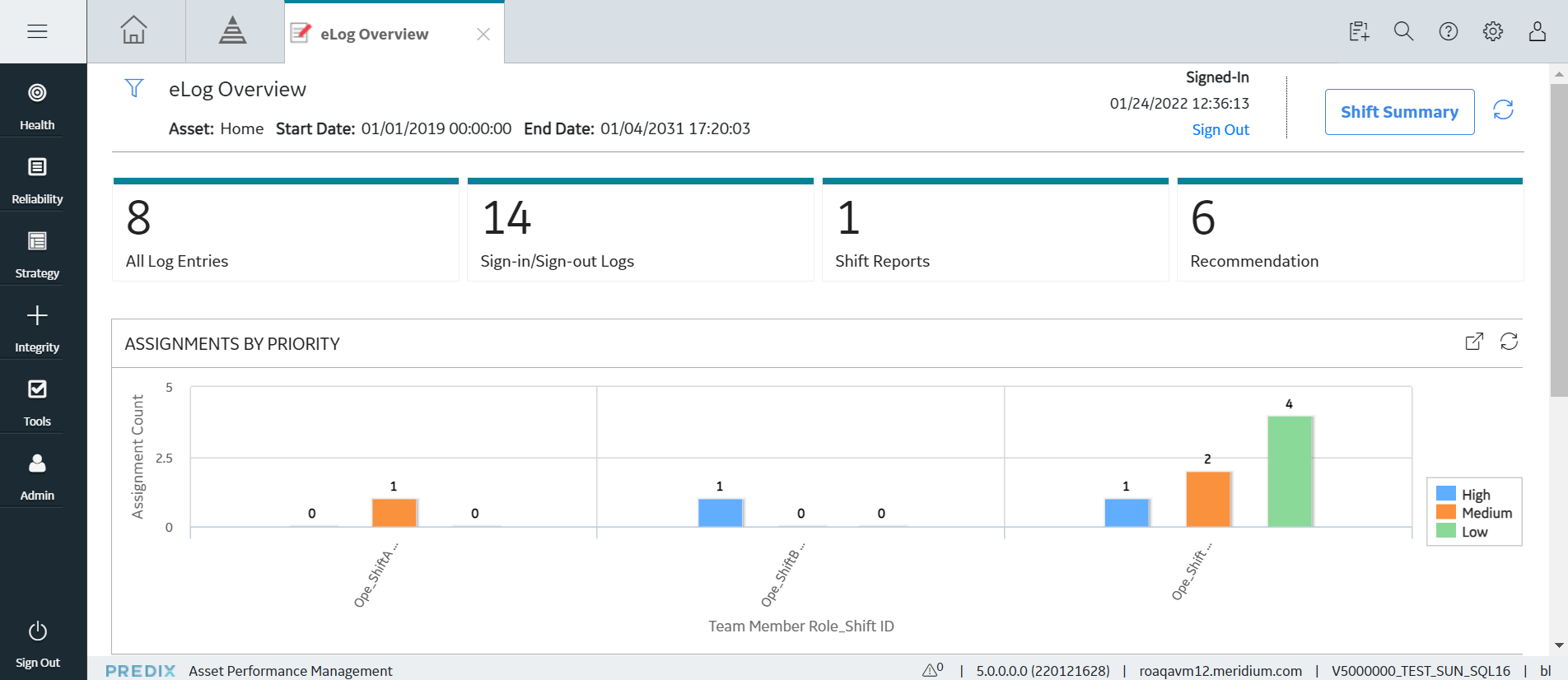

The eLog Overview page appears, displaying the following sections:
  • All Log Entries: Contains a table of all log entries. The table contains the following columns:
    • HEADLINE: Contains the headline of the log entry.
    • LOG ENTRY TYPE: Contains the type of the log entry.
    • PRIORITY: Contains the priority of the log entry.
    • STATUS: Contains the status of the log entry.
    • FUNCTIONAL LOCATION: Contains the Functional Location associated with the log entry.
    • SHIFT: Contains the Shift associated with the log entry.
    • CREATED BY: Contains the name of the Team Member who created the log entry.
    • CREATION TIMESTAMP: Contains the date and time when the log entry was created.
  • Sign-in/Sign-out Logs: Contains a table of sign-in and sign-out logs of all Team Members. The table contains the following columns:
    • EMPLOYEE: Contains the name of the Team Member who signed in to the Shift associated with the log.
    • ROLE: Contains the Role that the employee used when signing in to the Shift (that is, the value that the employee selected in the Role box in the Sign In window).
    • TAKING OVER FROM: Contains, if applicable, the name of the Team Member from whom the employee took over the Shift (that is, the value that the employee selected in the Taking Over From box in the Sign In window).
    • SIGN IN TIME: Contains the date and time when the employee signed in to the Shift.
    • SIGN OUT TIME: Contains the date and time when the employee signed out of the Shift.
      Note: If the employee is still signed in to the Shift, this column will be blank.
    • FUNCTIONAL LOCATION ID: Contains the Functional Location associated with the log.
    • SHIFT ID: Contains the Shift associated with the log.
  • Shift Reports: Contains a table of reports configured for Shifts. The table contains the following columns:
    • REPORT NAME: Contains the name of the report.
    • REPORT PATH: Contains the path of the report.
    Note: By default, only the Shift Log Entry Report appears in the Shift Reports section. You can, however, create alternative templates for the Shift report in the following location: Public\Meridium\Modules\eLog\SSRS. The alternative Shift reports will then appear in the Shift Reports section.
  • Recommendation: Contains a table of recommendations associated with the Shifts. The table contains the following columns:
    • RECOMMENDATION ID: Contains the unique ID of the Recommendation.
    • TYPE: Contains the type of the Recommendation.
    • STATE: Contains the current state of the Recommendation.
    • HEADLINE: Contains a short description of the Recommendation.
    • FUNCTIONAL LOCATION ID: The Record ID of the Functional Location record linked to the Shift record with which the Recommendation is associated.
    • ASSET ID: Contains the unique ID of the Asset record with which the Recommendation is associated.
    • CREATED ON: Contains the date on which the Recommendation was created.
    • CREATED BY: Contains the name of the Security User who created the Recommendation.
    • ASSIGNED TO: Contains the first and last name of the person to whom the recommendation is assigned.
    • PRIORITY: Contains the priority value used to rank the importance of the Recommendation.
    • TARGET COMPLETION DATE: Contains the date by which the Recommendation is intended to be implemented
  • ASSIGNMENTS BY PRIORITY: Contains a bar chart that represents the count of assignments by priority in each shift.
    • High: Represents the count of assignments that have a high priority.
    • Medium: Represents the count of assignments that have a medium priority.
    • Low: Represents the count of assignments that have a low priority.
    Note: Shifts that do not contain an assignment are not represented in the bar chart.

    The category (x) axis represents Shifts that contain assignments; these assignments are categorized based on their priorities (that is, High, Medium, and Low). The value (y) axis represents the count of the assignments.

    Note: You can select any chart column to view the assignments within the shift. In My Assignments page, adjust the date filter to view all the assignments for that desired period.
  • LOG ENTRIES BY TYPE: Contains a doughnut chart that represents the distribution of the log entries in the Shifts based on the log entry types.
  • TOP 5 SHIFTS WITH HIGHEST NUMBER OF LOG ENTRIES: Contains a bar chart that represents the top five Shifts with the highest number of log entries in descending order. The x-axis represents the Shifts that contain log entries; the y-axis represents the count of the log entries.
    Note:
    • If two of the six Shifts that qualify to be represented in the bar chart have the same number of log entries, only the oldest of the two Shifts is represented in the chart along with the remaining four Shifts.
    • If two of the five Shifts that qualify to be represented in the bar chart have the same number of log entries, between these two Shifts, the oldest of the two appears first in the chart.
Note: The Shifts associated with the contents in each section are based on the asset filter (that is, Asset, Start Date, and End Date). Using , you can filter the contents based on the following information:
  • Asset: Indicates the asset hierarchy level for the Shift.
  • Start Date: Indicates the start date and time of the period.
  • End Date: Indicates the end date and time of the period.
Note: To access the detailed chart, select .
