Draw Line Manually

The Draw Line option allows you to draw a Production Line manually anywhere on the current analysis. For example, the following steps demonstrate how to draw a Nameplate Line using Draw Line option.

Steps

Define a Nameplate Line.
On the Add/Modify Demonstrated Line window, select Draw Line, and then select OK.

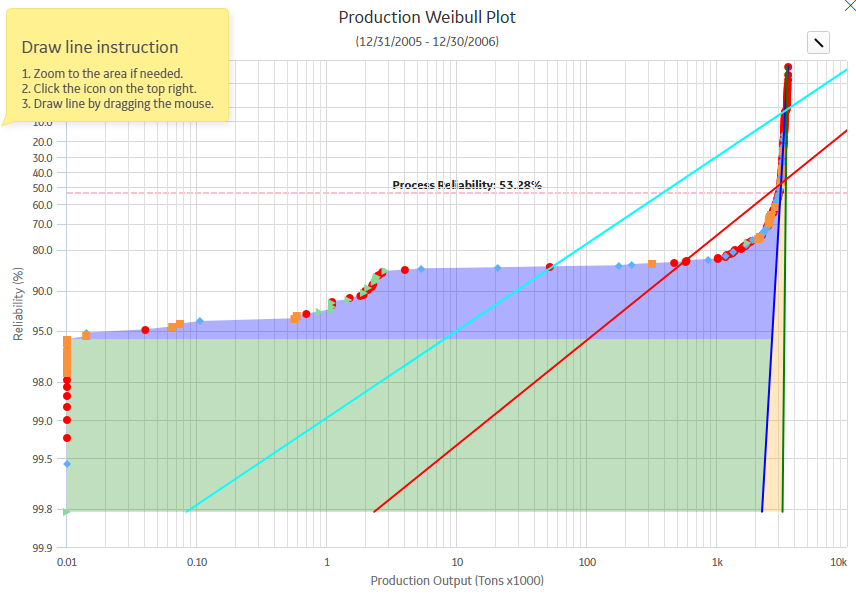

The Production Data plot appears in a new window.
Select .
Drag the pointer where you want the line to appear.

The Nameplate Line is added to the Production Data plot.
