PRT Database Hierarchy

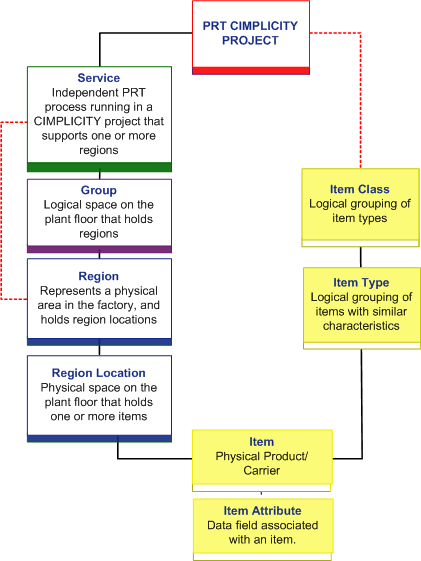

The PRT database supports the tracking model and houses all of the tracking and configuration data. The following diagram illustrates the hierarchy within the database. Note that data at the base level are related to one or more database types in the next level up. This kind of relational database serves to simplify and expedite searches for items in the tracking model.

9. PRT Services: Defined8. Groups: Defined4. Regions: Defined5. Region Locations: Defined2. Item Types: DefinedItem Attributes: Defined3. Item Classes: Defined2. Item Types: Defined
