View Trend Cards

Trend Cards provide a trend-line analysis view of selected data variables for an asset within a selected time period. Trend Card charts can display both real-time and historical data.

You can choose up to 20 data variables at a time per asset. These selections persist for the duration of the browser session. The selection persists for an asset even if you navigate to another asset and return.
Note: Boolean and string tags from real-time data sources are not supported in the Trend Card.
  1. Select , the Asset Context Selector, to choose your context.
    This displays the relevant data in context to each asset selected in the navigation scheme.
  2. Select , the Trend icon.
  3. Select the down arrow at the top right of the Trend Card.

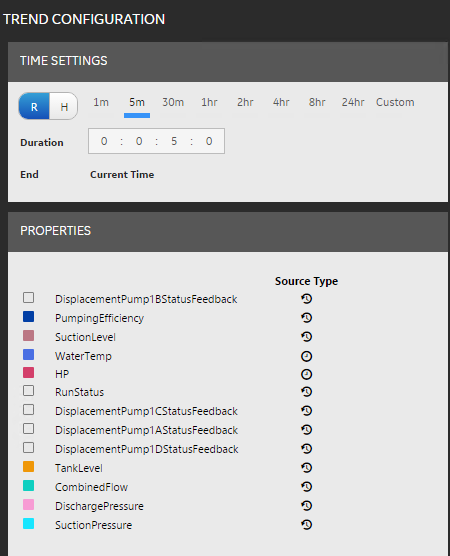

    The TREND CONFIGURATION window appears showing the time settings as well as the asset's data variables with their associated data source type icons, as shown in the following example. The icon represents a historical data source and the icon indicates a real-time data source.

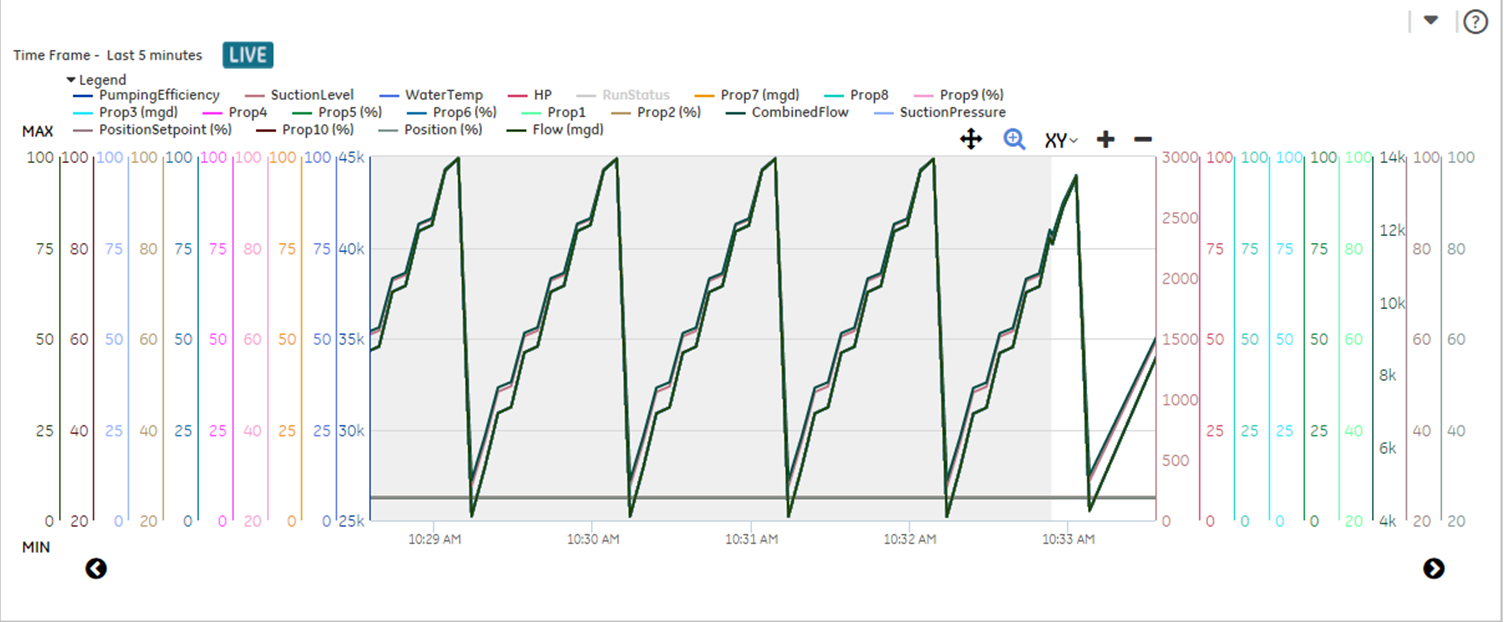

  4. Select Real-time (R) or Historical (H). In the Real-time (R) view, you can see both real-time and historical data that is charted from the current time. The initial view shows a gray background, indicating the time period before opening the Trend Card. Only values coming from historical data sources will appear during this time frame. Subsequent real-time data appears with a white background, as shown in the following chart. In the Historical (H) view, you can see historical data charted on a start time and a duration.
  5. To view real-time trend data, do the following:
    1. Select or deselect the asset's data variables.
      A color is assigned to each selected data variable.
    2. In Duration, select the time span to view past data activity from the current time. For example, to display the last hour of activity trends, select one hour.
    3. In the field below the duration selector, you can specify a custom duration using the format of days:hours:minutes:seconds.
  6. To view historical trend data, do the following:
    1. Select or deselect the asset's data variables.
      A color is assigned to each selected data variable.
    2. Select the start time to begin viewing historical data trends.
    3. In Duration, select the time span to view data activity beginning at the start time. For example, to display 12 hours of activity trends from the start time, select 12 hours.
    4. In the field below the duration selector, you can specify a custom duration using the format of days:hours:minutes:seconds.
