About GIS Configuration

The Geographic Information System (GIS) feature of APM is used to store and display geospatial data associated with different entities. The map tiles required for this functionality are provided by utility mapping service providers. The GIS feature is designed to work in conjunction with the mapping service provider of your choice. You can select a mapping service provider or modify the provider to which you have subscribed in the GIS Configuration page.

You must be a Super User or a member of the MI Configuration Role Security Group to modify the GIS configuration.

Access the GIS Configuration Page

Procedure

In the Applications menu, navigate to ADMIN > Operations Manager > GIS Configuration.

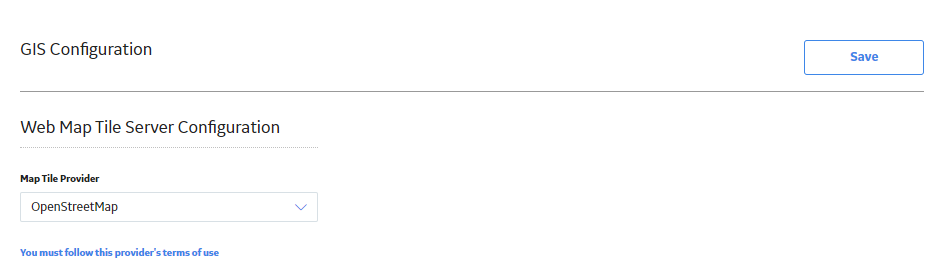

The GIS Configuration page appears.

What To Do Next

Configure the Map Tile Server

Procedure

  1. Access the GIS Configuration page.
  2. In the Map Tile Provider box, select the appropriate provider, and then select Save.
    Tip: You can also enter the URL of a custom map tile provider.
    Note: The default map tile provider is OpenStreetMap, which is a free service. Depending on the map tile provider, you may have to enter an API key before you can select Save.
    Important: You must accept and adhere to the terms of service of the provider for the map tiles to appear correctly.

    The map tile server is configured.
