About the Failure Modes and Effects Analysis (FMEA) Data Loaders
The Failure Modes and Effects Analysis (FMEA) Data Loader, Failure Modes and Effects Analysis (FMEA) Asset Templates Data Loader, and Failure Modes and Effects Analysis (FMEA) Analysis Templates Data Loader allow a user to load full FMEA analyses, analysis templates, and asset templates from data in fixed format Excel workbooks. The Excel workbooks contain worksheets that contain data to populate various nodes/records in the populated data model.
About the Failure Modes and Effects Analysis (FMEA) Data Loaders Requirements
The following data must be present prior to loading FMEA data:
- Equipment Taxonomy
- Equipment and Functional Location records
Mapping
The Failure Modes and Effects Analysis (FMEA) Data Loaders map the datasheet columns in the Excel workbook to fields in APM families by position. The captions may be changed as needed, but the column positions should not be moved.
Security Settings
The Security User performing the data load operation must be associated with either the MI Data Loader User or MI Data Loader Admin Security Role as well as the MI Strategy Admin role or MI Strategy User role.

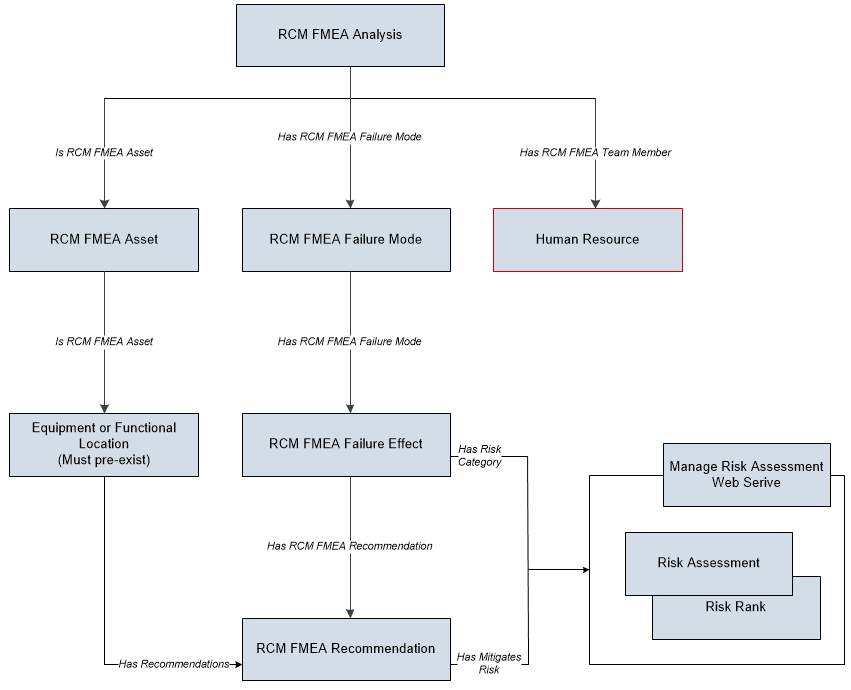

About the Failure Modes and Effects Analysis (FMEA) Data Loaders Data Model
The data for FMEA families is loaded from Excel workbooks containing multiple worksheets each. This includes Analysis, Team Members, Assets, Failure Modes, Failure Effects, and Recommendations.
About the Failure Modes and Effects Analysis (FMEA) Data Loaders General Loading Strategy
This section describes any prerequisites to loading the data and the order in which the data will be loaded.
Load Sequence
The FMEA data loads must be performed in a specific sequence to successfully populate fields, create records, and link them to the predecessor and/or successor records:
Failure Modes and Effects Analysis (FMEA) Data Loader
- Create or update RCM FMEA Analysis of type FMEA.
- Link the Existing Team Members to the Analysis. Team members exist in the Human Resource family and must exist prior to the load.
- Create or update an RCM FMEA Asset and link it to the analysis.
- Locate the physical asset (Equipment or FLOC) and link it to the RCM FMEA Asset.
- Create or update a Failure Mode and link it to the Analysis.
- Create or update a Failure Effect and link it to the Failure Mode.
- Create the Unmitigated Risk Assessment and Risk Rank records and link to the Failure Effect.
- Create or update the RCM FMEA Recommendation and link it to the associated Failure Effect.
- Create the Mitigated Risk Assessment and Risk Rank records and link to the Failure Effect.
- Create or update the RCM FMEA Secondary Actions and link it to the associated Recommendation.
Failure Modes and Effects Analysis (FMEA) Asset Templates Data Loader
- Create or update an RCM FMEA Template and link it to an asset.
- Create or update an RCM FMEA Asset.
- Create or update a Failure Mode and link it to the asset.
- Create or update a Failure Effect and link it to the Failure Mode.
- Create or update the RCM FMEA Recommendation and link it to the associated Failure Effect.
- Create or update the RCM FMEA Secondary Actions and link it to the associated Recommendation.
Failure Modes and Effects Analysis (FMEA) Analysis Templates Data Loader
- Create or update an RCM FMEA Template and link it to an analysis.
- Create or update RCM FMEA Analysis of type FMEA.
- Link the Existing Team Members to the Analysis. Team members exist in the Human Resource family and must exist prior to the load.
- Create or update an RCM FMEA Asset and link it to the analysis.
- Create or update a Failure Mode and link it to the Analysis.
- Create or update a Failure Effect and link it to the Failure Mode.
- Create or update the RCM FMEA Recommendation and link it to the associated Failure Effect.
- Create or update the RCM FMEA Secondary Actions and link it to the associated Recommendation.
Risk Assessment Management and Web Service
FMEA and RCM have mitigated and unmitigated risk assessments for Failure Effects and Recommendations respectively. Each Risk Assessment has related Risk Rank records which is in essence a sub-model. The FMEA loaders use the Risk Assessment service to manage the Risk Assessment and underlying Risk Rank records.
Special Note on Failure Effect
The Failure Effect also acts as the Risk Assessment record. Review the Failure Effect web service and you will see that the manage operation creates a Risk Rank collection. There is no need to create an additional Risk Assessment record linked to the Failure Effect.
Special Note on RCM FMEA Recommendation
The Recommendation will need to have a linked Risk Assessment record if there are mitigated values in the worksheet. The loader should locate the Risk Assessment record linked to the Recommendation. If one exists, then update it.
If one does not exist, then use the Risk Assessment web service to create it and use the relationship Mitigates Risk [MIR_MITRISK ] to relate it to the Recommendation.
Special Note on Risk Assessment ID Field
You can use any combination of fields to uniquely identify the record, you are not limited to ID. The ID on the Risk Assessment record has no purpose but the Web Service requires it.
If the service requires an ID, then auto-generate is used with the understanding that it will not be used to perform a lookup.
There are two entities and each has two scenarios with regards to the Risk Assessment. None of them require an ID since no attempt is being made to find a risk assessment by ID.
|
Entity |
Scenario |
Processing Assumptions |
Additional Validation and Integrity Logic |
|---|---|---|---|
|
Failure Effect |
Unmitigated (Create new assessment) |
Since the Failure Effect is the Risk Assessment, there is no need to create a Risk Assessment record.
|
The unmitigated fields on the Failure Effect Record should not be null if the user is loading RCM FMEA recommendations that have a mitigated risk rank. When created through the UI, the recommendation always inherits the unmitigated Risk Assessment from the failure effect and thus we could be creating a situation where there are mitigated Risks without corresponding Unmitigated Risks. Conversely, a recommendation cannot have a Risk Assessment whose Failure Effect does not have one Risk Assessment, or else an out of sync condition will be created. |
|
Failure Effect |
Unmitigated (Update assessment) |
Update the unmitigated risk fields on the failure effect | |
|
RCM FMEA Recommendation |
Mitigated (Create new assessment) |
Check if there is an existing mitigated risk assessment linked to the Recommendation. There can only be one. If none exists, then we create it. | |
|
RCM FMEA Recommendation |
Mitigated (Update assessment) |
Check if there is an existing mitigated risk assessment linked to the Failure Effect. If one does exist then update the risk assessment. |
About the Failure Modes and Effects Analysis (FMEA) Data Loader Workbooks Layout and Use
This section provides a high-level overview and explanation of how the FMEA data loader workbooks are constructed.
In order to import data using the Failure Modes and Effects Analysis (FMEA) Data Loaders, APM provides Excel workbooks, , FMEA_Asset_Template_Data_Loader.xlsx, and FMEA_Analysis_Template_Data_Loader.xlsx, which support baseline data loading of FMEA analyses, FMEA asset templates, and FMEA analysis templates, in APM. These workbooks must be used to perform the data load.
The following table lists the worksheets that are included in the Failure Modes and Effects Analysis (FMEA) Data Loader workbook.
Failure Modes and Effects Analysis (FMEA) Data Loader
| Worksheet | Description |
|---|---|
|
Analysis |
The analysis is the root record in the data model and is created first. Links to other records are established after the child record is created. |
|
Team Members |
This worksheet is used to load team members data for the analysis. Team members are linked to the FMEA Analysis through the Has RCM FMEA Team Member relationship. Note: If the user wants to add team members, the individuals must already have an entry in APM.
|
|
Assets |
This worksheet is used to load data into the various assets linked to the Analysis record. The FMEA Asset is a virtual asset that links the actual equipment or functional location to the analysis. This node must be created and linked to the analysis using information from the asset ID. |
|
Failure Modes |
This worksheet is used to load data into the Failure Mode family node. The FMEA Failure Mode is linked directly to the virtual asset. |
|
Failure Effects |
This worksheet is used to load data into the Failure Effect family node. The Failure Effect is linked to both the Failure Mode and the associated Recommendation record. See the Recommendations section for its relationship. |
|
Recommendations |
This worksheet is used to load data into the Recommendations. FMEA Recommendations are linked to the associated Failure Effects. Failure Effect can have multiple recommendations, but each one must be unique. |
|
Secondary Actions |
This worksheet is used to load data into the Secondary Actions. Secondary Actions are linked to the associated Recommendations. |
Analysis Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
| Analysis Long Description | MI_AN_LONG_DESCR_TX | Text | None |
|
Start Date |
MI_AN_ANALY_START_DATE_DT |
Date |
None |
|
End Date |
MI_AN_ANALY_END_DATE_DT |
Date |
None |
|
Re-Evaluation Date |
MI_RCMANALY_ANALY_REEV_D |
Date |
None |
Team Members Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
|
User ID |
SEUS_ID |
Character (255) |
This is a key field. |
Relationship:
| Predecessor | Relationship | Successor |
|---|---|---|
|
MI_RCMANALY |
MIR_HRCMTMMEM |
MI Human Resource |
Assets Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
Used to locate Analysis. |
|
Asset ID Value |
ASSET_ID_CHR |
Character (255) |
This is a key field. |
| Asset ID Field | ASSET_FIELD_ID | Character (255) | This is a key field. |
|
Asset Family ID |
ASSET_FAMILY_ID |
Character (255) |
Used to determine which MI family to create, by identifying whether the Asset is an Equipment or Functional Location. The valid values are:
|
| CMMS ID |
ASSET_CMMS_ID |
Character (255) |
None |
| CMMS Value | ASSET_CMMS_VALUE | Character (255) |
None |
Relationships:
| Predecessor | Relationship | Successor |
|---|---|---|
|
MI_RCMANALY |
MIR_HRCMEQP |
MI_RCMEQPMT |
| Predecessor | Relationship | Successor |
|---|---|---|
|
MI_EQUIP000 |
MIR_IRCMEQP |
MI_RCMEQPMT |
|
MI_FNCLOC00 |
MIR_IRCMEQP |
MI_RCMEQPMT |
Failure Mode Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
|
Asset ID Value |
ASSET_ID_CHR |
Character (255) |
This is a key field. |
|
Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
| Long Description |
MI_RCMFMODE_LNG_DESC_T |
Text | None |
| Maintainable Item | MI_RCMFMODE_MAINT_ITEM_C | Character (50) | None |
| Damage Code | MI_RCMFMODE_CONDI_DAMA_C | Character (50) | None |
|
Failure Pattern |
MI_RCMFMODE_FAIL_SHP_FACT_C |
Character (40) |
None |
|
PF Interval |
MI_RCMFMODE_PF_INTER_N |
Numeric |
None |
|
PF Interval Units |
MI_RCMFMODE_PF_INTER_UNITS_C |
Character (40) |
None |
Relationships:
| Predecessor | Relationship | Successor |
|---|---|---|
|
MI_RCMEQPMT |
MIR_HRCMFMD |
MI_RCMFMODE |
Failure Effects Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
| Asset ID Field | ASSET_ID_FIELD | Character (255) | This is a key field. |
| Asset Family ID | ASSET_FAMILY_ID | Character (255) | This is a key field. |
|
Effect Name |
MI_RCMFEFFT_NAME_C |
Character (255) |
None |
|
Effect Long Description |
MI_RCMFEFFT_LNG_DESC_T |
Text |
None |
|
Effect Impact |
MI_RCMFEFFT_EFF_IMPACT_C |
Character (40) |
None |
|
(ENVIRONMENT) Consequence |
ENVIRONMENT|MI_CONSE_N | Numeric |
None |
|
(ENVIRONMENT) Probability |
ENVIRONMENT|MI_PROB_N | Numeric |
None |
|
Failure Mode Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
|
(FINANCIAL) Consequence |
FINANCIAL|MI_CONSE_N | Numeric |
None |
| (FINANCIAL) Maintenance Cost | FINANCIAL|MI_RISK_MAIN_COST_N | Numeric |
None |
| (FINANCIAL) Probability | FINANCIAL|MI_PROB_N | Numeric |
None |
| (FINANCIAL) Production Loss | FINANCIAL|MI_RISK_PROD_LOSS_N | Numeric |
None |
| (OPERATIONS) Consequence | OPERATIONS|MI_CONSE_N | Numeric |
None |
| (OPERATIONS) Probability | OPERATIONS|MI_PROB_N | Numeric |
None |
| (SAFETY) Consequence | SAFETY|MI_CONSE_N | Numeric |
None |
| (SAFETY) Probability | SAFETY|MI_PROB_N | Numeric |
None |
| Basis for Assessment | MI_RCMFEFFT_BASIS_T | Text | None |
Relationships:
| Predecessor | Relationship | Successor |
|---|---|---|
|
MI_RCMFMODE |
MIR_HRCMFEF |
MI_RCMFEFFT |
Recommendations Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
|
Effect Name |
MI_RCMFEFFT_NAME_C |
Character (255) |
This is a key field. |
|
Headline |
MI_REC_SHORT_DESCR_CHR |
Character (255) |
None |
|
Description |
MI_REC_LONG_DESCR_TX |
Text |
None |
|
Business Impact |
MI_REC_IMPAC_CHR |
Character (100) |
None |
|
Shutdown Required? |
MI_RECRCM_SYS_SHUTDN_REQ_L |
Boolean |
None |
|
Target Completion Date |
MI_REC_TARGE_COMPL_DATE_DT |
Date |
None |
|
Action Type |
MI_RECRCM_ACTIO_TYPE_C |
Character (5) |
None |
|
Interval |
MI_RECRCM_INTER_N |
Numeric |
None |
|
Interval Units |
MI_RECRCM_INTER_UNITS_C |
Character (50) |
None |
| Nonrecurring |
MI_RECRCM_NONRE_L | Logical |
Defaults to False when no value. |
|
Performance Interval |
MI_RECRCM_PERFO_INTER_N |
Numeric |
None |
|
Performance Interval Units |
MI_RECRCM_PERFO_INTER_UNITS_C |
Character (50) |
None |
|
Estimated Cost |
MI_RECRCM_ESTIM_COST_N |
Numeric |
None |
|
Estimated Cost Basis |
MI_RECRCM_COST_BASIS_C |
Character (255) |
None |
|
Recommended Resource |
MI_RECRCM_RECOMM_RSRC_C |
Character |
Must match a resource configured in the system picklist for this field. |
|
(ENVIRONMENT) Consequence |
ENVIRONMENT|MI_CONSE_N | Numeric |
None |
|
(ENVIRONMENT) Probability |
ENVIRONMENT|MI_PROB_N | Numeric |
None |
|
(FINANCIAL) Consequence |
FINANCIAL|MI_CONSE_N | Numeric |
None |
| (FINANCIAL) Maintenance Cost | FINANCIAL|MI_RISK_MAIN_COST_N | Numeric |
None |
| (FINANCIAL) Probability | FINANCIAL|MI_PROB_N | Numeric |
None |
| (FINANCIAL) Production Loss | FINANCIAL|MI_RISK_PROD_LOSS_N | Numeric |
None |
| (OPERATIONS) Consequence | OPERATIONS|MI_CONSE_N | Numeric |
None |
| (OPERATIONS) Probability | OPERATIONS|MI_PROB_N | Numeric |
None |
| (SAFETY) Consequence | SAFETY|MI_CONSE_N | Numeric |
None |
| (SAFETY) Probability | SAFETY|MI_PROB_N | Numeric |
None |
| Basis for Assessment | MI_RCMFEFFT_BASIS_T | Text | None |
Relationships:
| Predecessor | Relationship | Successor |
|---|---|---|
|
MI_RCMFEFFT |
MIR_HRCMREC |
MI_RECRCM |
Secondary Actions Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
| Analysis Short Description | MI_AN_SHORT_DESCR_CHR | Character (255) | This is a key field. |
| Asset ID Value | ASSET_ID_CHR | Character (255) | This is a key field. |
| Asset ID Field | ASSET_ID_FIELD | Character (255) | This is a key field. |
| Asset Family ID | ASSET_FAMILY_ID | Character (255) | This is a key field. |
| Failure Mode Name | MI_RCMFMODE_NAME_C | Character (255) | This is a key field. |
| Effect Name | MI_RCMFEFFT_NAME_C | Character (255) | This is a key field. |
| Recommendation Headline | MI_REC_SHORT_DESCR_CHR | Character (255) | None |
| Name | MI_ACTION_SHORT_DESC_C | Character (255) | None |
| Description | MI_ACTION_DESCRIPTION_T | Character (255) | None |
| Basis | MI_ACTION_BASIS_C | Character (255) | None |
| Type | MI_ACTION_TYPE_C | Character (255) | None |
| Condition Monitoring Type | MI_ACTION_CM_TYPE_C | Character(50) | None |
| Interval | MI_ACTION_INTV_N | Numeric | None |
| Interval Units | MI_ACTION_INTV_UNITS_C | Character(50) | None |
| Resource Cost | MI_ACTION_RESOURCE_COST_N | Numeric | None |
| Shutdown Required | MI_ACTION_SHUTDOWN_L | Boolean | None |
Failure Modes and Effects Analysis (FMEA) Asset Templates Data Loader
| Worksheet | Description |
|---|---|
|
Assets |
This worksheet is used to load data into the various assets linked to the Analysis record. The FMEA Asset is a virtual asset that links the actual equipment or functional location to the analysis. This node must be created and linked to the analysis using information from the asset ID. |
|
Failure Modes |
This worksheet is used to load data into the Failure Mode family node. The FMEA Failure Mode is linked directly to the virtual asset. |
|
Failure Effects |
This worksheet is used to load data into the Failure Effect family node. The Failure Effect is linked to both the Failure Mode and the associated Recommendation record. See the Recommendations section for its relationship. |
|
Recommendations |
This worksheet is used to load data into the Recommendations. FMEA Recommendations are linked to the associated Failure Effects. Failure Effect can have multiple recommendations, but each one must be unique. |
| Templates | This worksheet is used to load data into the Templates. FMEA Templates are linked to the associated virtual assets, as well as a specific site. |
| Secondary Actions | This worksheet is used to load data into the Secondary Actions. Secondary Actions are linked to the associated Recommendations. |
Templates Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
| Site Reference Name | MI_SITEREF_NAME_C | Character (255) | This is a key field. |
| Template Short Description | MI_TM000000_SHRT_DSC_C | Character (255) | None |
| Template Long Description | MI_TM000000_LNG_DSC_T | Text | None |
Assets Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
| Asset Description |
MI_RCMEQPMT_DESC_C |
Text |
None |
Failure Modes Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
|
Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
| Long Description |
MI_RCMFMODE_LNG_DESC_T |
Text | None |
| Maintainable Item | MI_RCMFMODE_MAINT_ITEM_C | Character (50) | None |
| Damage Code | MI_RCMFMODE_CONDI_DAMA_C | Character (50) | |
|
Failure Pattern |
MI_RCMFMODE_FAIL_SHP_FACT_C |
Character (40) |
None |
|
PF Interval |
MI_RCMFMODE_PF_INTER_N |
Numeric |
None |
|
PF Interval Units |
MI_RCMFMODE_PF_INTER_UNITS_C |
Character (40) |
None |
Failure Effects Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
|
Mode Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
|
Effect Name |
MI_RCMFEFFT_NAME_C |
Character (255) |
This is a key field. |
|
Effect Long Description |
MI_RCMFEFFT_LNG_DESC_T |
Text |
None |
|
Effect Impact |
MI_RCMFEFFT_EFF_IMPACT_C |
Character (40) |
None |
|
(ENVIRONMENT) Consequence |
ENVIRONMENT|MI_CONSE_N | Numeric |
None |
|
(ENVIRONMENT) Probability |
ENVIRONMENT|MI_PROB_N | Numeric |
None |
|
(FINANCIAL) Consequence |
FINANCIAL|MI_CONSE_N | Numeric |
None |
| (FINANCIAL) Maintenance Cost | FINANCIAL|MI_RISK_MAIN_COST_N | Numeric |
None |
| (FINANCIAL) Probability | FINANCIAL|MI_PROB_N | Numeric |
None |
| (FINANCIAL) Production Loss | FINANCIAL|MI_RISK_PROD_LOSS_N | Numeric |
None |
| (OPERATIONS) Consequence | OPERATIONS|MI_CONSE_N | Numeric |
None |
| (OPERATIONS) Probability | OPERATIONS|MI_PROB_N | Numeric |
None |
| (SAFETY) Consequence | SAFETY|MI_CONSE_N | Numeric |
None |
| (SAFETY) Probability | SAFETY|MI_PROB_N | Numeric |
None |
| Basis for Assessment | MI_RCMFEFFT_BASIS_T | Text | None |
Recommendations Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
|
Mode Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
|
Effect Name |
MI_RCMFEFFT_NAME_C |
Character (255) |
This is a key field. |
| Headline | MI_REC_SHORT_DESCR_CHR |
Character (255) | This is a key field. |
|
Description |
MI_REC_LONG_DESCR_TX |
Text |
None |
|
Business Impact |
MI_REC_IMPAC_CHR |
Character (100) |
None |
|
Shutdown Required? |
MI_RECRCM_SYS_SHUTDN_REQ_L |
Boolean |
None |
|
Target Completion Date |
MI_REC_TARGE_COMPL_DATE_DT |
Date |
None |
|
Action Type |
MI_RECRCM_ACTIO_TYPE_C |
Character (5) |
None |
|
Interval |
MI_RECRCM_INTER_N |
Numeric |
None |
|
Interval Units |
MI_RECRCM_INTER_UNITS_C |
Character (50) |
None |
| Nonrecurring |
MI_RECRCM_NONRE_L | Logical |
Defaults to False when no value. |
|
Performance Interval |
MI_RECRCM_PERFO_INTER_N |
Numeric |
None |
|
Performance Interval Units |
MI_RECRCM_PERFO_INTER_UNITS_C |
Character (50) |
None |
|
Estimated Cost |
MI_RECRCM_ESTIM_COST_N |
Numeric |
None |
|
Estimated Cost Basis |
MI_RECRCM_COST_BASIS_C |
Character (255) |
None |
|
Recommended Resource |
MI_RECRCM_RECOMM_RSRC_C |
Character |
Must match a resource configured in the system picklist for this field. |
|
(ENVIRONMENT) Consequence |
ENVIRONMENT|MI_CONSE_N | Numeric |
None |
|
(ENVIRONMENT) Probability |
ENVIRONMENT|MI_PROB_N | Numeric |
None |
|
(FINANCIAL) Consequence |
FINANCIAL|MI_CONSE_N | Numeric |
None |
| (FINANCIAL) Maintenance Cost | FINANCIAL|MI_RISK_MAIN_COST_N | Numeric |
None |
| (FINANCIAL) Probability | FINANCIAL|MI_PROB_N | Numeric |
None |
| (FINANCIAL) Production Loss | FINANCIAL|MI_RISK_PROD_LOSS_N | Numeric |
None |
| (OPERATIONS) Consequence | OPERATIONS|MI_CONSE_N | Numeric |
None |
| (OPERATIONS) Probability | OPERATIONS|MI_PROB_N | Numeric |
None |
| (SAFETY) Consequence | SAFETY|MI_CONSE_N | Numeric |
None |
| (SAFETY) Probability | SAFETY|MI_PROB_N | Numeric |
None |
| Basis for Assessment | MI_RCMFEFFT_BASIS_T | Text | None |
Secondary Actions Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
| Template ID | MI_TM000000_ID | Character (255) | This is used to identify the template. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
| Mode Name | MI_RCMFMODE_NAME_C | Character (255) | This is a key field. |
| Effect Name | MI_RCMFEFFT_NAME_C | Character (255) | This is a key field. |
| Recommendation Headline | MI_REC_SHORT_DESCR_CHR | Character (255) | None |
| Name | MI_ACTION_SHORT_DESC_C | Character (255) | None |
| Description | MI_ACTION_DESCRIPTION_T | Character (255) | None |
| Basis | MI_ACTION_BASIS_C | Character (255) | None |
| Type | MI_ACTION_TYPE_C | Character (255) | None |
| Condition Monitoring Type | MI_ACTION_CM_TYPE_C | Character(50) | None |
| Interval | MI_ACTION_INTV_N | Numeric | None |
| Interval Units | MI_ACTION_INTV_UNITS_C | Character(50) | None |
| Resource Cost | MI_ACTION_RESOURCE_COST_N | Numeric | None |
| Shutdown Required | MI_ACTION_SHUTDOWN_L | Boolean | None |
Failure Modes and Effects Analysis (FMEA) Analysis Templates Data Loader
| Worksheet | Description |
|---|---|
| Templates | This worksheet is used to load data into the Templates. FMEA Templates are linked to the associated virtual assets, which are linked to specific sites. |
|
Analysis |
The analysis is the root record in the data model and is created first. Links to other records are established after the child record is created. |
|
Team Members |
This worksheet is used to load team members data for the analysis. Team members are linked to the FMEA Analysis through the Has RCM FMEA Team Member relationship. Note: If the user wants to add team members, the individuals must already have an entry in APM.
|
|
Assets |
This worksheet is used to load data into the various assets linked to the Analysis record. The FMEA Asset is a virtual asset that links the actual equipment or functional location to the analysis. This node must be created and linked to the analysis using information from the asset ID. |
|
Failure Modes |
This worksheet is used to load data into the Failure Mode family node. The FMEA Failure Mode is linked directly to the virtual asset. |
|
Failure Effects |
This worksheet is used to load data into the Failure Effect family node. The Failure Effect is linked to both the Failure Mode and the associated Recommendation record. See the Recommendations section for its relationship. |
|
Recommendations |
This worksheet is used to load data into the Recommendations. FMEA Recommendations are linked to the associated Failure Effects. Failure Effect can have multiple recommendations, but each one must be unique. |
|
Secondary Actions |
This worksheet is used to load data into the Secondary Actions. Secondary Actions are linked to the associated Recommendations. |
Templates Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
| Site Reference Name | MI_SITEREF_NAME_C | Character (255) | This is a key field. |
| Template Short Description |
MI_TM000000_SHRT_DSC_C |
Character (255) | None |
| Template Long Description | MI_TM000000_LNG_DSC_T | Text | None |
Analyses Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
| Template ID | MI_TM000000_ID |
Character (255) |
Used to locate template. |
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
| Analysis Long Description | MI_AN_LONG_DESCR_TX | Text | None |
|
Start Date |
MI_AN_ANALY_START_DATE_DT |
Date |
None |
|
End Date |
MI_AN_ANALY_END_DATE_DT |
Date |
None |
|
Re-Evaluation Date |
MI_RCMANALY_ANALY_REEV_D |
Date |
None |
Team Members Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
| Template ID | MI_TM000000_ID |
Character (255) |
Used to locate template. |
|
User ID |
SEUS_ID |
Character (255) |
This is a key field. |
Assets Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
| Asset Description |
MI_RCMEQPMT_DESC_C |
Character (255) |
None |
Failure Modes Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
|
Mode Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
| Long Description |
MI_RCMFMODE_LNG_DESC_T |
Text | None |
| Maintainable Item | MI_RCMFMODE_MAINT_ITEM_C | Character (50) | None |
| Damage Code | MI_RCMFMODE_CONDI_DAMA_C | Character (50) | |
|
Failure Pattern |
MI_RCMFMODE_FAIL_SHP_FACT_C |
Character (40) |
None |
|
PF Interval |
MI_RCMFMODE_PF_INTER_N |
Numeric |
None |
|
PF Interval Units |
MI_RCMFMODE_PF_INTER_UNITS_C |
Character (40) |
None |
Failure Effects Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
|
Mode Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
|
Effect Name |
MI_RCMFEFFT_NAME_C |
Character (255) |
This is a key field. |
|
Effect Long Description |
MI_RCMFEFFT_LNG_DESC_T |
Text |
None |
|
Effect Impact |
MI_RCMFEFFT_EFF_IMPACT_C |
Character (40) |
None |
|
(ENVIRONMENT) Consequence |
ENVIRONMENT|MI_CONSE_N | Numeric |
None |
|
(ENVIRONMENT) Probability |
ENVIRONMENT|MI_PROB_N | Numeric |
None |
|
(FINANCIAL) Consequence |
FINANCIAL|MI_CONSE_N | Numeric |
None |
| (FINANCIAL) Maintenance Cost | FINANCIAL|MI_RISK_MAIN_COST_N | Numeric |
None |
| (FINANCIAL) Probability | FINANCIAL|MI_PROB_N | Numeric |
None |
| (FINANCIAL) Production Loss | FINANCIAL|MI_RISK_PROD_LOSS_N | Numeric |
None |
| (OPERATIONS) Consequence | OPERATIONS|MI_CONSE_N | Numeric |
None |
| (OPERATIONS) Probability | OPERATIONS|MI_PROB_N | Numeric |
None |
| (SAFETY) Consequence | SAFETY|MI_CONSE_N | Numeric |
None |
| (SAFETY) Probability | SAFETY|MI_PROB_N | Numeric |
None |
| Basis for Assessment | MI_RCMFEFFT_BASIS_T | Text | None |
Recommendations Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
|
Template ID |
MI_TM000000_ID |
Character (255) |
Used to locate template. |
|
Analysis Short Description |
MI_AN_SHORT_DESCR_CHR |
Character (255) |
This is a key field. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
|
Mode Name |
MI_RCMFMODE_NAME_C |
Character (255) |
This is a key field. |
|
Effect Name |
MI_RCMFEFFT_NAME_C |
Character (255) |
This is a key field. |
| Headline | MI_REC_SHORT_DESCR_CHR |
Character (255) | This is a key field. |
|
Description |
MI_REC_LONG_DESCR_TX |
Text |
None |
|
Business Impact |
MI_REC_IMPAC_CHR |
Character (100) |
None |
|
Shutdown Required? |
MI_RECRCM_SYS_SHUTDN_REQ_L |
Boolean |
None |
|
Target Completion Date |
MI_REC_TARGE_COMPL_DATE_DT |
Date |
None |
|
Action Type |
MI_RECRCM_ACTIO_TYPE_C |
Character (5) |
None |
|
Interval |
MI_RECRCM_INTER_N |
Numeric |
None |
|
Interval Units |
MI_RECRCM_INTER_UNITS_C |
Character (50) |
None |
| Nonrecurring |
MI_RECRCM_NONRE_L | Logical |
Defaults to False when no value. |
|
Performance Interval |
MI_RECRCM_PERFO_INTER_N |
Numeric |
None |
|
Performance Interval Units |
MI_RECRCM_PERFO_INTER_UNITS_C |
Character (50) |
None |
|
Estimated Cost |
MI_RECRCM_ESTIM_COST_N |
Numeric |
None |
|
Estimated Cost Basis |
MI_RECRCM_COST_BASIS_C |
Character (255) |
None |
|
Recommended Resource |
MI_RECRCM_RECOMM_RSRC_C |
Character |
Must match a resource configured in the system picklist for this field. |
|
(ENVIRONMENT) Consequence |
ENVIRONMENT|MI_CONSE_N | Numeric |
None |
|
(ENVIRONMENT) Probability |
ENVIRONMENT|MI_PROB_N | Numeric |
None |
|
(FINANCIAL) Consequence |
FINANCIAL|MI_CONSE_N | Numeric |
None |
| (FINANCIAL) Maintenance Cost | FINANCIAL|MI_RISK_MAIN_COST_N | Numeric |
None |
| (FINANCIAL) Probability | FINANCIAL|MI_PROB_N | Numeric |
None |
| (FINANCIAL) Production Loss | FINANCIAL|MI_RISK_PROD_LOSS_N | Numeric |
None |
| (OPERATIONS) Consequence | OPERATIONS|MI_CONSE_N | Numeric |
None |
| (OPERATIONS) Probability | OPERATIONS|MI_PROB_N | Numeric |
None |
| (SAFETY) Consequence | SAFETY|MI_CONSE_N | Numeric |
None |
| (SAFETY) Probability | SAFETY|MI_PROB_N | Numeric |
None |
| Basis for Assessment | MI_RCMFEFFT_BASIS_T | Text | None |
Secondary Actions Worksheet
| Field Caption | Field ID | Data Type (Length) | Comments |
|---|---|---|---|
| Template ID | MI_TM000000_ID | Character (255) | This is used to identify the template. |
| Analysis Short Description | MI_AN_SHORT_DESCR_CHR | Character (255) | This is a key field. |
| Asset ID | MI_RCMEQPMT_EQUIP_ID_C | Character (255) | This is a key field. |
| Mode Name | MI_RCMFMODE_NAME_C | Character (255) | This is a key field. |
| Effect Name | MI_RCMFEFFT_NAME_C | Character (255) | This is a key field. |
| Recommendation Headline | MI_REC_SHORT_DESCR_CHR | Character (255) | None |
| Name | MI_ACTION_SHORT_DESC_C | Character (255) | None |
| Description | MI_ACTION_DESCRIPTION_T | Character (255) | None |
| Basis | MI_ACTION_BASIS_C | Character (255) | None |
| Type | MI_ACTION_TYPE_C | Character (255) | None |
| Condition Monitoring Type | MI_ACTION_CM_TYPE_C | Character(50) | None |
| Interval | MI_ACTION_INTV_N | Numeric | None |
| Interval Units | MI_ACTION_INTV_UNITS_C | Character(50) | None |
| Resource Cost | MI_ACTION_RESOURCE_COST_N | Numeric | None |
| Shutdown Required | MI_ACTION_SHUTDOWN_L | Boolean | None |
