Asset Strategy Implementation (ASI) System Requirements

License Requirements

The following licenses are required to take full advantage of ASI functionality:

Asset Strategy Management
SAP Content for ASI

SAP System Requirements

The following SAP system versions are required to update items in SAP with changes made in ASI:

To create ASI/ASM objects in SAP and import ASI/ASM objects from SAP: SAP ECC 6.0 - Enhancement Packs (EhP) 1 and above.
To update ASI/ASM objects in SAP: SAP ECC 6.0 - Enhancement Packs (EhP) 5 and above.

Note: For supported SAP releases, see the SAP System Requirements section in APM Connect System Requirements.

Additional Components Required

In addition to the basic GE Digital APM system architecture, your system must also contain the following additional components:

The Asset Strategy Management (ASM) module. ASI allows you to build Implementation Packages, which are containers of records that dictate the work that you want to perform and the Asset Strategies that contain the original work requests (i.e., Action Revision records). Asset Strategies are created in ASM.
An SAP System. The connectivity to SAP is required only if you want to create items such as Maintenance Plans, Maintenance Items, and Task Lists from ASI. To take full advantage of the ASI module, we recommend that you integrate ASI with SAP.

Deploying Asset Strategy Implementation

After you have installed and configured the basic GE Digital APM system architecture, you will need to perform some configuration steps specifically for Asset Strategy Implementation.

Supported Features in APM Now

This GE Digital APM module is not available in the APM Now environment.

ASI Data Model

Like all GE Digital APM modules, Asset Strategy Implementation consists of entity families, relationship families, and business rules. The ASI Overview page in ASI provides you with a custom view of ASI records that exist in the database. This page also helps facilitate the creation of new records.

When attempting to understand and make use of ASI functionality, it can be helpful to visualize the ASI data model. Because you should already be familiar with the concept of records and viewing records in Record Manager, as you attempt to get your bearings in ASI, it may be useful to remember that ASI is simply a customized view of individual records that work together to make up an Implementation Package.

All ASI implementation packages begin with an Implementation Package record. Each Implementation Package record will be linked to:

Zero or one SAP System records through the Has SAP System relationship.
At least one Asset Strategy record through the Implements Strategy relationship.
Zero or more Asset Strategy records through the Implements Secondary Strategy relationship.
One or more Action records through the Implements Actions relationship.
One or more other records through the Has Work Management Item relationship. These records store the details of work items that you want to implement, either in GE Digital APM or in an external SAP management system.

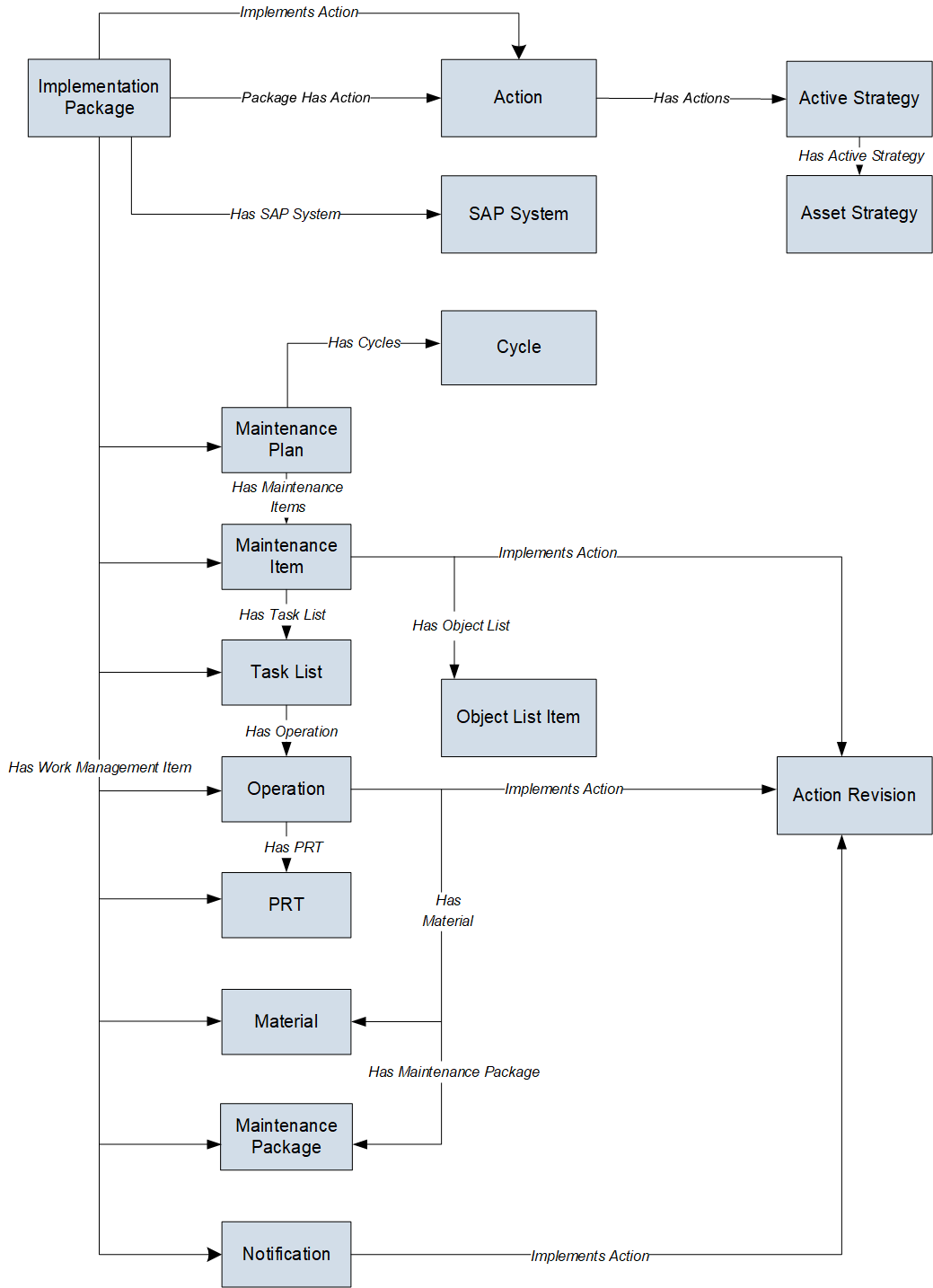

The following diagram illustrates how families are related to one another within the ASI data model. The boxes represent entity families, and the arrows represent relationship families. You can determine the predecessor and successor in each relationship by the direction of the arrow head. The box to which the arrow is pointing is the successor in the relationship.

ASI URLs

URL Paths for ASI Features

In Asset Strategy Implementation, there is one route for accessing the overview and one URL base path for building URLs elsewhere in the module: asi/overview. The following table describes the various paths that build on the route, and the elements that you can specify for each.

Feature	URL Path	Description
ASI Overview Page	asi/overview	Displays the ASI Module Overview page. This path does not accept parameters.
Asset Strategy Implementation Administration Page	/strategy/asi/admin	Displays the Asset Strategy Implementation Administration page. This path does not accept parameters.
New Implementation Package	/asi/package/0	Displays the workspace for a new Implementation Package.
Specific Implementation Package	/asi/package/<EntityKey>	Displays the Implementation Package connected to the specific entity key.
New Maintenance Plan for a Specific Implementation Package	/asi/package/<EntityKey>/wmi/0	Displays the workspace for a new Maintenance Plan within an existing Implementation Package.
New Child Record for a Specific WMI in a Package	/asi/package/<EntityKey>/wmi/{wmikey}/new/{type}	Displays the workspace for a new child record under the specified WMI.

Example URLs

Example URL	Destination
asi/overview	Displays the ASI Module Overview page.
/strategy/asi/admin	Displays the Asset Strategy Implementation Administration page.
/asi/package/0	Displays the workspace for a new Implementation Package.
/asi/package/0228198107	Displays the Implementation Package connected to the specified entity key.
asi/package/64252712975/wmi/64259880695/new/MI_MAINTITM	Displays the child task connected to the specified WMI.

About the ASI for SAP ABAP Add-on

GE Digital APM ASI for SAP extends the basic functionality of Asset Strategy Implementation (ASI) by offering integration with SAP. Deploying ASI for SAP requires two steps:

Activating the ASI for SAP license in the GE Digital APM database. This documentation assumes that you activated the license when you completed the steps for creating or upgrading your GE Digital APM database.
Deploying the ASI for SAP ABAP add-on, which is a package that must be deployed on your SAP system to allow for integration between your GE Digital APM system and your SAP system.

The files necessary to deploy ASI for SAP are provided on the ASI for SAP ABAP Add-on DVD, which is not included in the standard GE Digital APM distribution but can be obtained from GE Digital APM upon request.

The ASI for SAP ABAP Add-on DVD contains installation files, upgrade files, and exchange files. In this documentation, we provide details on using the installation and upgrade files. You will need to use the exchange files if you upgrade an SAP system on which the ASI for SAP ABAP Add-on package has been installed. In that case, the SAP upgrade procedure will prompt you to access the exchange files for ASI for SAP. You can find the files in the Exchange Upgrade Files folder on the ASI for SAP ABAP Add-on DVD. Within the Exchange Upgrade Files folder, you will see subfolders representing the version of SAP to which you are upgrading. When prompted for an ASI for SAP exchange file, use the files in these subfolders. This documentation does not provide specific instructions for using these files during an SAP upgrade.

For information about what is included in the ASI ABAP Add-on, see the file SAP_ASI_<version>_ObjectList.pdf, which is located on the ASI for SAP ABAP Add-on installation DVD in the root folder.

System Code Tables Used by ASI

The following table provides a list of the System Code Tables that are used by ASI.

Table ID	Table Description	Function
MI_WKMGMTDF_GROUP	Work Management Item Definition Groups	Used to populate the: Group Name list on the Work Management Item Definition datasheet. Packaging Tasks menu on the Implementation Packaging page in the GE Digital APM application.
MI_OPERTION_CALC	Operation Calc	Used to populate the Calc list on the Operation datasheet.
MI_MAINTPLN_INDICATOR	Maintenance Plan Scheduling Indicator	Used to populate the Scheduling Indicator list on the Maintenance Plan datasheet.

Table ID

Table Description

Function

MI_WKMGMTDF_GROUP

Work Management Item Definition Groups

Used to populate the:

Group Name list on the Work Management Item Definition datasheet.
Packaging Tasks menu on the Implementation Packaging page in the GE Digital APM application.

MI_OPERTION_CALC

Operation Calc

Used to populate the Calc list on the Operation datasheet.

MI_MAINTPLN_INDICATOR

Maintenance Plan Scheduling Indicator

Used to populate the Scheduling Indicator list on the Maintenance Plan datasheet.

Values Mapped from GE Digital APM to SAP

Values Mapped to SAP Maintenance Plans

The following table explains the Maintenance Plan fields that are used to populate SAP Maintenance Plan fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Authorization Group	BEGRU	Technical Object Authorization Group
Call Confirm	CALL_CONFIRM	Only Create New Call Object After Completing Predecessor
Call Horizon	HORIZ	Call Horizon for Maintenance Plan Calls
Category	MPTYP	Maintenance Plan Category
Counter	POINT	Measuring Point
Cycle Modification Factor	SFAKT	IBIP: Cycle Modification Factor
Description	WPTXT	Maintenance Plan Text
Factory Calendar	FABKL	Factory Calendar Key
ID	WARPL	Maintenance Plan
Interval	ZYKL1	Maintenance Cycle
Interval Description	PAK_TEXT	Text for Maintenance Package/Cycle (Time/Performance)
Interval Unit	ZEIEH	Unit for the Performance of Maintenance Tasks
Maintenance Strategy	WSTRA	Maintenance Strategy
Offset	OFFS1	Maintenance Package Offset
Scheduling Indicator	STICH	Scheduling Indicator
Scheduling Period	ABRHO	Scheduling Period
Scheduling Unit	HUNIT	Unit in Scheduling Interval
Shift Factor for Early Completion	VSNEG	Shift Factor for Early Completion
Shift Factor for Late Completion	VSPOS	Shift Factor for Late Completion
Sort Field	PLAN_SORT	Sort Field for Maintenance Plans
Start Counter	SZAEH	Start Counter Reading
Start Date	STADT	Start Date
Tolerance for Early Completion	TONEG	Tolerance for Early Completion (%)
Tolerance for Late Completion	TOPOS	Tolerance for Late Completion (%)

Values Mapped to SAP Maintenance Items

The following table explains the Maintenance Item fields that are used to populate SAP Maintenance Item fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Activity Type	ILART	Maintenance Activity Type
Assembly	BAUTL	Assembly
Business Area	GSBER	Business Area
Category	MPTYP	Maintenance Plan Category
Equipment	EQUNR	Equipment Number
Functional Location	TPLNR	Functional Location
Group	PLNNR	Key for Task List Group
Group Counter	PLNAL	Group Counter
Item Description	PSTXT	Item Short Text
Maintenance Item	WAPOS	Maintenance Item
Maintenance Planner Group	WPGRP	Planner Group for Customer Service and Plant Maintenance
Maintenance Strategy	WSTRA	Maintenance Strategy
Notification Type	QMART	Notification Type
Order Type	AUART	Order Type
Planning Plant	IWERK	Maintenance Planning Plant
Priority	PRIOK	Priority
System Condition	ANLZU	Overall Condition of Technical System
Work Center	GEWERK	Main Work Center for Maintenance Tasks
Work Center Plant	WERGW	Plant Associated with Main Work Center

Values Mapped to SAP Maintenance Items

The following table explains the Object List Item fields that are used to populate SAP Object List Item fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Equipment Number	EQUNR	Equipment Number
Functional Location ID	TPLNR	Functional Location
Functional Location Label	STRNO	Functional location Label
Sort Field	SORTF	Object List Sort Field

Values Mapped to SAP Task Lists

The following table explains the Task List fields that are used to populate SAP Task List fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Assembly	ISTRU	Assembly
Description	KTEXT	Work Center Description
Equipment	EQUNR	Equipment Number
Functional Location	TPLNR	Functional Location
Group	PLNNR	Key for Task List Group
Key Date	STTAG	Key Date
Maintenance Strategy	STRAT	Maintenance Strategy
Planner Group	VAGRP	Responsible Planner Group/Department
Planning Plant	WERKS	Maintenance Planning Plant
Plant	AWERK	Plant
Status	STATU	Status
System Condition	ANLZU	Overall Condition of Technical System
Usage	VERWE	Use by User or System
Work Center	ARBPL	Work Center

Values Mapped to SAP Operations

The following table explains the Operation fields that are used to populate SAP Operation fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Activity Type	LARNT	Activity Type
Calc	INDET	Key for Calculation
Control Key	STEUS	Control Key
Cost Element	SAKTO	Cost Element
Currency	WAERS	Currency Key
Description	LTXA1	Operation Short Text
Execution Factor	AUFKT	Execution Factor
Material Group	MATKL	Material Group
Normal Duration	DAUNO	IBIP: Normal Operation Duration
Normal Duration Unit	DAUNE	Normal Duration/Unit
Number of Resources	ANZZL	IBIP: Char. - No. of Required Capacity
Operation	VORNR	Operation/Activity Number
Order Quantity	BMEIH	Operation Order Quantity Unit
Order Quantity Unit	BMVRG	IBIP: Purchase Order Quantity Operation
Plant	WERKS	Plant
Purchasing Group	EKGRP	Purchasing Group for External Processing
Purchasing Organization	EKORG	Purchasing Organization
StdTxt	KTSCH	Standard Text Key
Sub Operation	UVORN	Suboperation
System Condition	ANLZU	System Condition
User Field 0	USR00	User Field with 20 Characters
User Field 1	USR01	User Field with 20 Characters
User Field 2	USR02	User Field with 10 Characters
User Field 3	USR03	User Field with 10 Characters
User Field 4	USR04	IBIP: User Field for Quantity (Length 10,3)
User Field 4 Units	USE04	User field: Unit for Quantity Fields
User Field 5	USR05	IBIP: User Field for Quantity (Length 10,3)
User Field 5 Units	USE05	User field: Unit for Quantity Fields
User Field 6	USR06	IBIP: User Field for Values (Length 10,3)
User Field 6 Units	USE06	User field: Unit for Quantity Fields
User Field 7	USR07	IBIP: User Field for Values (Length 10,3)
User Field 7 Units	USE07	User field: Unit for Quantity Fields
User Field 8	USR08	User field for Date
User Field 9	USR09	User field for Date
User Field 10	USR10	User-defined Field: Indicator for Reports
User Field 11	USR11	User-defined Field: Indicator for Reports
User Field Key Word ID	SLWID	Key Word ID for User-defined Fields
Work	ARBEI	IBIP: Operation Labor
Work Center	ARBPL	Work Center
Work Unit	ARBEH	Unit for Work

Values Mapped to SAP Materials

The following table explains the Material fields that are used to populate SAP Material fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Material Number	IDNRK	Material Number
Quantity	MENGE	Quantity

Values Mapped to SAP PRTs

The following table explains the PRT fields that are used to populate SAP PRT fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
None. The value in the FHMAR field is always set to D.	FHMAR	Production Resources/Tools Category
Control Key	STEUF	Control Key for Management of Production Resources/Tools
Document	DOKNR	Document Number
Document Part	DOKTL	Document Part
Document Type	DOKAR	Document Type
Document Version	DOKVR	Document Version
Item Number	PSNFH	Item Number for Production Resource/Tool
Quantity	MGVGW	Standard Value for PRT Quantity
Quantity Unit	MGEINH	Quantity Unit of Production Resource/Tool

Values Mapped to SAP Maintenance Packages

The following table explains the Maintenance Package fields that are used to populate SAP Maintenance Package fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Cycle	KTEXTZYK<#> Note: <#> is a number between one (1) and 32 that is determined by the sequence of the Operations on the associated Task List, regardless of the Operation number.	Short Text for the Maintenance Cycle (Time/Performance)

GE Digital APM Field Caption

SAP Field ID

SAP Field Caption

Cycle

KTEXTZYK<#>

Note:

<#> is a number between one (1) and 32 that is determined by the sequence of the Operations on the associated Task List, regardless of the Operation number.

Short Text for the Maintenance Cycle (Time/Performance)

Values Mapped to SAP Notifications

The following table explains the Notification fields that are used to populate SAP Notification fields when you implement an Implementation Package.

GE Digital APM Field Caption	SAP Field ID	SAP Field Caption
Equipment	EQUIPMENT	Equipment Number
Functional Location	FUNCT_LOC	Functional Location
Notification Type	NOTIF_TYPE	Notification Type
Priority	PRIORITY	Priority
Required End Date	DESENDDATE -AND- DESENDDATE	Required End Date -AND- Required End Time
Required Start Date	DESSTDATE -AND- DESSTTIME	Required Start Date -AND- Required Start Time
Short Text	SHORT_TEXT	Short Text
None. The value in the NOTIF_DATE field is populated automatically with the date and time that the Notification was created.	NOTIF_DATE	Date of Notification
None. The value in the NOTIFTIME field is populated automatically with the date and time that the Notification was created.	NOTIFTIME	Notification Time

About the Get SAP ID for <Equipment or Functional Location> Query

After providing a prompt for an Entity Key, the query Get SAP ID for Equipment returns the record with the provided Entity Key. In the baseline GE Digital APM database, the query returns records in the Equipment family. This query is not meant to be run on its own. Instead, GE Digital APM runs this query automatically to determine whether to populate the Equipment or Functional Location field when you build Notification or Maintenance Item records from Actions.

When GE Digital APM runs the query, GE Digital APM provides the prompt with the Entity Key of the predecessor record that is linked to the underlying Asset Strategy record:

If the Entity Key identifies a record that belongs to the query's source family, the Equipment field in the Notification and Maintenance Item records will be populated automatically with the ID of that record. GE Digital APM uses the value that is returned by the query as the ID. In the baseline query, the query returns the Equipment ID.
If the Entity Key does not identify a record that belongs to the query's source family, GE Digital APM runs the query Get SAP ID for Functional Location. If the Entity Key identifies a record that belongs to that query source's family (which is the Functional Location family if you have not modified the query), the Functional Location field in the Notification and Maintenance Item records will be populated automatically with the ID of that record.

For example, suppose an Asset Strategy record is linked to the Equipment record HX-112. If you build a Notification record from an Action that belongs to this Asset Strategy, GE Digital APM will:

Identify the Entity Key of the Equipment record HX-112.
Supply this Entity Key to the prompt in the Get SAP ID for Equipment query.
Identify the Equipment ID returned by the query: HX-112.
Populate the Equipment field in the Notification record with HX-112.

You will not need to modify the baseline query if your Asset Strategy records are linked to records in the baseline Equipment or Functional Location family.
