Manage APM System Monitoring

Filter Information on the APM System Monitoring Page

Procedure

  1. Access the APM System Monitoring Page.
  2. On the upper-left corner of the page, select .

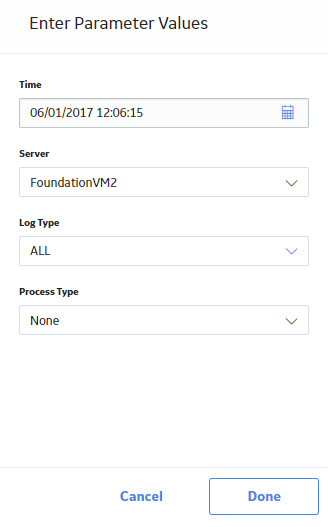

    The Enter Parameter Values window appears.

  3. As needed, modify the values in the following boxes:
    • Time: Select the date whose information you want to be displayed.
    • Server: Select the server whose information you want to be displayed, or select ALL to display information for all monitored servers.
    • Log Type: Select the process whose logs you want to be displayed, or select ALL to display logs for all monitored processes.
    • Process Type: Select the process whose information you want to be displayed, or select ALL to display information for all monitored processes.
  4. Select Done.
    The information on the APM System Monitoring page is filtered based on the specified parameters.

Transmit Logs or Data to GE Digital APM

Procedure

  1. Access the APM System Monitoring Page.
  2. On the upper-right corner of the page, select .
    A drop-down menu appears.
  3. To transmit all of the log files collected by APM System Monitoring, select Transmit Logs to Meridium.

    -or-

    To transmit the data compiled by APM System Monitoring, select Transmit Data to Meridium.

    The current logs files or the data that has changed since the last update are transmitted to GE Digital APM.
