Admin

Access the RA Administrator Page

Procedure

In the module navigation menu, select Admin > Application Settings > Reliability Analytics.

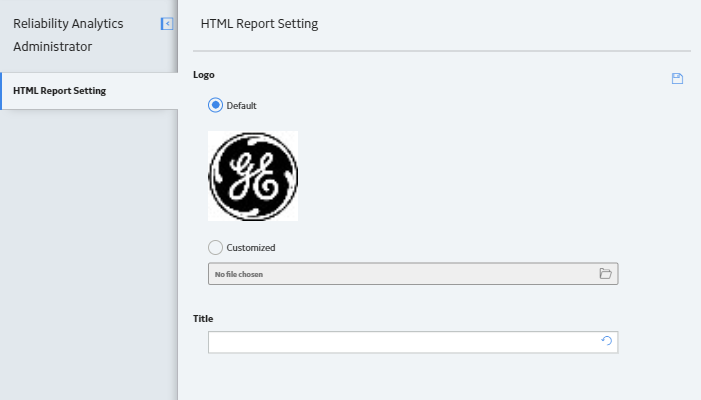

The RA Administrator page appears, displaying the HTML Report Setting workspace by default.


Configure a Reliability Report

Procedure

  1. Access the RA Administrator page.
  2. In the Logo section, select Customized.
  3. In the Customized box, select , and then select the image that you want to appear on the report.
  4. In the Title box, enter a title.
  5. Select .
    The report settings are saved.

Access a Recommendation

Procedure

  1. Access the analysis for which you want to create a recommendation.
  2. In the right corner of the workspace, select the .
    The Recommendations pane appears, displaying a list of recommendations associated with the selected analysis.


  3. Select the row containing the recommendation that you want to view.
    The Reliability Recommendation datasheet appears, displaying the General Information and Alert tabs.


Create a Recommendation Alert for an Analysis

Procedure

  1. Access the analysis from which you want to generate an alert.

    The Reliability Recommendation datasheet appears.

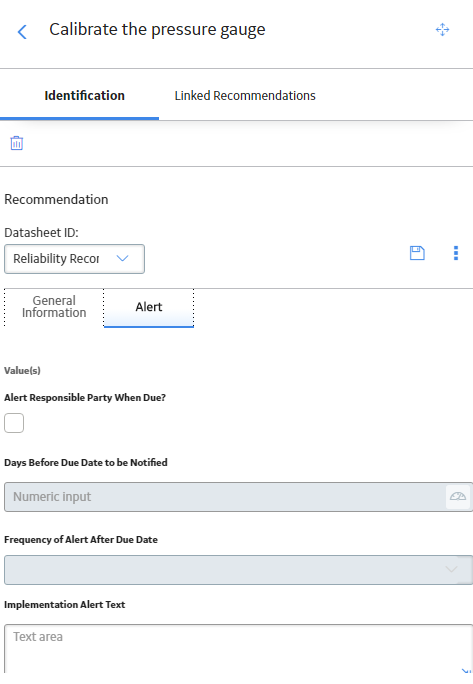

  2. Select the Alert tab.
    The Alert datasheet appears.


  3. As needed, enter values in the available fields, and then select .
    The Alert is saved.
