Define a Process Reliability Line

Steps

Access the Production Analysis for which you want to define a Reliability Line.

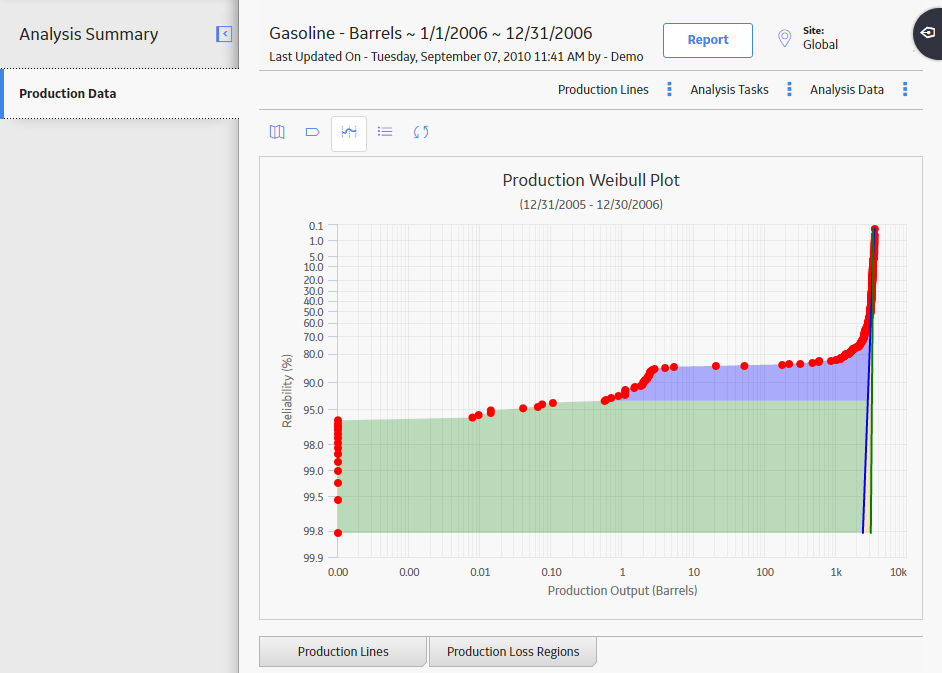

In the left pane, select the Production Data tab.

The Production Data workspace appears.
In the upper-right corner of the workspace, select Production Lines.
In the list, select Reliability Line.
In the Production Data plot, select the point at which datapoints begin to trend away from the Demonstrated Line.

A dotted line appears and is labeled Process Reliability: <Percentage> , where <Percentage> indicates the reliability of the process.
