Assign a New Resource to an Action

This topic describes how to create and assign a new Resource to an Action. You can also assign an existing Resource to an Action.

Steps

1. Access the Action to which you want to assign a resource.
2. In the grid, locate the row containing the Action to which you want to assign a Resource.

3. Select the Resource Usage link.

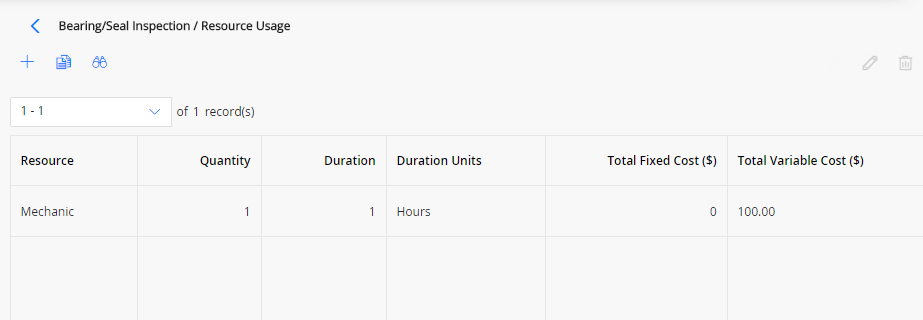

   The <Action> - Resource Usage grid appears, displaying the list of resources that are assigned to the selected Action. <Action> is the name of the Action that you selected.



4. Select .

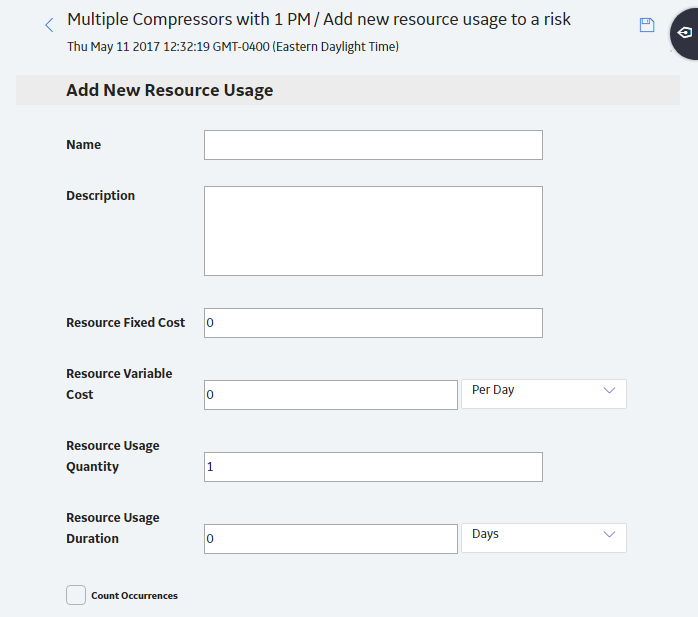

   The datasheet for new System Resource Usage appears.



5. As needed, enter the value in the available fields, and then select .

   A new Resource is created and assigned to the Action.
