Select Spares Analyses.

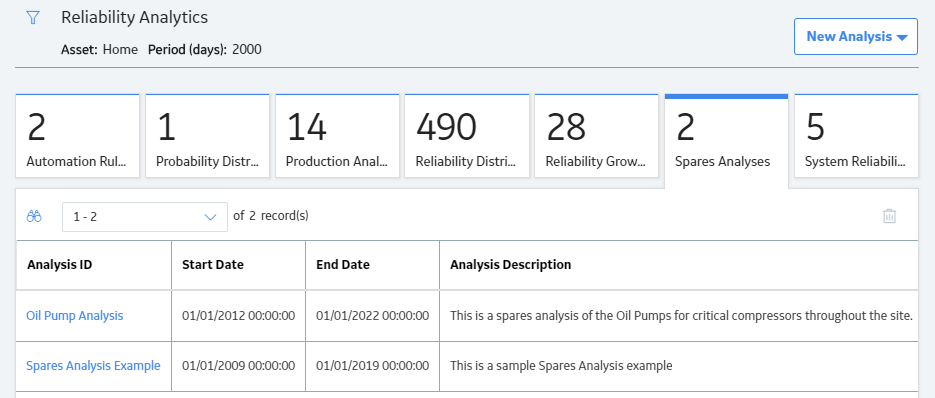

A list of Spares Analyses available in the database appears.
Select the Spares Analysis whose details you want to view.

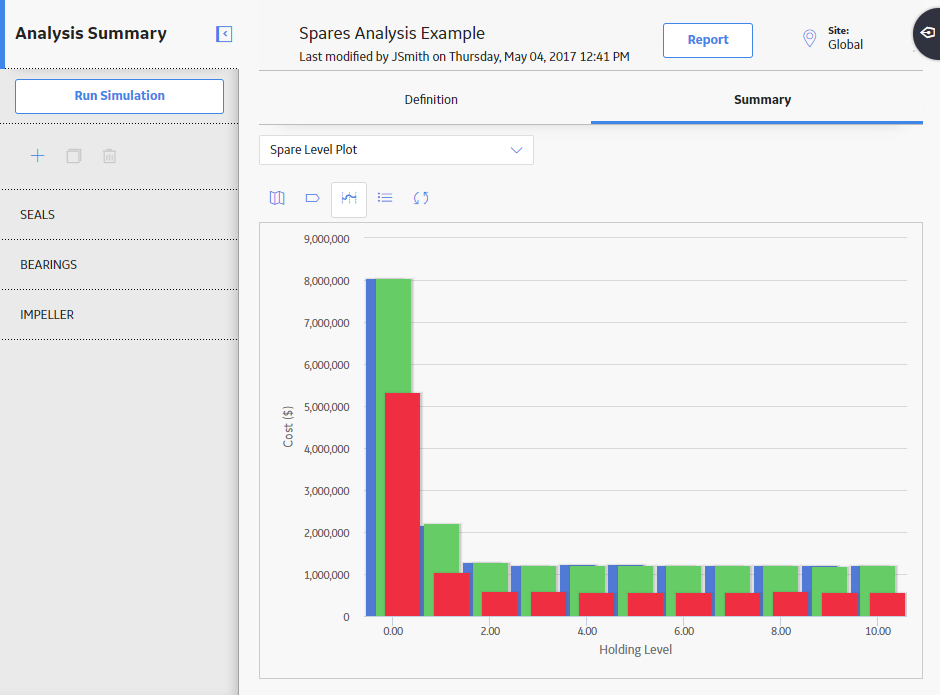

The Analysis Summary workspace for the selected analysis appears.
The workspace contains the following tabs:
-
Definition: Displays the details of the selected Spares Analysis.
Note: As needed, in the Definition section, you can select
to modify the values in the available fields, and then select to save your changes. - Summary: The Summary tab is selected by default and displays the Spare Level plot for all the Spares within the selected Spares Analysis. You can also view the following plots for all the Spares within the selected Spares Analysis:
- Downtime plot
- Spare Usage plot
- Sensitivity plot
- Optimal Holding plot
The left pane contains a list of Spares available for the selected Spares Analysis.
