OSI PI Collector

OSI PI Collector Overview

The Historian OSI PI Collector gathers data samples from an OSI PI data server and stores the corresponding data entries in the Historian Server or Predix Cloud. Data can be gathered directly from the OSI PI Data Archive v3.2 or greater via the OSI PI AOSI PI v 1.3.4 or greater. This collector supports a distributed model, where the PI Data Server, the Collector, and Proficy Historian are installed on different machines.

The OSI PI Collector must be installed on the same computer as the OSI PI Data Archive. The OSI PI collector uses unsolicited collection, whereby changes to the OSI PI archives are detected, and are forwarded to the Historian server. The collector is intended to duplicate raw samples from the OSI PI Data Archive in an Historian data archive. You can specifically request the collector to transfer values from the OSI PI snapshot cache (as seen in the previous version of OSI PI Collectors), however, it is recommended to transfer the values directly from the PI archives to the Historian archives.

One OSI PI collector can collect data from a single OSI PI data archiver. To collect from multiple OSI PI data archives to an Historian archive, you must configure multiple OSI PI collectors.

Features

The following table outlines the OSI PI Collector features:


Feature	Capability
Browse Source For Tags	Yes*
Browse Source For Tag Attributes	Yes
Polled Collection	No
Minimum Poll Interval	N/A
Unsolicited Collection	Yes
Time Stamp Resolution	milliseconds or seconds
Accept Device Time stamps	Yes
Floating Point Data	Yes
Integer Data	Yes
String Data	Yes
Enumeration Data	Yes
Binary Data	No
Array Data	No
Enumeration Sets	Yes**
Collector Status Outputs	Yes
Python Expression Tags	Yes

Note: - *Tag browsing performance with OSI PI has been confirmed as satisfactory up to 130,000 tags. Beyond that threshold, OSI PI may take a long time to return the large number of tags. In such a case, it is recommended that the tags be exported from PI to an Excel work sheet and then uploaded to Historian.

**- The OSI PI Collector can also be used to automatically handle updates of digital states in Historian as enumerated sets without restarting the PI Collector. Consult the topic on Configuring Auto-synchronization of Digital States for details.

**- If digital states are renamed or deleted in the PI Collector, the corresponding enumerated sets in Historian are not automatically renamed or deleted without a restart of the PI collector. Unused enumerated sets cannot be automatically deleted, because the PI server does not notify the PI collector about rename or delete activity. However, the situation can be reconciled with certain manual steps. Consult the topics Renaming Digital States and Deleting Digital States for details.

**- In some instances, OSI PI Digital tags which are created as enumerated tags in Historian can contain values from the PI System digital set, rather than their assigned digital set. In these instances the System digital values will be reflected as 0 with BAD quality in Historian.

Before You Begin

Software Requirements

If you are using Historian 7.0 SP4, the following configuration is required:

OSI PI Data Archive (version 3.2\3.3\3.4)
OSI PI v1.3.4 or greater
OSI PI SDK (About PI-SDK) v1.4.2 or greater
Note: The OSI PI SDK is required for running OSI PI Collector, however, the OSI PI SDK does not ship with Historian. If the OSI PI SDK is not installed, the OSI PI Collector will not start. If you install the OSI PI Collector on a machine that does not contain your PI Server, be sure to install the OSI PI SDK on the machine with the OSI PI Collector.
Historian 3.0 or greater

If you are using 7.0 SP5, the following configuration is required:

OSI PI AF Server version 2015 R2 SP1 or greater
OSI PI Data Archiver v 3.4.380 or greater
OSI PI AF SDK 2.7.0 or greater
Note: The OSI PI AF SDK is required for running OSI PI Collector or PI Distributor, however, the OSI PI AF SDK does not ship with Historian. If the OSI PI AF SDK is not installed, the OSI PI Collector or PI Distributor will not start. If you install the OSI PI Collector or PI Distributor on a machine that does not contain your PI Server, be sure to install the OSI PI AF SDK on the machine with the OSI PI Collector and the PI Distributor. PI SDK is no longer supported with the 7.0 SP5 version of the PI Collector. If you are using the OSI PI Collector or PI Distributor from the 7.0 SP5 (or greater) installer, the PI AF SDK or greater is now required.
The PI AF Software Development Kit (PI AF SDK or AFSDK) is installed with the PI AF Client and provides programmatic access to PI Server data (PI Data Archive and AF).
About-PI SDK utility

Hardware Requirements

There are no additional hardware requirements for the OSI PI Collector or PI Distributor.

Configuring the OSI PI Data Archive

By default, no specific configuration is required for the OSI PI Data Archive to allow the OSI PI Collector to collect data and archive it to the Historian Server or Predix Cloud. However, a user with read permissions must be configured in the OSI PI data server for the OSI PI Collector.

Note: The OSI PI Collector reads data directly from the OSI PI archives and attempts to maintain a near real-time operation. It has been tested up to 25,000 events per second. However, performance is dependent on hardware and network capabilities, so if the collector begins to fall significantly behind real-time, it may be more suitable to partition the data retrieval into two or more collectors.

Upgrading and Using the PI Snapshot Collection

In some scenarios you may wish to run the collector in the same way as in the previous versions (Pre-6.0) of PI Collector. For example, you may upgrade from an older version of the collector and still want to retain the existing, original behavior.

If this is not the case then you do not need to configure anything and may skip this section.

Use the following steps where you want to retain the existing original behavior.

To configure the newly added OSI PI Collector to retrieve data from the OSI PI snapshot cache:

Run the Registry Editor (regedit.exe).
Navigate to HKEY_LOCAL_MACHINE\SOFTWARE\Intellution, Inc.\iHistorian\Services\PICollector.
In the case of a 64-bit system this may be found at HKEY_LOCAL_ MACHINE\SOFTWARE\Wow6432Node\Intellution, Inc.\iHistorian\Services\PICollector
If you have multiple collectors, each would have to be configured to allow for snapshot operation, and the key would be the name of the other collector.
Locate the registry key name General5.
Change it from Archive to Snapshot.
Restart the Historian PI Collector service from the Windows services control panel.
The latest log file will indicate that the collector is using the snapshot database for collection. Refer to OSI PI Collector Troubleshooting, for information about tracing operational issues with the OSI PI Collector log files.

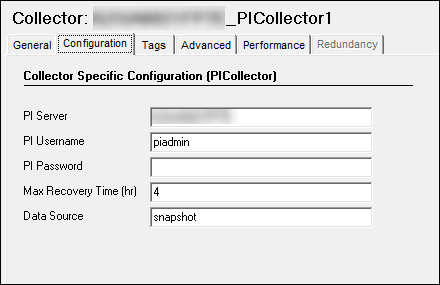

To configure existing OSI PI Collector to retrieve data from the OSI PI snapshot cache

Access Historian Administrator.
Select the Collectors page.
Select the OSI PI Collector.
Select Configuration.
In the Data Source field, enter the data source as snapshot.

OSI PI Collector Configuration

This section describes details about how to configure an OSI PI Collector.

Configuring the OSI PI Collector

Procedure

Start Historian Administrator.
Select the Collectors page.
Select the OSI PI Collector instance you wish to configure.
If the collector is not listed in the available collectors list, you must start the collectors manually from the Windows Service Control Panel to register it.
1. Open the Windows services control panel on the machine that contains the OSI PI collector
2. Find the service name Historian OSI PI Collector.
3. Select it and select Start on the top of the Services panel.
  As it is not configured it may start and then promptly stop- this is not an issue. The current step is solely to register it in Historian.
4. Continue from Step 1 if is not listed in Historian Administrator once restarted, refer to OSI PI Collector Troubleshooting.
Configure the OSI PI Collector's General options.
1. (Optional) Enter a description for your OSI PI Collector.
2. (Optional) In the Computer Name field, enter the host name of the computer your collector is running on.
3. (Optional) If you want to change the default settings for memory usage and free disk space, change the values in the Memory Buffer Size and Minimum Free Space fields.
Configure the OSI PI Collector-specific options.
1. Select Configuration.
2. In the PI Server field, enter the OSI PI server name. For example, localhost.
3. In the PI User name field, enter the OSI PI user name. For example, PiAdmin.
4. If required, enter the OSI PI password into the PI Password field.
  This field can be left blank if no password is assigned for the OSI PI user.
  Note: If you change the PI Server name, user name or password fields, you must restart the collector service before the new configuration will take effect.
  Note: If the username and password are provided with the PI Collector, it uses explicit login to connect to the PI Server. If the username and password are not provided, then we use the implicit login functionality of PI SDK. In this scenario, either it would look for PI Trust or PI Mapping to connect to the PI Server.
5. In the Max Recovery Time (hr) field, enter a new Maximum Recovery Time. By default, the maximum recovery time is 4 hours.
Configure the default collection options.
1. Select Tags.
2. Enter a prefix to add to OSI PI Tags in Historian, for example: PI_.
3. Enter a value for the Collection Interval.
  The default collection interval is 1 second. Note that polled collection is not supported.
Configure the collector's advanced settings.
1. To delay collection when the collector starts up, enter a value into the Delay Collection at Startup (sec) field.

OSI PI Collector-specific Field Descriptions

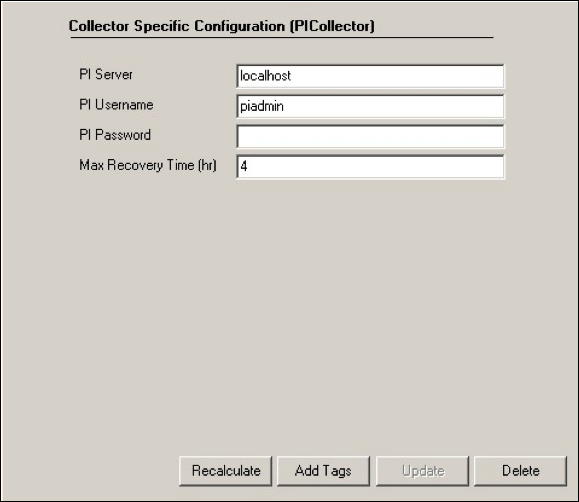

The following figure shows the OSI PI Collector configured to collect data from an OSI PI archive on localhost, logging in as the piadmin user. It is also configured for a maximum recovery time of 4 hours.

The following table describes the OSI PI Collector-specific configuration fields.


This field...	Indicates...
PI Server	The name of the computer that OSI PI is running on. This should match the server entry in the OSIsoft About PI-SDK utility.
PI Username	The user name required to connect to the OSI PI Data Archive. PI trusts are not supported and an explicit PI user must be set.
PI Password	The password required to authenticate with the OSI PI Data Archive. If no password is configured for the OSI PI user, this field can be left blank.
MaxRecovery Time (hr)	The Maximum Recovery time in hours.

Tag Attributes Available in Browse

You can specify tags for collection in Historian Administrator for the OSI PI Collector or OSI PI Distributor by browsing or by adding tags manually. The following table outlines the tag attributes available when browsing:


Historian Tag Browse Attribute	OSI PI Tag Attribute
`Browse Source Address`	`Tag`
`Description Property`	`Descriptor`
`Engineering Unit Description`	`Engunits`
`Hi Engineering Units`	`Zero+span`
`Lo Engineering Units`	`Zero`

When entering tags manually, it is important to match the Historian tag data type with the data type of the OSI PI tag. See OSI PI Collector and Distributor Supported Data Types.

Regardless of how you add tags to Historian, you should match the timestamp resolution. If your OSI PI tag is using timestamps with milliseconds, then configure your Historian tag to store timestamps with millisecond resolution as well.

The OSI PI distributor reads data from the Historian tag displayed in the Tag Source Address field, and sends it to the OSI PI tag name displayed in the Spare 1 field. To control the source and destination tags, change the Tag Source Address and Spare 1 fields.

Configuring Recovery Mode

About this task

Recovery logic is activated when the OSI PI Collector and OSI PI Data Archive reestablish a connection after a connection loss, or when the OSI PI Collector is started. The OSI PI Collector will attempt to recover all data samples between the current time and the last known write time, up to a maximum number of hours configured for the collector. Continuous collection resumes only after the previous data has been recovered.

The default recovery time available is 4 hours. You can disable recovery mode by setting the Maximum Recovery Time to 0 hours.

To configure a maximum recovery time:

Procedure

Start Historian Administrator.
Access the Collectors page.
Select OSI PI Collector.
Select Configuration.
In the Maximum Recovery Time (hr) field, enter a Maximum Recovery Time, in hours. If this field is left blank, the Maximum Recovery Time will be set to 4 hours.

OSI PI Collector and Distributor Supported Data Types

The following table maps OSI PI data types to their Historian data type equivalents:


OSI PI Tag Types	Recommended Historian Data Type
`INT32`	`Single Integer, Double Integer`
`FLOAT16, FLOAT32`	`Float`
`FLOAT64`	`Double Float`
`PISTRING`	`Variable String`
`DIGITAL`	`Single Integer` The accompanying digital states are transferred from OSI PI into Historian upon initialization of the collector.

Data Quality Mapping

Data quality mapping from Historian to OSI PI Data Archive is restricted to good/bad. OSI PI's subtypes are not currently mapped by Historian.

OSI PI Collector - Notes

Time Stamps Not Modified by Historian: The Historian OSI PI collector does not modify the time stamps placed on data samples by the OSI PI Data Archive. As a result, if your system clocks are not synchronized on both your OSI PI Data Archive server and Historian server, it is possible that Historian may receive data samples in the future or in the past.
PITimestamp Data Type not Supported: The PITimestamp data type is not supported by the OSI PI Collector. If you attempt to collect a tag with the PITimestamp data type, an error will be logged and the value will not be collected.
PI Digital States/Enumerations: Upon manual startup of the OSI PI collector (that is, a restart via the services control panel), the PI Digital States are imported into Historian. When enumeration tags are subsequently configured (digital tags in OSI PI), the matching enumeration is set as well and data will then be matched against the enumeration.
For a PI digital tag, we create a Historian enumerated tag and for a PI digital set. If the PI tag contains values from its enumerated set, then it values are written correctly in the Historian tag. But, in some special cases, the PI tag may contain values from a special set (System set). Historian does not support these values as we cannot assign two enumerated sets to one tag. In these cases, the values are written as 0- Bad quality.
Note: To update the enumerations, see Configuring Auto-synchronization of Digital States.
Connecting to an OSI PI Collective: The Historian PI Collector has the ability to connect to an OSI PI Collective (PI redundancy). This allows data to be moved to Historian to prevent data loss.

Starting and Stopping the OSI PI Collector

About this task

The OSI PI Collector runs as a Windows service and can be controlled through the Services control panel. You must have Administrator rights to access the Services control panel.

To Modify the OSI PI Collector Service:

Procedure

Select Start > Settings > Control Panel.
Double-click the Administrative Tools control panel to open it.
Double-click the Services control panel to open it.
Double-click the Historian PI Collector service.
To configure the Historian PI Collector service to start when Windows starts, set the Startup Type to Automatic.
To configure the Historian PI Collector service to start manually, set the Startup Type to Manual.
To start the service, select the Start button. To stop the service, select the Stop button.
Other options are available in the Services control panel. For more information, refer to Windows documentation.

Configuring Auto-synchronization of Digital States

Auto-synchronization with the SynchInterval Registry Key

The Historian OSI PI Collector allows transferring digital sets from the PI Server to Historian as enumerated sets. The digital sets from the PI Server are transferred to Historian not only during collector startup but also with the frequency of the Synch Interval.

Auto-synchronization of digital states can be configured with the SynchInterval Registry Key. The frequency at which the OSI PI Collector fetches the digital set from the PI server to Historian is determined by the value configured for this key, which is specified in minutes.

Values for the SynchInterval Registry Key

The default value of this key is 0, which indicates there is no synchronization of the digital set.

Set this registry key to a value greater than 0 if you want the OSI PI Collector to automatically fetch the digital set from the PI Server to Historian.

For example, the OSI PI Collector fetches the digital set from the PI server to Historian every 10 minutes if the value configured in this key is 10.

Note:

The collector must be restarted to apply the change in the value of this registry key.
This key is available for all Historian Collectors, but it is functional only in the OSI PI Collector.
Digital sets from the PI Server are transferred to Historian only during collector startup.

Renaming Digital States

If digital states are renamed in the PI Collector, the corresponding enumerated sets in Historian are not automatically renamed without a restart of the PI collector. Unused enumerated sets cannot be automatically deleted, because the PI Server does not notify the PI collector about rename activity.

When a digital state is renamed, a new enumerated set is created. There will therefore be two enumerated sets for the same digital set, one of which has the old name and one of which has the new name. The old enumerated set is redundant as it will not get any data if no tag is assigned to it. The tag association is also lost.

To address this:

Manually assign the new enumerated set to the applicable tag in Historian. It will then be synchronized to represent the data for the renamed digital state.
Go to the Historian VB admin and delete the unused enumerated set at the Historian side.

For example, consider the following situation, where PHsite1.PumpStatus in Historian is assigned to Tag1:


PI Server	Historian
`Site1.PumpStatus`	`PHSite1.PumpStatus`
`ON= 0`	`OFF= 0`
`OFF= 1`	`ON= 1`

If the digital state Site1.PumpStatus is renamed to SiteLodha.PumpStatus, a new enumerated set PHSiteLodha.PumpStatus is created at the Historian side.

The old enumerated set on the Historian side PHSite1.PumpStatus will not show any data, but it will exist redundantly inside Historian.

To address this:

Manually assign Tag1 (applicable tag in Historian) to PHSiteLodha.PumpStatus.
Go to the Historian VB admin and manually delete the old enumerated PHSite1.Pump Status.

Deleting Digital States

If digital states are deleted in the PI Collector, the corresponding enumerated sets in Historian are not automatically deleted without a restart of the PI collector. Unused enumerated sets cannot be automatically deleted, because the PI server does not notify the PI collector about delete activity.

To address this:

Go to Historian Administrator and delete the unused enumerated set at the Historian side.

For example, consider the following situation, where PHsite1.PumpStatus in Historian is assigned to Tag1:


PI Server	Historian
`Site1.PumpStatus`	`PHSite1.PumpStatus`
`ON= 0`	`OFF= 0`
`OFF= 1`	`ON= 1`

If the digital state Site1.PumpStatus is deleted, then the enumerated set PHSite1.PumpStatus remains at the Historian side.

To address this:

Go to Historian Administrator and delete the PHSite1.PumpStatus enumerated set, on the Historian side.

OSI PI Collector Troubleshooting

Tracing Operational Issues with OSI PI Collector Log Files

The OSI PI Collector generates logs during initialization, configuration, and general operation. These can be found in the general logging folder ([Historian Data folder]\LogFiles). Log files for the OSI PI Collector begin with PICollector and have a sequence number for each collector restart.

The first response to an issue should be an examination of the latest log file, as it will contain details on:

Configuration of the collector.
Initialization and connection to the OSI PI server.
Addition and removal of tags.
Reconnection and recovery of data.

OSI PI tags cannot be browsed, collector logs indicate SDK connection issues

The OSI PI server used must be an entry in the About-PI SDK utility. If there is an issue with collecting tag information and/or enumeration information, please confirm that the OSI PI server that is set in the collector configuration has an entry in the About PI-SDK, and that it is accessible from the About PI-SDK utility.

OSI PI Collector overrun problems - missing blocks of values, or is missing values

If the OSI PI Collector is unable to maintain updates from the OSI PI archiver and therefore is missing values, you may experience overrun problems. An overrun occurs when the data source is changing tag values faster than the collector collecting values, which causes it to consistently remain behind the archiver updates. If this is the case then the collector is running against the hardware and/or network limits and you may consider partitioning the tags into two or more sets, each with independent collectors.

Startup issue when data source is Snapshot

Historian OSI PI Collector fails to start as a service when you enter Snapshot as the Data Source in the Configuration section of the collector.

To start the collector:

Open command prompt as Administrator.
Navigate to the location where Historian installed.
Navigate to the path Program Files (x86)\GE Digital\Historian OSI Pi Collector\Server
Enter the following command:
ihPiCollector.exe noservice

The Collector starts from the CLI interface.
