Configuring the Domain Users for active directory setup

To configure the domain (single\multi) environment in Historian Administrator:

Before you begin

Historian Security Groups should be created on the machine where the Domain controller of the Historian Server is installed. In the example illustrated above, the India.Europe.US.com domain controllers must contains the following Historian groups
  • IH Security Admins
  • IH Collector Admins
  • IH Tag Admins
  • IH Archive Admins
  • IH UnAudited Writers
  • IH UnAudited Logins
  • IH Readers
  • IH Audited Writers
    Note: Historian Security Groups should be of type Domain-Local only.

Procedure

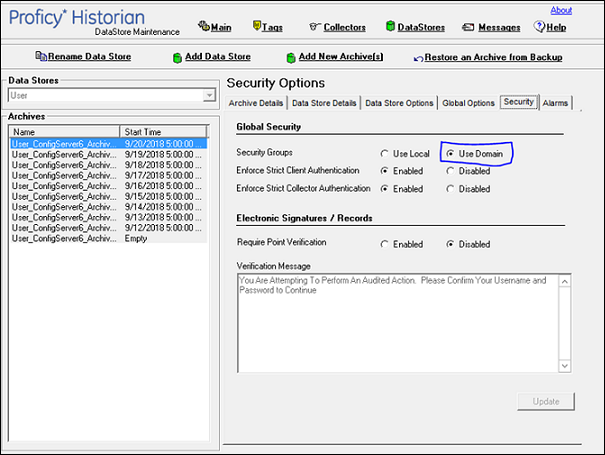

  1. On the Data Stores section, under Security > Global Security, select the Use domain option.
  2. Stop the Historian Services.
  3. Add the Registry Entries for ClientManager, ConfigManager and DataArchiver as shown below.
    Registry path: \HKEY_LOCAL_MACHINE\SOFTWARE\Intellution, Inc.\iHistorian\Services\
  4. Start the Historian Services. The new registry entries will now be read by the corresponding Historian service.
