Interpolated Sampling Mode

Determining interval timestamps for evenly divisible duration

1. Import this data into the Historian. There is only a tag, with no data.

   [Tags]
   Tagname,DataType,HiEngineeringUnits,LoEngineeringUnits
   c1,SingleFloat,100,0

2. Retrieve data for that tag over a 1-hour duration with a 10-minute interval. Use the following query:

   select timestamp from ihrawdata where timestamp >= 14:00 and timestamp <= 15:00 and tagname = c1 and
   numberofsamples = 6

   or this query

   select timestamp from ihrawdata where timestamp >= 14:00 and timestamp <= 15:00 and tagname = c1 and
   Intervalmilliseconds = 10M

3/29/2002 14:10:00
3/29/2002 14:20:003/29/2002 14:30:00
3/29/2002 14:40:00
3/29/2002 14:50:00
3/29/2002 15:00:00

When the 1-hour duration is not evenly divisible, interval timestamps will include milliseconds even if the data samples do not use a resolution of milliseconds.

Example: Determining interval timestamps for a non-divisible duration

select timestamp from ihrawdata where timestamp >= 14:00 and timestamp <= 15:00 and tagname = c1 and
numberofsamples = 7

3/29/2002 14:08:34.285
3/29/2002 14:17:08.571
3/29/2002 14:25:42.857
3/29/2002 14:34:17.142
3/29/2002 14:42:51.428
3/29/2002 14:51:25.714
3/29/2002 14:59:59.999

Determining interval interpolated value

This example shows how linear interpolation determines the most likely real world value at the interval timestamp.

Using the same data set as above, there are raw points at:

14:08:00.000,12.5,Good
14:14:00.000,7.0,Good

and you are trying to get an interpolated value at 14:10. The calculation used for linear interpolation would be:

interpolated value = previous raw sample + ((deltaY/deltaX) * offset)

Substituting the numbers for this example:

deltaY = 7.0 12.5 = -5.5

deltaX = 14-8 = 6

offset = 2 seconds (from 14:08 to 14:10)

Interpolated value = 12.5 + ((-5.5/6)*2) = 10.67

About Interpolated Data Type

When interpolating data, the data type of the value will be the same data type as that of the tag's raw data. Only floating point and double floating point values can be interpolated. Integers, strings, and blobs cannot be interpolated. When attempting to interpolate string and integer data, interpolation will simply repeat the collected value for each interval until the next collected value.

Retrieving interpolated values of an interval with GOOD data

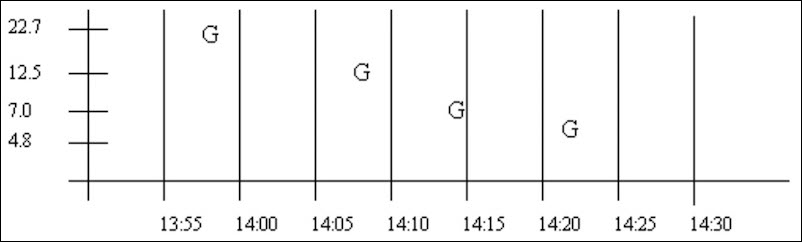

The raw samples for TAG1 can be plotted as follows. The “G” indicates a good data quality raw sample.

select timestamp, value, quality from ihrawdata where samplingmode=interpolated and timestamp >=
 '29-Mar-2002 13:50' and timestamp <= '29-Mar-2002 14:30' and tagname  = tag1 and numberofsamples = 8

There may be many raw points in an interval, but interpolation uses only the last one in the interval and the first one in the next interval. The sections below describe the interpolation behavior in the 3 possible cases.

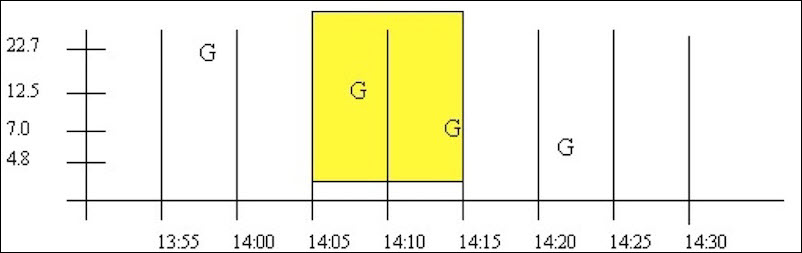

Case 1: Good Data Samples Before and After the Interval Timestamp

This is the typical case when compression is not used. There are 2 good data quality raw points. With interpolation, calculate the slope and offset of this line and interpolate the value at the interval timestamp. The 14:10 interval has a sample at 14:08 and at 14:14.

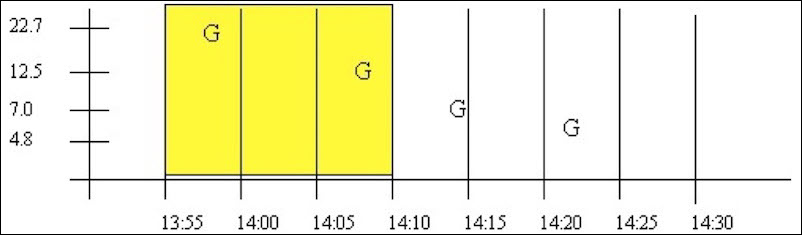

Case 1a: Good Data Samples between the Interval Timestamp and the Start and End Time

In a similar case, there may be intervals with no raw samples, such as when data compression is used. Here, there is at least 1 good raw sample between the start time and interval, and at least 1 good raw sample between the interval and end time. The good raw samples are interpolated across intervals to determine values at the 14:00 and 14:05 intervals:

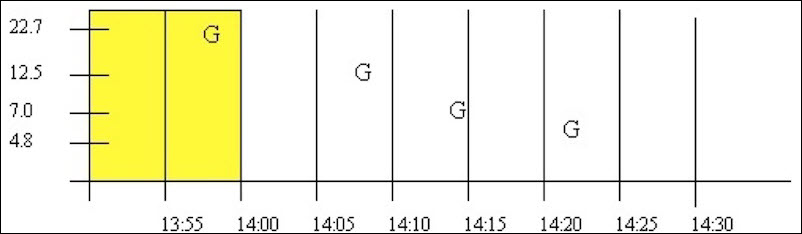

Case 2: No Good Data between Start Time and Interval Timestamp

If no or bad data occurs before the interval, then the interval is given a bad data quality. The 13:55 interval is an example of this. Note that bad data is treated identically to no data.

Case 3: No Good Data between Interval Timestamp and End Time

If no or bad data occurs after the interval then the interval is given a good data quality, but the value is simply stretched instead of interpolated. The 14:25 interval is an example of this. Note that bad data is treated identically to no data. Good data quality is attributed to the 14:30 interval

Interpolated and Lab retrieval resulting in percent good of 100

This example illustrates the effect of bad data quality samples on the percent good statistic for an interval. The start and end times vary so that bad samples are included or excluded, which affects the percent good statistic

The data for BADDQTAG can be plotted as follows. The G is used to indicate a good data quality raw sample and the B indicates a sample of bad data quality. A query of the whole data set is shown.

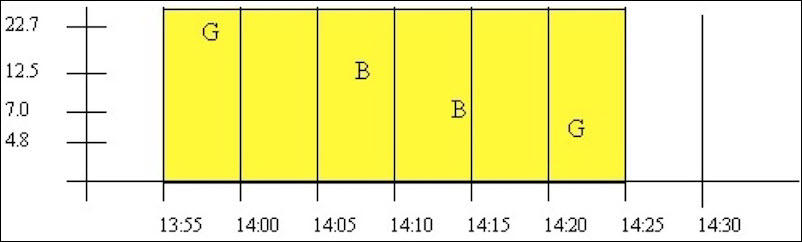

Using this query for a period starting with good data quality:

select timestamp, value, quality from ihrawdata where samplingmode=interpolated and timestamp >=
'29-Mar-2002 13:55' and timestamp <= '29-Mar-2002 14:25' and tagname  = baddqtag and numberofsamples = 1

This results in the following data quality:

The percent good is 100. Even though the interval contains bad data quality samples, the interval does not end with bad data quality. Percent good is determined this way because the purpose of interpolation and lab sampling is to determine the value and quality at the interval timestamp. On the other hand, Calculation modes operate on the full set of raw samples within an interval and therefore result in percent good values between 0 and 100.

This interval from 14:10 to 14:25 starts with a bad data quality sample but ends with a good sample, so the results are the same. That is, the query:

select timestamp, value, quality from ihrawdata where samplingmode=interpolated and timestamp >=
 '29-Mar-2002 14:10' and timestamp <= '29-Mar-2002 14:25' and tagname  = baddqtag and numberofsamples = 1

produces the same percent good result of 100.

Example: Interpolated and Lab retrieval resulting in percent good of 0

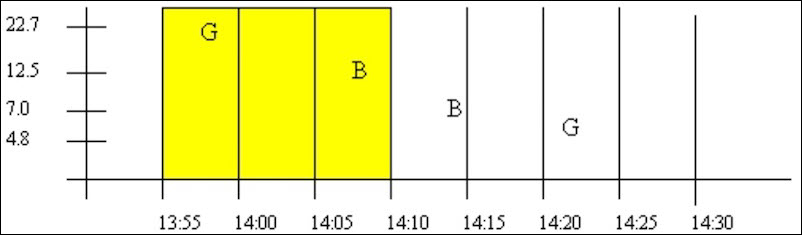

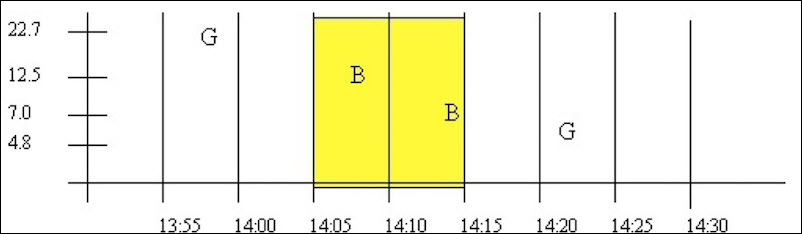

This example shows some data patterns that result in a percent good of 0. An interval ending with a bad data quality sample, always results in a percent good of 0 for the interval.

select timestamp, value, quality from ihrawdata where samplingmode=interpolated and timestamp >=
'29-Mar-2002 13:55' and timestamp <= '29-Mar-2002 14:10' and tagname  = baddqtag and numberofsamples = 1

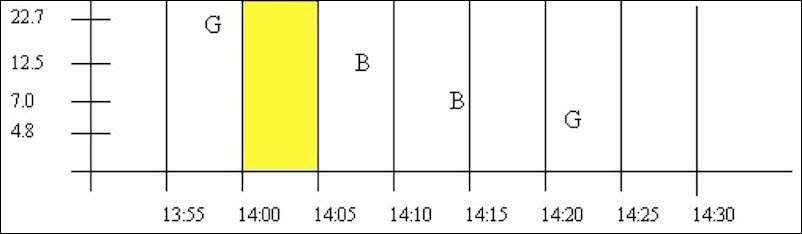

Example: Interpolated and Lab retrieval of an empty interval

The data quality of an empty interval depends on the previous and following raw samples. Intervals with a prior good data quality sample have a percent good of 100 and intervals preceded by a bad data quality sample (or no sample) have in a percent good of zero.

This query results in a percent good of 100:

select timestamp, value, quality from ihrawdata where samplingmode=interpolated and timestamp >=
 '29-Mar-2002 14:00' and timestamp <= '29-Mar-2002 14:05' and tagname  = baddqtag and numberofsamples = 1

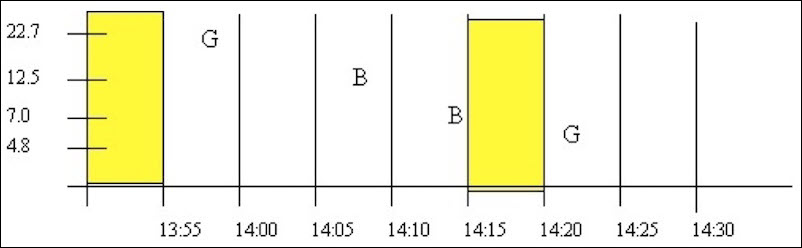

Both of these queries produce a percent good of 0. The first has no preceding sample and the second is preceded by bad data:

select timestamp, value, quality from ihrawdata where samplingmode=interpolated and timestamp >=
'29-Mar-2002 13:50' and timestamp <= '29-Mar-2002 13:55' and tagname  = baddqtag and numberofsamples = 1
select timestamp, value, quality from ihrawdata where samplingmode=interpolated and timestamp >=
'29-Mar-2002 14:15' and timestamp <= '29-Mar-2002 14:20' and tagname  = baddqtag and numberofsamples = 1

The lab retrieval at 14:15 has a value of 7 but quality of 0. Note that you should almost always ignore specific values when the percent good is 0.
