Configure the MQTT Collector

Procedure

  1. Access Historian Administrator.
  2. Select Collectors, and then select the MQTT collector instance that you want to configure.

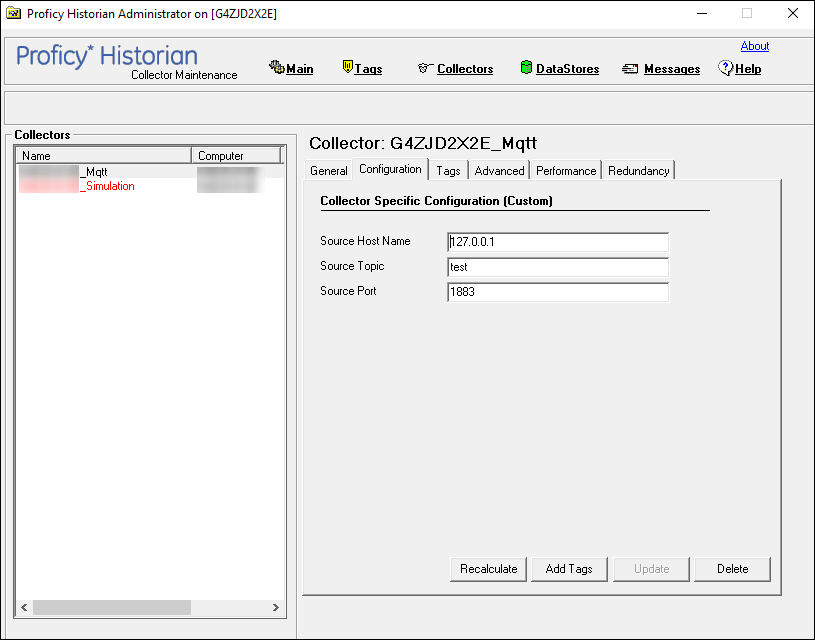

  3. Select Configuration.
    The Configuration section appears.

  4. Enter values as specified in the following table.
    Field Description
    Source Host Name The hostname of IP address of the machine on which the MQTT message broker is running.
    Source Topic The topic for which you want to get the data from the message broker.
    Source Port The port number of the machine on which the MQTT message broker is running.
  5. Select Update.
  6. Restart the collector.
    The collector is configured.
