5. $OMX_MASTER| CIMPLICITY 2022 Documentation

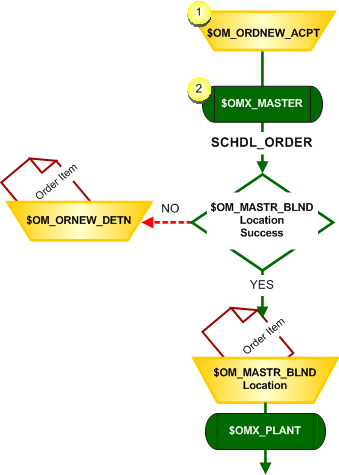

1	An order arrives in the $OM_ORDNEW_ACPT region.
2	The Routing Logic Module (function block) processes the update order.
	Decision is:
	SCHDL_ORDER	Status	Orders are scheduled in an "ideal" sequence.
		Destination	$OM_MASTR_BLND sequence process. The output logic script schedules order items for production according to their sequence attribute value, `SEQATTRIB`, by moving them to the correct location in the $OM_MASTR_BLND region.
			If the location process is successful:
			Yes	The order item continues moving toward production. Triggers $OMX_PLANT.
			No	The script moves the order item to the $OM_ORNEW_DETN region if an error is encountered. Moves to $OM_ORNEW_DETN.

1

An order arrives in the $OM_ORDNEW_ACPT region.

2

The Routing Logic Module (function block) processes the update order.

Decision is:

SCHDL_ORDER

Status

Orders are scheduled in an "ideal" sequence.

Destination

$OM_MASTR_BLND sequence process. The output logic script schedules order items for production according to their sequence attribute value, SEQATTRIB, by moving them to the correct location in the $OM_MASTR_BLND region.

If the location process is successful:

Yes

The order item continues moving toward production. Triggers $OMX_PLANT.

No

The script moves the order item to the $OM_ORNEW_DETN region if an error is encountered. Moves to $OM_ORNEW_DETN.
