Access the System Reliability Analysis for which you want to view a scenario.
In the left pane, select the System Scenario whose details you want to view.

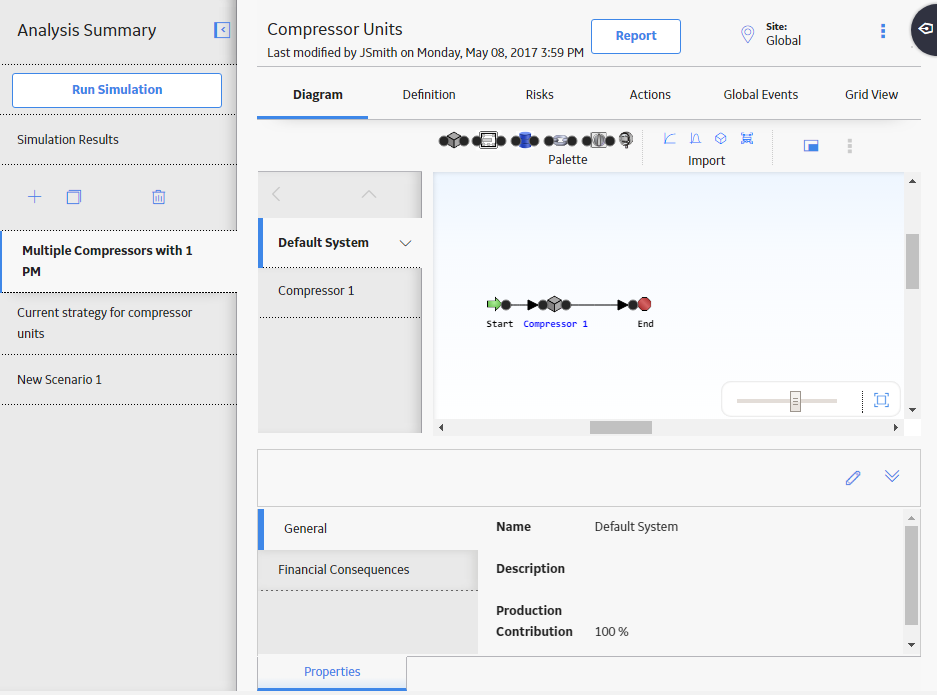

The details of the selected Scenario appear in the workspace in the following sections:
- Diagram
-
Definition: This section is displayed by default.
Note: As needed, in the Definition section, you can select
to modify the values in the available fields, and then select to save your changes. - Risks
- Actions
- Global Events
- Grid View
