User Prompts
The User Prompts column in the Build Dynamo with User Prompts dialog box, shown in the following figure, allows you to enter prompts for Dynamo properties.
These user prompts appear in the Dynamo Properties dialog box when the Dynamo is double-clicked or when the Dynamo is first copied into a new picture. This allows you to quickly modify the data source associated with the property.
For example, if you create the tank described in the Current Setting section and apply the Build Dynamo Wizard, the Build Dynamo with User Prompts dialog box appears as shown in the following figure.

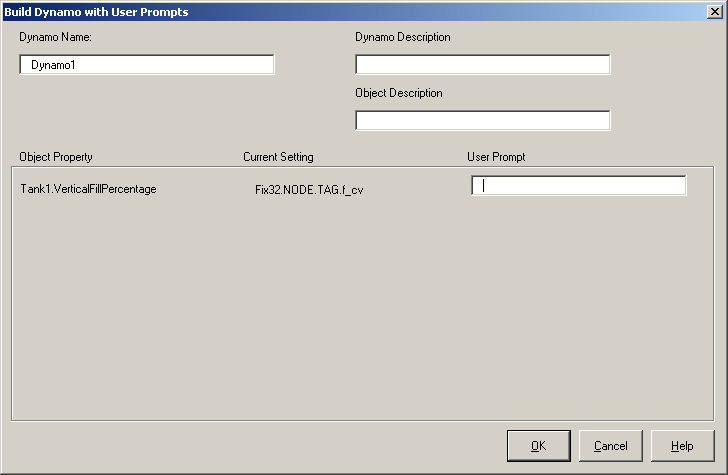

Build Dynamo with User Prompts Dialog Box - Entering User Prompts
In this example, enter Tank Fill in the User Prompt field. Tank Fill describes the property for the Dynamo. Tank Fill is more descriptive to users than RectInt.VerticalFillPercentage. The Dynamo properties display, as shown in the following figure, if the user double-clicks the Dynamo.

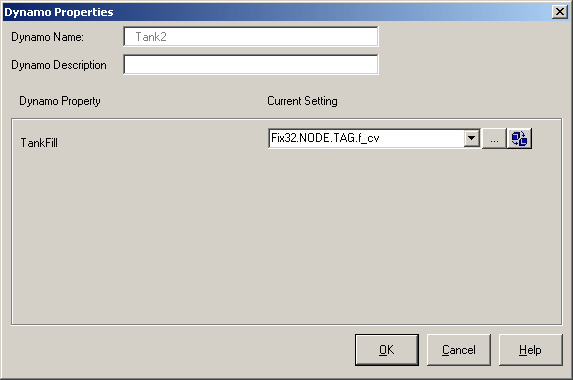

Dynamo Properties Dialog Box
