PressureWave+
GE offers a solution for effective tube cleaning for all HRSG types. PressureWave+, developed by BANG&CLEAN® Technologies AG, uses controlled pressure waves to penetrate deep into the tube bundle for a more effective and efficient cleaning.
Pressure waves penetrate deep into the module, achieving a better cleaning compared to alternative cleaning methods
Can be completed in a much shorter cycle compared to other methods, without damage to tubing
No need for scaffolding, which makes it a safer, faster, and more cost-effective solution
More than 200 PressureWave+ cleanings performed in the last 5 last years without any safety issues
Why wait for your next outage? Plan now for your summer peak operation!
Concerned about the debris? In North America we have an expert partner in waste elimination.
Discover
Compared with traditional HRSG cleaning methods, PressureWave+ provides a more effective and efficient cleaning. How?
Frequently asked questions
Yes, we performed more than 200 cleanings in the last 5 last years without any safety issues.
None of our customers have experienced either short-term or long-term damage to HRSG components such as tubes, tube-to-header welds, casing liners, expansion joint and catalysts.
Yes, EPRI recently conducted an evaluation that found “No evidence of damage to tubes or other HRSG components…observed during these tests.” You can read the abstract here: Program 218: Heat Recovery Steam Generators | Product Abstract (epri.com). In addition, The University of Zurich and Bang&Clean conducted an independent study and concluded that “…in the considered realistic load cases, a permanent deformation due to the detonation can be excluded, unless both the boiler tubes and the weld seam are already weakened by overloading or corrosion.”

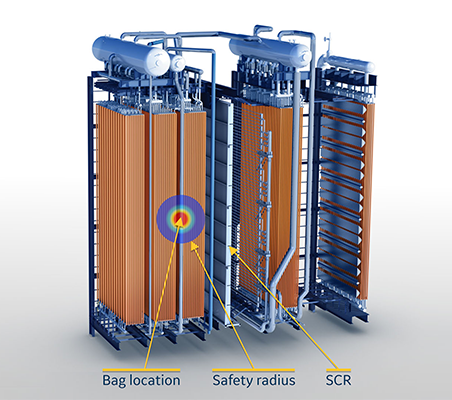

No, the PressureWave+ solution involves detonating a measured amount of gas, which is deployed inside plastic bags placed near the areas where buildup needs to be removed. We will tailor the solution to match the amount of cleaning your HRSG needs, which will involve either decreasing or increasing the cleaning force needed.
Compare for yourself
When compared to other HRSG cleaning technologies, the PressureWave+ advantages are clear. See how it stacks up to the competition.
| PressureWave+ | Standard dry-ice cleaning | Water washing | |
|---|---|---|---|
| No scaffolding required | ✓ | X | X |
| Limited confined space during operation | ✓ | X | X |
| Reduced risk of fouling emission upon startup | ✓ | X | X |
| Decreased cleaning time | ✓ | X | X |
| Depth of cleaning of at least 3' | ✓ | X | X |
| No risk to pressure parts | ✓ | ✓ | X |
"Our facility saw a 5" reduction in GT backpressure as a direct result of the GE PressureWave+ cleaning on a single HRSG, from 23" H2O down to 18" H2O. This increased plant summer output by around 5 MW total from just a single HRSG cleaning. Winter output had been limited due to the increased mass flow, and backpressure surpassing the trip limits. The cleaning allowed us to avoid a 20+ MW reduction in winter output by gaining margin to the exhaust pressure trip limit."
Mark Pelosi
Reliability Engineer, Cogentrix Energy Power Management
Further reading

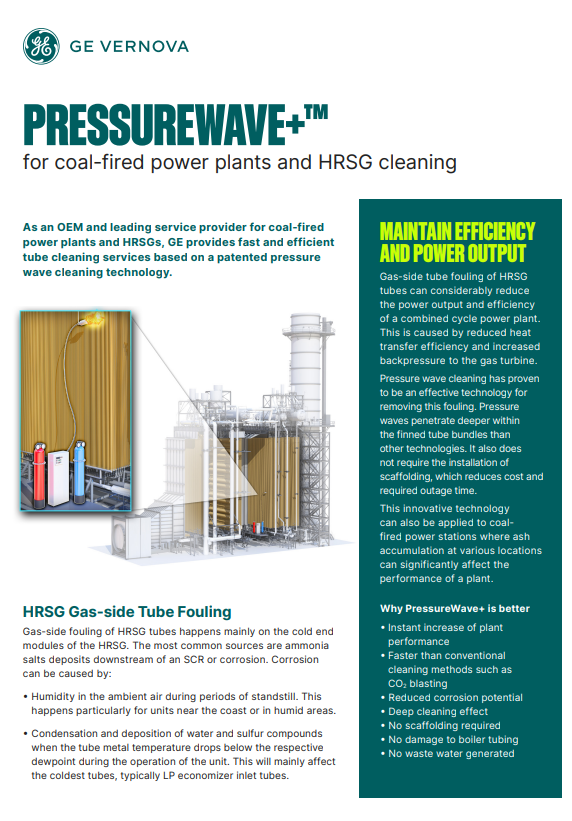

If you still have questions about PressureWave+ or you’d like to run the numbers for yourself, check out our “Top 10 PressureWave+ questions” interactive document, or try out our fuel calculator.

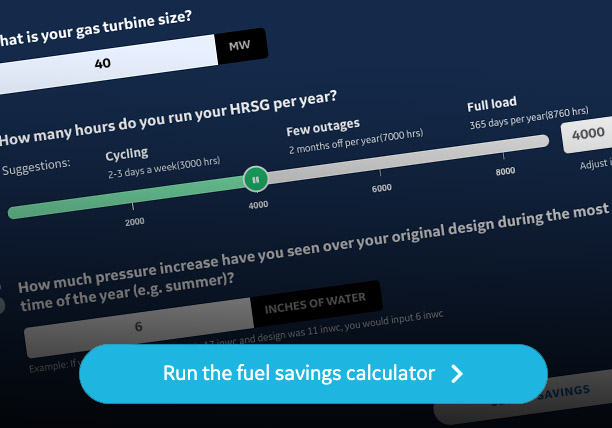

PressureWave+TM CalculatorWant to learn how much you could save with PressureWave+? Tell us a little about your power plant, and we'll do the rest.
Since we started conducting PressureWave+ cleanings, GE has removed over 795 tons of debris.

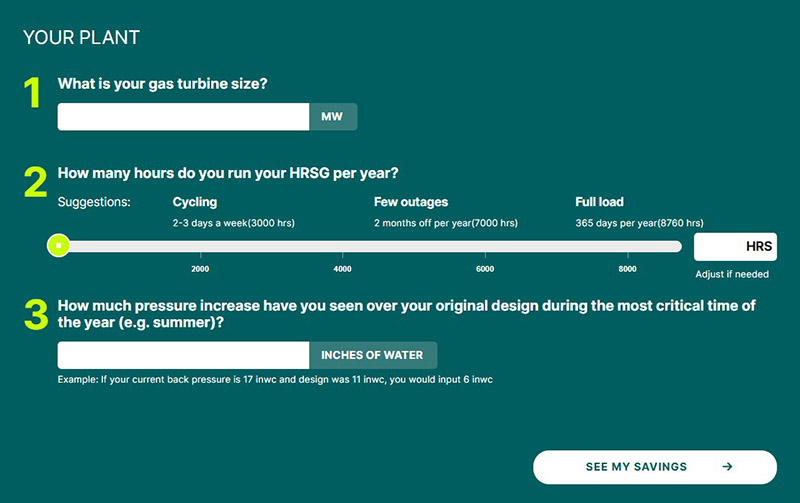

What is your gas turbine size?
How much pressure increase have you seen over your original design during the most critical time of the year (e.g. summer)?
Example: If your current back pressure is 17 inwc and design was 11 inwc, you would input 6 inwc
Choosing PressureWave+ can help you achieve more fuel savings, helping you save:
Potential savings for next year (USD)
By using PressureWave+ cleaning technology on your HRSG, you could realize an annual additional energy savings of:
MW/h PER YEAR
Featured video
Curious to see for yourself? Check out our animation of the PressureWave+ process, from start to finish.
Contact us
PressureWave+ denotes a trademark of Bang&Clean GmbH / Bang&Clean®
