up to 700 MW
STF-D600 output
up to 300 MW
STF-A650 output
up to 700 MW
STF-D650 output
Industry-leading output and efficiency
Experience and features you can count on
Our 600-Series reheat steam turbines provide industry leading efficiency, reliability, flexibility and availability for today's combined cycle applications.

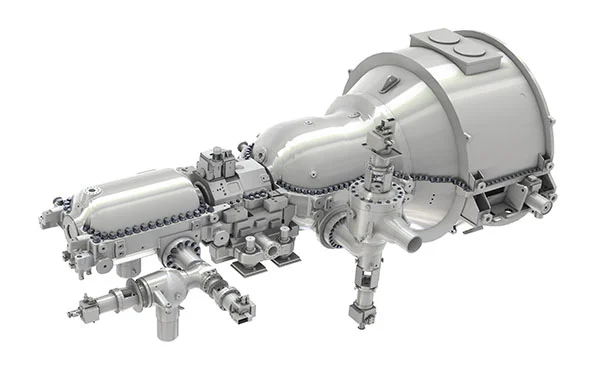

The STF-A650 steam turbine
High performance in a compact footprint.
- The STF-A650 is a two-casing reheat steam turbine with a combined IP-LP section and a separate HP section.
- Main steam inlet pressures up to 2680 psi (185 bar) with main steam inlet and reheat temperatures up to 1112°F (600°C).
- Can be applied in both single-shaft and multi-shaft configurations, with the single-shaft configuration incorporating a clutch for enhanced operational flexibility.
- Features fully assembled HP and IP/LP sections, enabling installation in as little as five months.
- GE Vernova’s proven shrink ring design applied to the HP section reduces distortion, allowing critical clearances to be maintained and sustaining performance over the life of the machine.

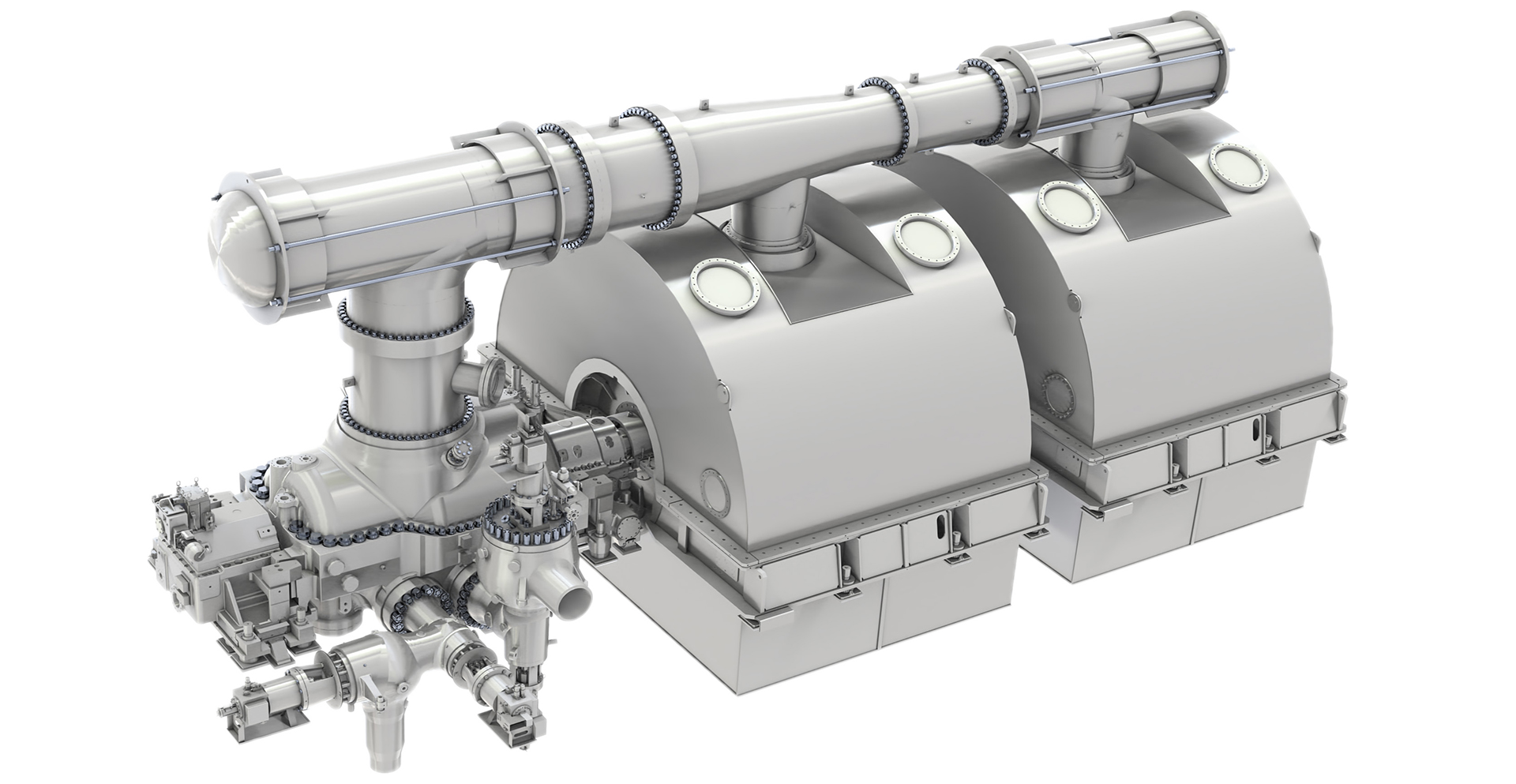

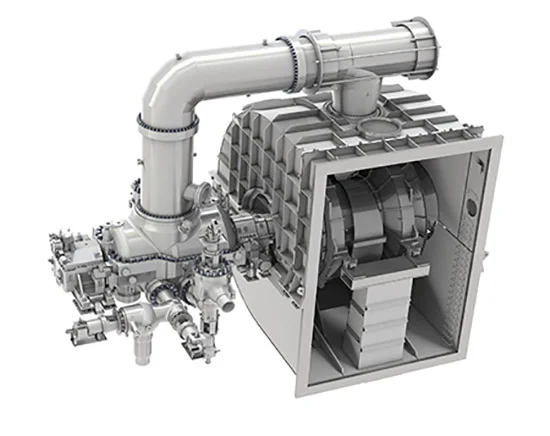

The STF-D600 steam turbine
GE Vernova’s STF-D600 steam turbines primarily support H-class and F-class gas turbine combined-cycle plants.
- The STF-D600 consists of a combined HP/IP section with either one or two dual flow LP sections.
- Main steam inlet pressures up to 2611 psi (180bar) with main steam inlet and reheat temperatures up to 1112°F (600°C).
- Single bearing design reduces construction time, increases power density and enhances reliability by avoiding load shifts.
- Available with side- or down-flow LP exhaust to provide plant layout flexibility.
- HP/IP Section and valves are shipped fully assembled
- Developed to deliver highly efficient power generation for single-shaft or multi-shaft plants and for sites with relatively low condenser pressure.
- Self-synchronizing clutch reduces startup auxiliary steam demand, enabling industry-leading total plant startup times.
- Side LP exhaust enables ground-level condenser connections and reduced plant height reducing overall plant cost.

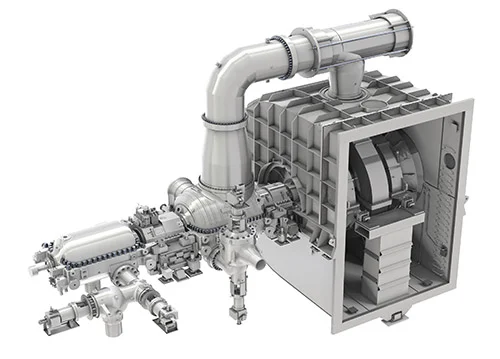

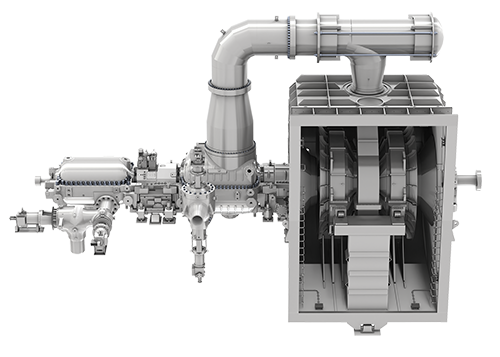

STF-D650
GE Vernova’s STF-D650 combined-cycle steam turbine delivers the reliability and availability needed in today’s demanding energy environment.
- The STF-D650 turbine consists of separate HP, IP, and a two flow LP Section.
- Single bearing design reduces construction time, increases power density and enhances reliability by avoiding load shifts.
- HP, IP, and valves are shipped fully assembled.
- Self-synchronizing clutch reduces startup auxiliary steam demand, enabling the gas turbine to reach 85 percent load in less than 20 minutes under hot start conditions.
- Available with side- or down-flow LP exhaust provides plant layout flexibility.
- Side LP exhaust enables ground-level condenser connections and reduced plant height reducing overall plant cost.
- The STF-D650 HP section uses GE Vernova’s proven shrink ring design reducing distortion, allowing critical clearances to be maintained and sustaining performance over the life of the machine.
Specifications
STF-A650, STF-D600 & STF-D650 steam turbines
| Technical specifications | STF-A650 | STF-D600 | STF-D650 |
|---|---|---|---|
| Main steam | Up to 2680 psi (185 bar) Up to 1112°F (600°C) |
Up to 2611 psi (180bar) Up to 1112°F (600°C) |
Up to 3191 psig (220 bar) Up to 1112°F (600°C) |
| Reheat temperature | Up to 1112°F (600°C) | Up to 1,112°F (600°C) | Up to 1148°F (620°C) |
| Frequency | 50 Hz and 60 Hz | 50 Hz and 60 Hz | 50 Hz and 60 Hz |
| Output | 85 MW - 300 MW | 180 MW - 700 MW | 150 MW - 700 MW |
